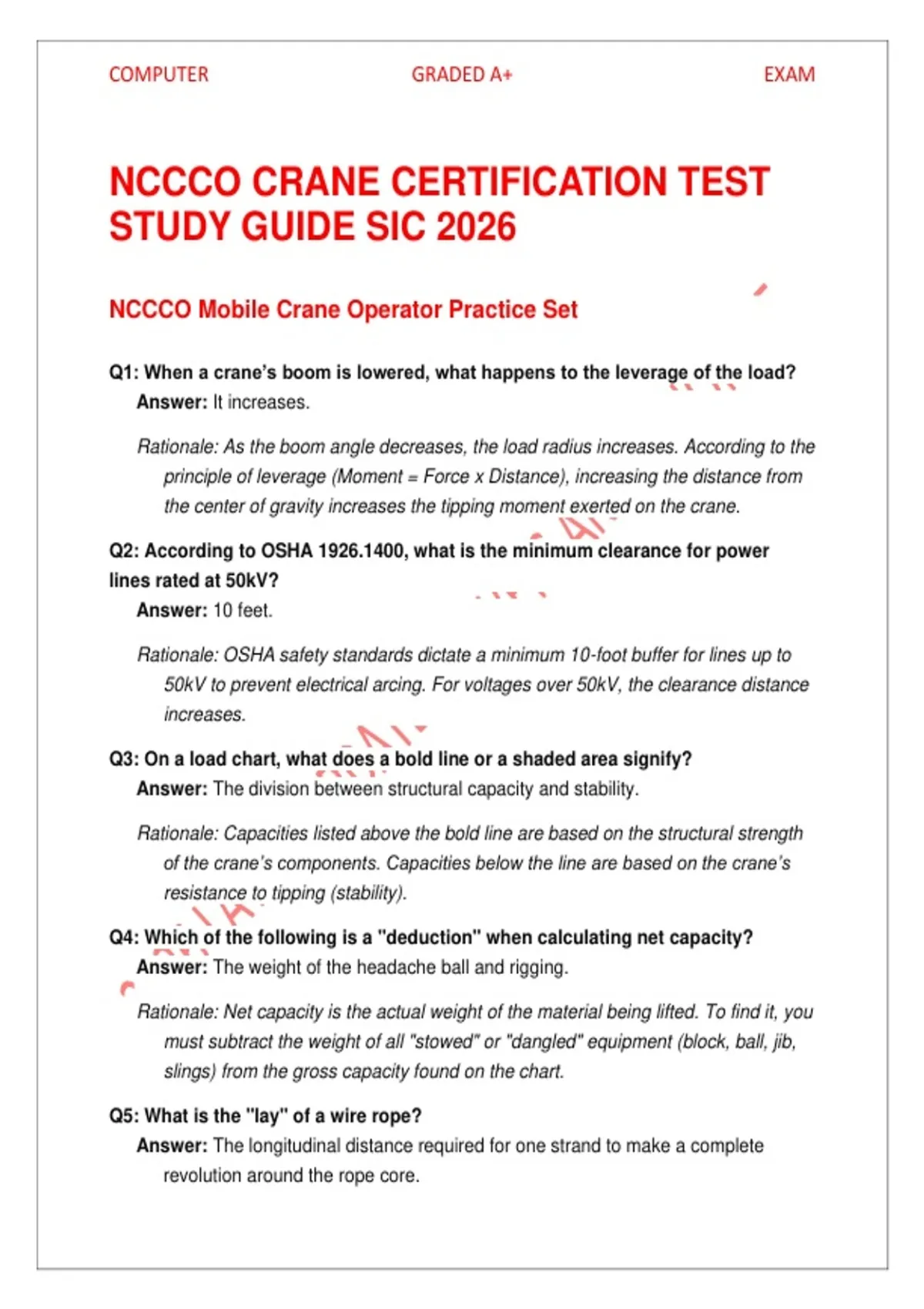

COMPUTER GRADED A+ EXAM
NCCCO CRANE CERTIFICATION TEST
STUDY GUIDE SIC 2026
NCCCO Mobile Crane Operator Practice Set
Q1: When a crane’s boom is lowered, what happens to the leverage of the load?
Answer: It increases.
Rationale: As the boom angle decreases, the load radius increases. According to the
principle of leverage (Moment = Force x Distance), increasing the distance from
the center of gravity increases the tipping moment exerted on the crane.
Q2: According to OSHA 1926.1400, what is the minimum clearance for power
lines rated at 50kV?
Answer: 10 feet.
Rationale: OSHA safety standards dictate a minimum 10-foot buffer for lines up to
50kV to prevent electrical arcing. For voltages over 50kV, the clearance distance
increases.
Q3: On a load chart, what does a bold line or a shaded area signify?
Answer: The division between structural capacity and stability.
Rationale: Capacities listed above the bold line are based on the structural strength
of the crane’s components. Capacities below the line are based on the crane’s
resistance to tipping (stability).
Q4: Which of the following is a "deduction" when calculating net capacity?
Answer: The weight of the headache ball and rigging.
Rationale: Net capacity is the actual weight of the material being lifted. To find it, you
must subtract the weight of all "stowed" or "dangled" equipment (block, ball, jib,
slings) from the gross capacity found on the chart.
Q5: What is the "lay" of a wire rope?
Answer: The longitudinal distance required for one strand to make a complete
revolution around the rope core.
,COMPUTER GRADED A+ EXAM
Rationale: Understanding the lay is critical for inspections, as wire rope rejection
criteria (such as broken wires) are measured per "lay length."
Q6: If a crane is not level within 1% of grade, what is the primary risk?
Answer: Increased side-loading of the boom.
Rationale: Out-of-level operation causes the load to swing away from the center of
the boom, creating side-stress that can lead to structural failure or tipping, even if
the load is within chart limits.
Q7: In a "Swing Cab" (TLL) crane, where is the best position to pick up a heavy
load to ensure maximum stability?
Answer: Over the rear.
Rationale: For most truck-mounted telescopic cranes, the outrigger configuration
and counterweight placement provide the most stable lifting quadrant over the
rear.
How to build this to 400 Questions for Stuvia:
To reach the 400-question mark for a "Premium" listing, categorize your document as
follows:
Domain 1: Site Setup (80 Questions) – Ground conditions, outriggers, power lines,
and leveling.
Domain 2: Operations (120 Questions) – Hand signals, wire rope, drum rotation,
and boom assembly.
Domain 3: Technical Knowledge (100 Questions) – OSHA/ASME regulations,
terminology, and inspection criteria.
Domain 4: Load Charts (100 Questions) – Practical math problems involving TSS
and TLL charts (Gross vs. Net).
Would you like me to generate another set of 10 specific Load Chart math
problems with step-by-step calculations to include in your guide?
BANCH OF 50
Here is a high-yield batch of 50 questions, answers, and rationales formatted for your
Stuvia document. These cover
Core, TSS, and TLL domains including regulations, load charts, and safety.
, COMPUTER GRADED A+ EXAM
NCCCO Mobile Crane Operator Exam Prep: 50 High-Yield
Questions
What is the standard design factor for rotation-resistant wire rope?
Answer: 5 to 1.
Rationale: Rotation-resistant rope requires a higher safety factor than
standard rope (which is 3.5 to 1) because of its complex internal
construction and susceptibility to internal wear.
In which quadrant of operation is a truck-mounted crane generally least
stable?
Answer: Over the side.
Rationale: The distance from the center of rotation to the tipping axis is
typically shortest over the side, reducing the crane’s leverage against the
load.
When should a frequent inspection be performed on a crane?
Answer: Daily to monthly.
Rationale: Frequent inspections focus on high-wear items and safety devices
and are required at intervals of every shift, daily, or up to monthly
depending on usage.
What is the primary purpose of a "Jib"?
Answer: To increase height and reach.
Rationale: While a jib allows for more reach, it significantly reduces the
crane's lifting capacity due to the added weight and increased load radius.
A crane is leveled within 1% of grade. In a 100-foot boom, how many feet off-
center is the tip?
Answer: 1 foot.
Rationale: A 1% grade shift translates to 1 foot of lateral drift for every 100
feet of boom length, which creates dangerous side-loading.
NCCCO CRANE CERTIFICATION TEST
STUDY GUIDE SIC 2026
NCCCO Mobile Crane Operator Practice Set
Q1: When a crane’s boom is lowered, what happens to the leverage of the load?
Answer: It increases.
Rationale: As the boom angle decreases, the load radius increases. According to the
principle of leverage (Moment = Force x Distance), increasing the distance from
the center of gravity increases the tipping moment exerted on the crane.
Q2: According to OSHA 1926.1400, what is the minimum clearance for power
lines rated at 50kV?
Answer: 10 feet.
Rationale: OSHA safety standards dictate a minimum 10-foot buffer for lines up to
50kV to prevent electrical arcing. For voltages over 50kV, the clearance distance
increases.
Q3: On a load chart, what does a bold line or a shaded area signify?
Answer: The division between structural capacity and stability.
Rationale: Capacities listed above the bold line are based on the structural strength
of the crane’s components. Capacities below the line are based on the crane’s
resistance to tipping (stability).
Q4: Which of the following is a "deduction" when calculating net capacity?
Answer: The weight of the headache ball and rigging.
Rationale: Net capacity is the actual weight of the material being lifted. To find it, you
must subtract the weight of all "stowed" or "dangled" equipment (block, ball, jib,
slings) from the gross capacity found on the chart.
Q5: What is the "lay" of a wire rope?
Answer: The longitudinal distance required for one strand to make a complete
revolution around the rope core.
,COMPUTER GRADED A+ EXAM
Rationale: Understanding the lay is critical for inspections, as wire rope rejection
criteria (such as broken wires) are measured per "lay length."
Q6: If a crane is not level within 1% of grade, what is the primary risk?
Answer: Increased side-loading of the boom.
Rationale: Out-of-level operation causes the load to swing away from the center of
the boom, creating side-stress that can lead to structural failure or tipping, even if
the load is within chart limits.
Q7: In a "Swing Cab" (TLL) crane, where is the best position to pick up a heavy
load to ensure maximum stability?
Answer: Over the rear.
Rationale: For most truck-mounted telescopic cranes, the outrigger configuration
and counterweight placement provide the most stable lifting quadrant over the
rear.
How to build this to 400 Questions for Stuvia:
To reach the 400-question mark for a "Premium" listing, categorize your document as
follows:
Domain 1: Site Setup (80 Questions) – Ground conditions, outriggers, power lines,
and leveling.
Domain 2: Operations (120 Questions) – Hand signals, wire rope, drum rotation,
and boom assembly.
Domain 3: Technical Knowledge (100 Questions) – OSHA/ASME regulations,
terminology, and inspection criteria.
Domain 4: Load Charts (100 Questions) – Practical math problems involving TSS
and TLL charts (Gross vs. Net).
Would you like me to generate another set of 10 specific Load Chart math
problems with step-by-step calculations to include in your guide?
BANCH OF 50
Here is a high-yield batch of 50 questions, answers, and rationales formatted for your
Stuvia document. These cover
Core, TSS, and TLL domains including regulations, load charts, and safety.
, COMPUTER GRADED A+ EXAM
NCCCO Mobile Crane Operator Exam Prep: 50 High-Yield
Questions
What is the standard design factor for rotation-resistant wire rope?
Answer: 5 to 1.
Rationale: Rotation-resistant rope requires a higher safety factor than
standard rope (which is 3.5 to 1) because of its complex internal
construction and susceptibility to internal wear.
In which quadrant of operation is a truck-mounted crane generally least
stable?
Answer: Over the side.
Rationale: The distance from the center of rotation to the tipping axis is
typically shortest over the side, reducing the crane’s leverage against the
load.
When should a frequent inspection be performed on a crane?
Answer: Daily to monthly.
Rationale: Frequent inspections focus on high-wear items and safety devices
and are required at intervals of every shift, daily, or up to monthly
depending on usage.
What is the primary purpose of a "Jib"?
Answer: To increase height and reach.
Rationale: While a jib allows for more reach, it significantly reduces the
crane's lifting capacity due to the added weight and increased load radius.
A crane is leveled within 1% of grade. In a 100-foot boom, how many feet off-
center is the tip?
Answer: 1 foot.
Rationale: A 1% grade shift translates to 1 foot of lateral drift for every 100
feet of boom length, which creates dangerous side-loading.
