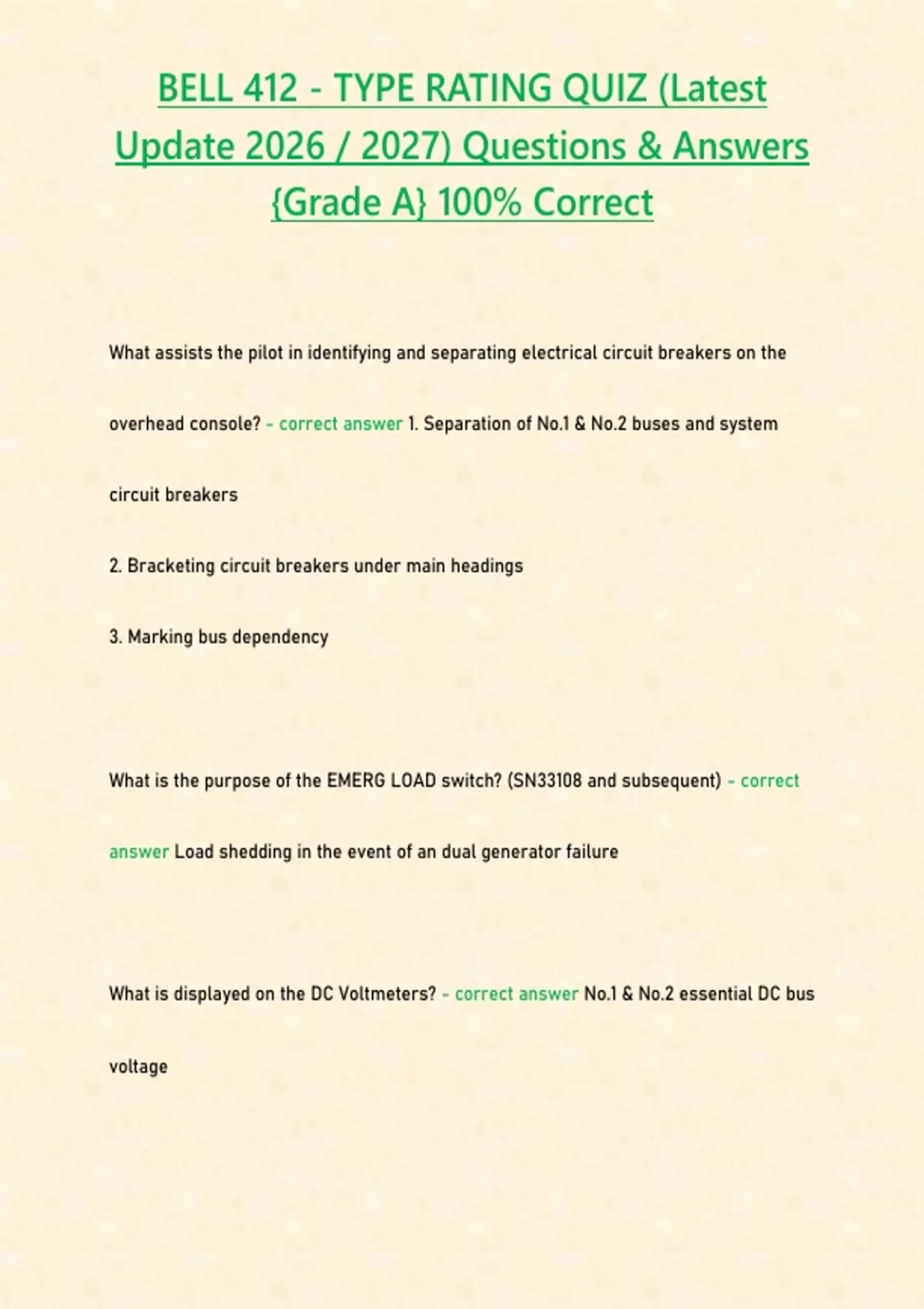

BELL 412 - TYPE RATING QUIZ (Latest
Update ) Questions & Answers
{Grade A} 100% Correct
What assists the pilot in identifying and separating electrical circuit breakers on the
overhead console? - correct answer 1. Separation of No.1 & No.2 buses and system
circuit breakers
2. Bracketing circuit breakers under main headings
3. Marking bus dependency
What is the purpose of the EMERG LOAD switch? (SN33108 and subsequent) - correct
answer Load shedding in the event of an dual generator failure
What is displayed on the DC Voltmeters? - correct answer No.1 & No.2 essential DC bus
voltage
,What does the dual ammeter indicate? - correct answer Amperage load on each
generator
When will the nonessential bus be automatically powered? - correct answer Only
when both generators are on line
When starting both engines using external power, which Battery Bus switches must be
on? - correct answer Both... the No.1 & No.2 Battery Bus switches
What does the illumination of the EXTERNAL POWER caution panel light indicate? -
correct answer The external power door is open
Below what battery voltage is the use of external power recommended in the
checklist? - correct answer 20 Volts
,What is the minimum recommender N1 rpm to be attained before turning a generator
on? - correct answer 71% N1
What does the illumination of the DC GENERATOR caution panel light indicate? -
correct answer The generator relay is open and the generator is not online.
What does the illumination of the a GENERATOR OVHT caution panel light indicate? -
correct answer The generator cooling air is too hot.
What is the source of AC electrical power on the Bell 412? - correct answer Two solid
state inverters powered by the airframe DC power
Which AC electrical buses are lost if one inverter fails - correct answer No AC bus will
be lost.
, How are the No.1 and No.2 hydraulic pumps driven? - correct answer Mechanically by
the main transmission
How is the hydraulic electrical solenoid valve controlled? - correct answer By the
associated HYD SYS switch on the center pedestal and the other systems pressure
switch
How does the loss of pressure in one hydraulic system affect the other hydraulic
system on Bell 412? - correct answer The remaining system can not be switched off.
How may the pilot check if any of the hydraulic filters are clogged? - correct answer
Check the remote indicator in the pilots chin bubble.
What is the approximate hydraulic fluid operating temperature difference between the
No.1 and No.2 system? - correct answer No.2 system operates approx. 15 degree hotter
