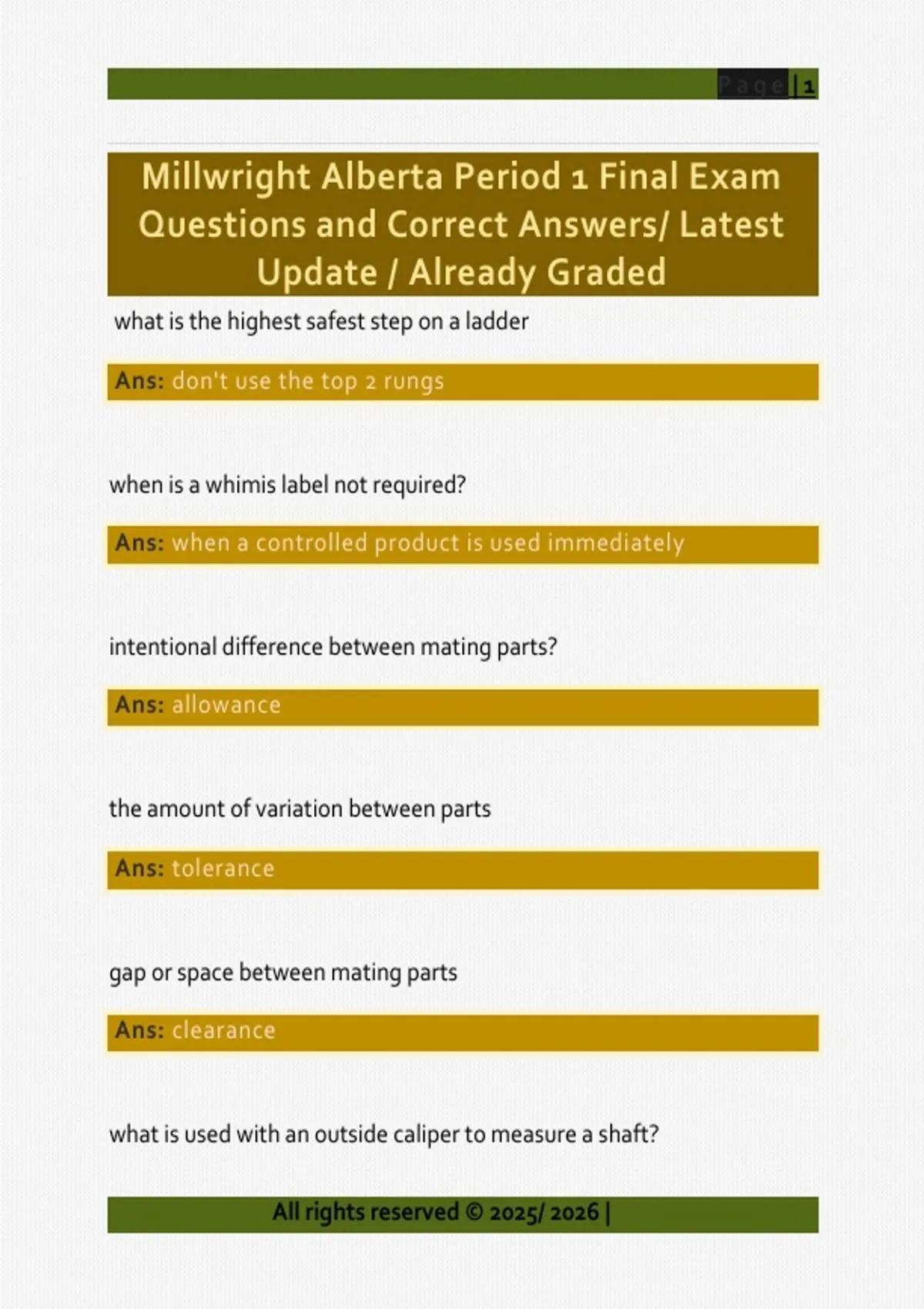

Millwright Alberta Period 1 Final Exam
Questions and Correct Answers/ Latest
Update / Already Graded
what is the highest safest step on a ladder
Ans: don't use the top 2 rungs
when is a whimis label not required?
Ans: when a controlled product is used immediately
intentional difference between mating parts?
Ans: allowance
the amount of variation between parts
Ans: tolerance
gap or space between mating parts
Ans: clearance
what is used with an outside caliper to measure a shaft?
All rights reserved © 2025/ 2026 |
, Page |2
Ans: a steel rule
vernier caliper smallest measurement?
Ans: one thou if an inch 0.001" or 0.20mm
parallel misalignment + angular misalignment
Ans: combination misalignment
how to measure a small hole?
Ans: small hole gauge and outside micrometer
Reading a Vernier bevel protractor in what ?
Ans: main scale is degrees and vernier scale is minutes
indicates every 5 minutes = 1/12 of a degree
What has to be aligned during machine installation
Ans: Centerlines
what's a datum line
All rights reserved © 2025/ 2026 |
, Page |3
Ans: standard of comparison or point of reference
most important point prior to a layout is
Ans: reference line/datum line
smallest dimension on a steel rule
Ans: 1/64th
accuracy of a vernier caliper
Ans: 0.01mm or 0.001" (one thou)
What do you use to set the axis of the threading tool at a right angle to
the axis of the workpiece?
Ans: thread centre gauge (fishtail)
sensitive tool that is used to measure the depth of small holes and
bores?
Ans: depth micrometer (scale runs opposite to most
micrometers)
All rights reserved © 2025/ 2026 |
, Page |4
smallest measurement on a vernier metric micrometer
Ans: 0.001 mm
Type of wrench used on a polished or smooth surface?
Ans: Strap Wrench
Puller used for removing Bearing?
Ans: Pressure Screw Puller
4 types of Pullers?
Ans: pressure screw puller
Hydraulic puller
Slide hammer puller
Bar-style puller
What is a ball peen hammer used for?
Ans: Riveting
# teeth on a hacksaw for cutting a 1" aluminum shaft?
All rights reserved © 2025/ 2026 |
