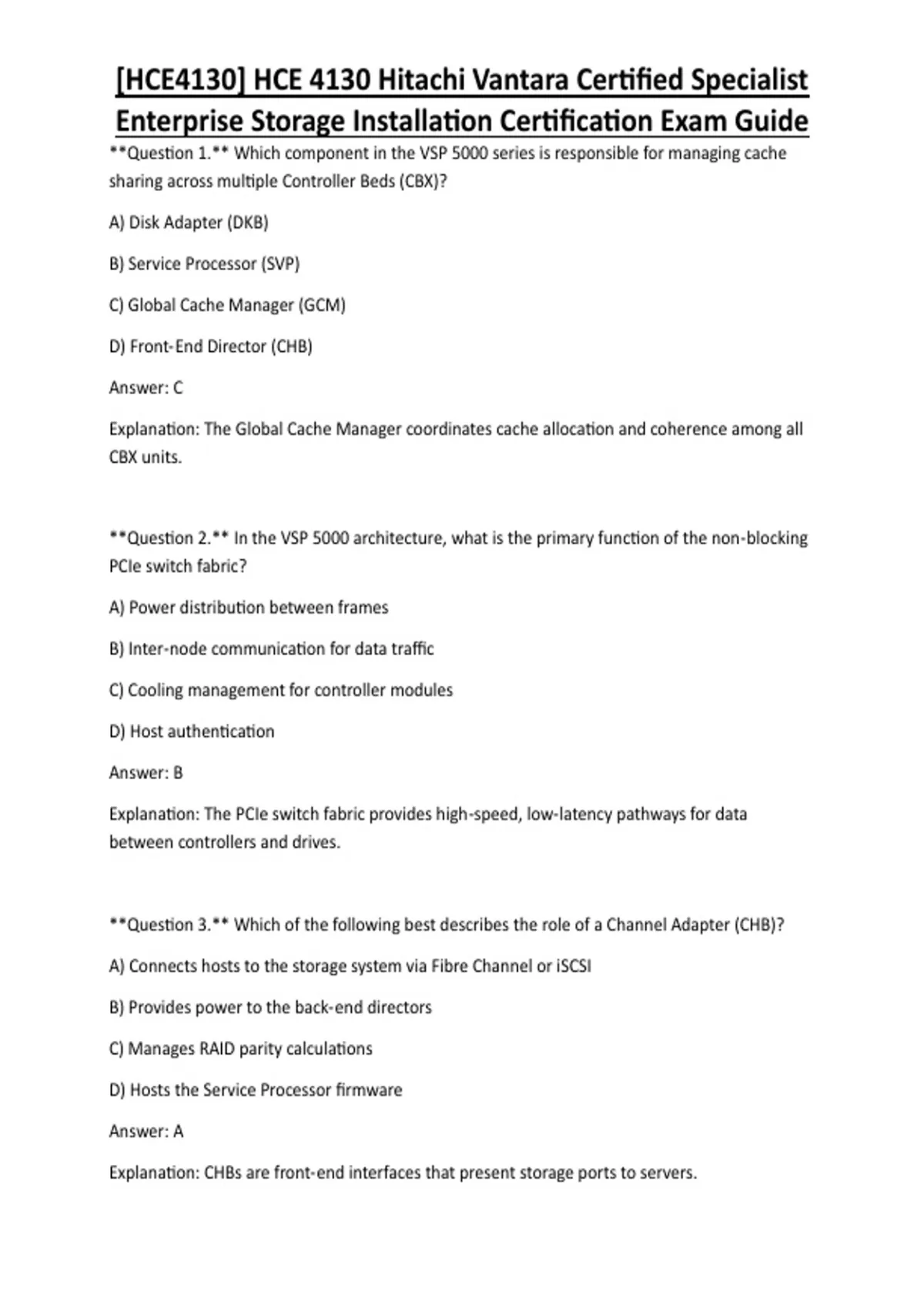

[HCE4130] HCE 4130 Hitachi Vantara Certified Specialist
Enterprise Storage Installation Certification Exam Guide
**Question 1.** Which component in the VSP 5000 series is responsible for managing cache
sharing across multiple Controller Beds (CBX)?
A) Disk Adapter (DKB)
B) Service Processor (SVP)
C) Global Cache Manager (GCM)
D) Front‑End Director (CHB)
Answer: C
Explanation: The Global Cache Manager coordinates cache allocation and coherence among all
CBX units.
**Question 2.** In the VSP 5000 architecture, what is the primary function of the non‑blocking
PCIe switch fabric?
A) Power distribution between frames
B) Inter‑node communication for data traffic
C) Cooling management for controller modules
D) Host authentication
Answer: B
Explanation: The PCIe switch fabric provides high‑speed, low‑latency pathways for data
between controllers and drives.
**Question 3.** Which of the following best describes the role of a Channel Adapter (CHB)?
A) Connects hosts to the storage system via Fibre Channel or iSCSI
B) Provides power to the back‑end directors
C) Manages RAID parity calculations
D) Hosts the Service Processor firmware
Answer: A
Explanation: CHBs are front‑end interfaces that present storage ports to servers.
,[HCE4130] HCE 4130 Hitachi Vantara Certified Specialist
Enterprise Storage Installation Certification Exam Guide
**Question 4.** Redundancy configured as “N+1” for power supplies means:
A) Two power supplies for every controller
B) One extra power supply beyond the number required for operation
C) No redundancy, only a single supply per module
D) Two full sets of power supplies in parallel
Answer: B
Explanation: N+1 provides one spare unit to tolerate a single failure.
**Question 5.** The Service Processor (SVP) primarily handles:
A) Data path I/O processing
B) Management traffic and system health monitoring
C) RAID group creation
D) Direct host data transfers
Answer: B
Explanation: SVP runs the management OS, handling configuration, monitoring, and remote
support communication.
**Question 6.** When planning floor loading for a fully populated VSP 5000 frame, which
specification is most critical?
A) Cable length limits
B) Minimum clearance of 4 inches from walls
C) Maximum floor load of 800 kg per rack unit
D) Required seismic tie‑down anchors
Answer: C
,[HCE4130] HCE 4130 Hitachi Vantara Certified Specialist
Enterprise Storage Installation Certification Exam Guide
Explanation: The frame’s weight must not exceed the floor’s structural rating, typically
expressed in kg per rack unit.
**Question 7.** Which power distribution component ensures balanced phase loading across
the VSP 5000 system?
A) Redundant Power Supply Module (RPSM)
B) Power Distribution Unit (PDU) with phase‑balanced output
C) Service Processor power rail
D) Front‑End Director power bus
Answer: B
Explanation: A PDU with phase‑balanced outputs distributes load evenly across three phases.
**Question 8.** The recommended airflow direction for VSP 5000 thermal management is:
A) Bottom‑to‑top
B) Front‑to‑back
C) Side‑to‑side
D) Top‑to‑bottom
Answer: B
Explanation: Front‑to‑back airflow moves cool air over components and exhausts hot air
rearward.
**Question 9.** The “Pre‑Installation T‑sheet” is used to record all of the following EXCEPT:
A) Host WWNs
B) Firmware version of each drive
C) IP addresses for management interfaces
D) Gateway information for remote access
, [HCE4130] HCE 4130 Hitachi Vantara Certified Specialist
Enterprise Storage Installation Certification Exam Guide
Answer: B
Explanation: The T‑sheet captures network and identification data, not individual drive firmware
levels.
**Question 10.** When interconnecting multiple VSP 5000 frames, the primary mechanical
concern is:
A) Matching firmware versions
B) Aligning optical cable connectors
C) Ensuring structural integrity of the joint brackets
D) Configuring VLANs for inter‑frame traffic
Answer: C
Explanation: Physical frame joints must be securely bolted to maintain rigidity.
**Question 11.** Which cable type must observe a minimum bend radius of 5 mm when
routed inside a VSP 5000 frame?
A. Standard copper Ethernet
B. 12 Gbps Fibre Channel optical cable
C. Power distribution cable
D. Serial console cable
Answer: B
Explanation: High‑speed optical cables are sensitive to tight bends and require a larger radius.
**Question 12.** When installing NVMe Flash Modules (FMDs), the recommended distribution
rule is:
A) All FMDs in a single DKB for maximum density
B) Evenly spread across all DKBs to balance I/O
C) Place only in the primary controller slot
Enterprise Storage Installation Certification Exam Guide
**Question 1.** Which component in the VSP 5000 series is responsible for managing cache
sharing across multiple Controller Beds (CBX)?
A) Disk Adapter (DKB)
B) Service Processor (SVP)
C) Global Cache Manager (GCM)
D) Front‑End Director (CHB)
Answer: C
Explanation: The Global Cache Manager coordinates cache allocation and coherence among all
CBX units.
**Question 2.** In the VSP 5000 architecture, what is the primary function of the non‑blocking
PCIe switch fabric?
A) Power distribution between frames
B) Inter‑node communication for data traffic
C) Cooling management for controller modules
D) Host authentication
Answer: B
Explanation: The PCIe switch fabric provides high‑speed, low‑latency pathways for data
between controllers and drives.
**Question 3.** Which of the following best describes the role of a Channel Adapter (CHB)?
A) Connects hosts to the storage system via Fibre Channel or iSCSI
B) Provides power to the back‑end directors
C) Manages RAID parity calculations
D) Hosts the Service Processor firmware
Answer: A
Explanation: CHBs are front‑end interfaces that present storage ports to servers.
,[HCE4130] HCE 4130 Hitachi Vantara Certified Specialist
Enterprise Storage Installation Certification Exam Guide
**Question 4.** Redundancy configured as “N+1” for power supplies means:
A) Two power supplies for every controller
B) One extra power supply beyond the number required for operation
C) No redundancy, only a single supply per module
D) Two full sets of power supplies in parallel
Answer: B
Explanation: N+1 provides one spare unit to tolerate a single failure.
**Question 5.** The Service Processor (SVP) primarily handles:
A) Data path I/O processing
B) Management traffic and system health monitoring
C) RAID group creation
D) Direct host data transfers
Answer: B
Explanation: SVP runs the management OS, handling configuration, monitoring, and remote
support communication.
**Question 6.** When planning floor loading for a fully populated VSP 5000 frame, which
specification is most critical?
A) Cable length limits
B) Minimum clearance of 4 inches from walls
C) Maximum floor load of 800 kg per rack unit
D) Required seismic tie‑down anchors
Answer: C
,[HCE4130] HCE 4130 Hitachi Vantara Certified Specialist
Enterprise Storage Installation Certification Exam Guide
Explanation: The frame’s weight must not exceed the floor’s structural rating, typically
expressed in kg per rack unit.
**Question 7.** Which power distribution component ensures balanced phase loading across
the VSP 5000 system?
A) Redundant Power Supply Module (RPSM)
B) Power Distribution Unit (PDU) with phase‑balanced output
C) Service Processor power rail
D) Front‑End Director power bus
Answer: B
Explanation: A PDU with phase‑balanced outputs distributes load evenly across three phases.
**Question 8.** The recommended airflow direction for VSP 5000 thermal management is:
A) Bottom‑to‑top
B) Front‑to‑back
C) Side‑to‑side
D) Top‑to‑bottom
Answer: B
Explanation: Front‑to‑back airflow moves cool air over components and exhausts hot air
rearward.
**Question 9.** The “Pre‑Installation T‑sheet” is used to record all of the following EXCEPT:
A) Host WWNs
B) Firmware version of each drive
C) IP addresses for management interfaces
D) Gateway information for remote access
, [HCE4130] HCE 4130 Hitachi Vantara Certified Specialist
Enterprise Storage Installation Certification Exam Guide
Answer: B
Explanation: The T‑sheet captures network and identification data, not individual drive firmware
levels.
**Question 10.** When interconnecting multiple VSP 5000 frames, the primary mechanical
concern is:
A) Matching firmware versions
B) Aligning optical cable connectors
C) Ensuring structural integrity of the joint brackets
D) Configuring VLANs for inter‑frame traffic
Answer: C
Explanation: Physical frame joints must be securely bolted to maintain rigidity.
**Question 11.** Which cable type must observe a minimum bend radius of 5 mm when
routed inside a VSP 5000 frame?
A. Standard copper Ethernet
B. 12 Gbps Fibre Channel optical cable
C. Power distribution cable
D. Serial console cable
Answer: B
Explanation: High‑speed optical cables are sensitive to tight bends and require a larger radius.
**Question 12.** When installing NVMe Flash Modules (FMDs), the recommended distribution
rule is:
A) All FMDs in a single DKB for maximum density
B) Evenly spread across all DKBs to balance I/O
C) Place only in the primary controller slot
