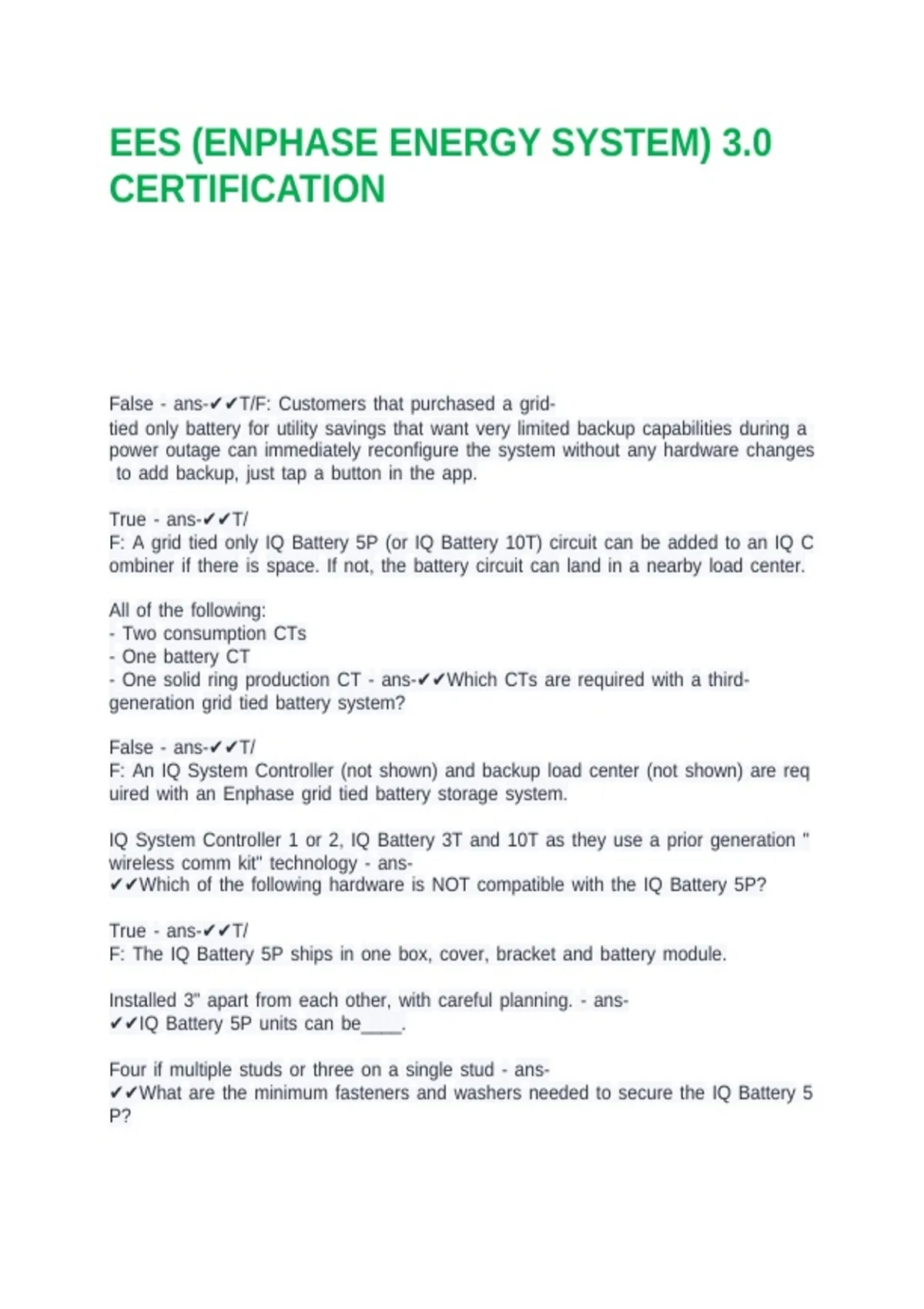

EES (ENPHASE ENERGY SYSTEM) 3.0 CERTIFICATION

EES (ENPHASE ENERGY SYSTEM) 3.0
CERTIFICATION




False=-=ans-✔✔T/F:=Customers=that=purchased=a=grid-
tied=only=battery=for=utility=savings=that=want=very=limited=backup=capabilities=during=a=
power=outage=can=immediately=reconfigure=the=system=without=any=hardware=changes
=to=add=backup,=just=tap=a=button=in=the=app.


True=-=ans-✔✔T/
F:=A=grid=tied=only=IQ=Battery=5P=(or=IQ=Battery=10T)=circuit=can=be=added=to=an=IQ=C
ombiner=if=there=is=space.=If=not,=the=battery=circuit=can=land=in=a=nearby=load=center.

All=of=the=following:
-=Two=consumption=CTs
-=One=battery=CT
-=One=solid=ring=production=CT=-=ans-✔✔Which=CTs=are=required=with=a=third-
generation=grid=tied=battery=system?

False=-=ans-✔✔T/
F:=An=IQ=System=Controller=(not=shown)=and=backup=load=center=(not=shown)=are=req
uired=with=an=Enphase=grid=tied=battery=storage=system.

IQ=System=Controller=1=or=2,=IQ=Battery=3T=and=10T=as=they=use=a=prior=generation="
wireless=comm=kit"=technology=-=ans-
✔✔Which=of=the=following=hardware=is=NOT=compatible=with=the=IQ=Battery=5P?

True=-=ans-✔✔T/
F:=The=IQ=Battery=5P=ships=in=one=box,=cover,=bracket=and=battery=module.

Installed=3"=apart=from=each=other,=with=careful=planning.=-=ans-
✔✔IQ=Battery=5P=units=can=be____.

Four=if=multiple=studs=or=three=on=a=single=stud=-=ans-
✔✔What=are=the=minimum=fasteners=and=washers=needed=to=secure=the=IQ=Battery=5
P?

, False=-=ans-✔✔T/
F:=It=is=necessary=to=attach=the=upper="top=shield"=to=the=bottom=mounting=bracket=bef
ore=attaching=them=to=the=wall=to=avoid=interference.

Left=or=right=sides=1/2"=to=1-1/4"=and=rear=left=or=rear=right=1/2"=to=3/4"=-=ans-
✔✔What=are=the=conduit=entry=options=with=IQ=Battery=5P=units?

All=of=the=following:
-=Mounting=anchor=clips=are=recommended=for=all=sites
-=Anchor=clips=are=provided=to=ensure=maximum=stability=&=customer=satisfaction
-=Mounting=anchor=clips=snug=the=battery=to=the=wall=&=reduce=battery=movement
-=May=improve=plumb=and=level=alignment=for=a=nice=appearance=-=ans-
✔✔Which=of=the=following=statements=regarding=the=IQ=Battery=5P=mounting=clips=is=t
he=correct=option?

False=-=ans-✔✔T/
F:=It=is=okay=to=push=on=microinverters=when=installing=mounting=anchor=clips.

True=-=ans-✔✔T/
F:=When=installing=mounting=anchor=clips=for=the=top=shield,=two=bonding=screws=are=
still=needed.

True=-=ans-✔✔T/
F:=When=installing=and=wiring=the=IQ=Battery=5P=you'll=need=to=plug=in=the=battery=circ
uit=connectors=(labeled=B1=and=B2=below)=as=they=are=not=plugged=in=when=shipped=f
rom=the=factory.

True=-=ans-✔✔T/
F:=When=using=an=IQ=Battery=5P=you'll=need=to=install=a="Battery=Storage=CT"=on=your
=site=for=all=system=configurations.=(back=up=and=/=or=grid=tied=only=scenarios)


False=-=ans-✔✔T/
F:=The=arrow=on=the="Battery=Storage=CT"=must=always=point=towards=the=batteries.

False=-=ans-✔✔T/
F:=A=site=with=two=battery=circuits=would=require=two=battery=storage=CT's.=(A=CT=is=n
eeded=per=each=battery=AC=circuit)

True=-=ans-✔✔T/
F:=When=wiring=multiple=IQ=Battery=5Ps=together,=per=each=battery=circuit:
-=without=PCS=you=can=daisy=chain=up=to=4=batteries=together
or
-=with=PCS=enabled=you=can=daisy=chain=up=to=8=batteries=per=battery=circuit.
