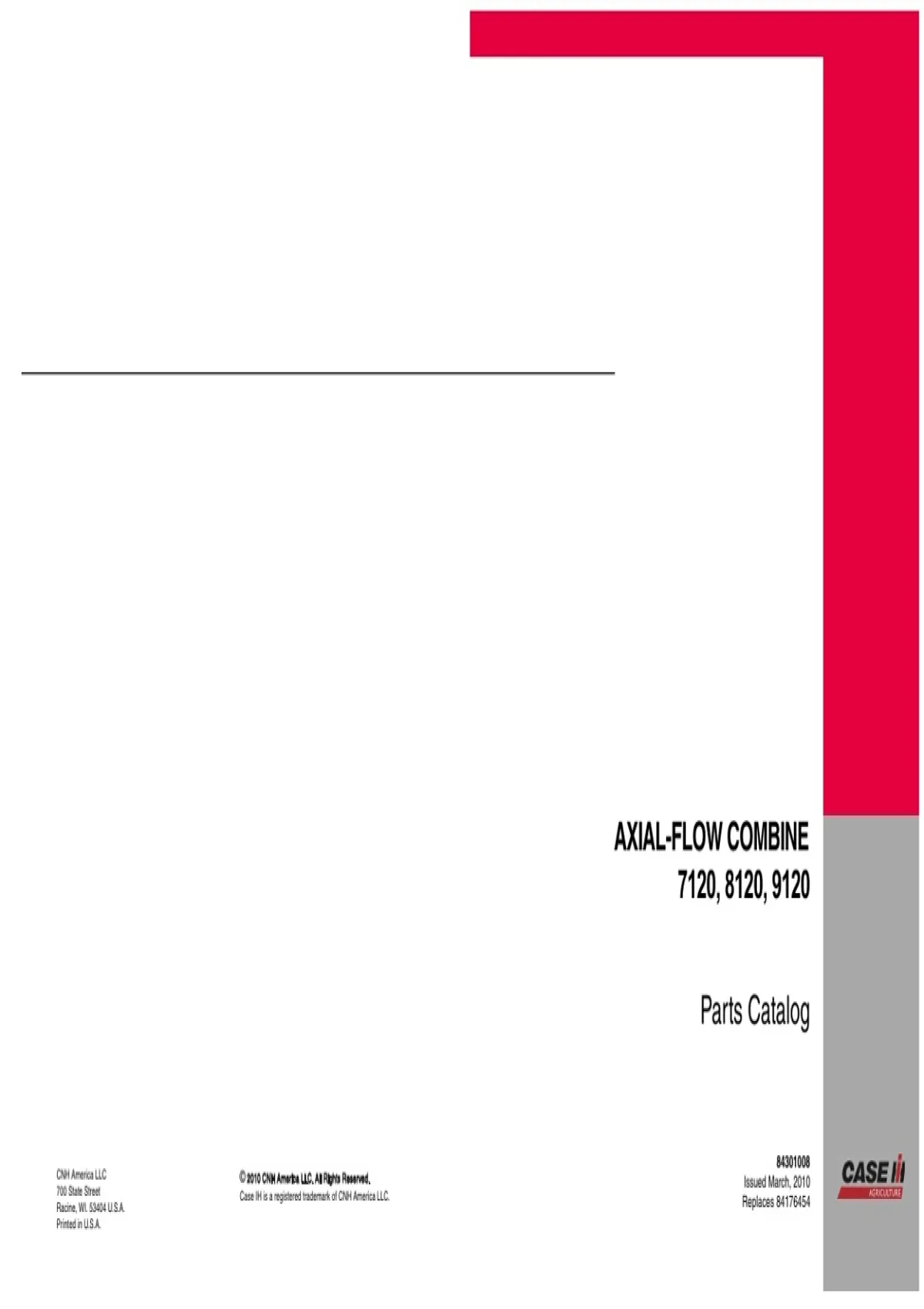

AXIAL-FLOW COMBINE
7120, 8120, 9120
Parts Catalog
84301008
CNH America LLC © 2010 CNH America LLC. All Rights Reserved.
700 State Street
Issued March, 2010
Case IH is a registered trademark of CNH America LLC.
Racine, WI. 53404 U.S.A. Replaces 84176454
Printed in U.S.A.
, GENERAL INFORMATION
1. Whenever the terms left and right are used, it should be understood to mean
from a position facing in direction of travel.
2. Throughout this manual you may find common hardware not illustrated, but
listed in the description column. The service part immediately preceding a
hardware listing is the part using these particular items for mounting purposes.
This hardware is not included with the service part or assembly when ordered as
a replacement.
3. The illustrations show typical assemblies plus individual parts but in all cases
may not show the exact shape or detail of parts required. However, the purpose
for the illustrations is to identify parts performing like functions. Whenever possible,
illustrations are located at the beginning of each section or immediately adjacent
to the applicable text.
4. CNH America LLC is continually striving to improve its products. We must,
therefore, reserve the right to make improvements or changes when it becomes
practical and possible to do so, without incurring any obligation to make changes
or additions to the equipment sold previously.
CNH America LLC, Racine, WI 53404 U.S.A.
,
,
