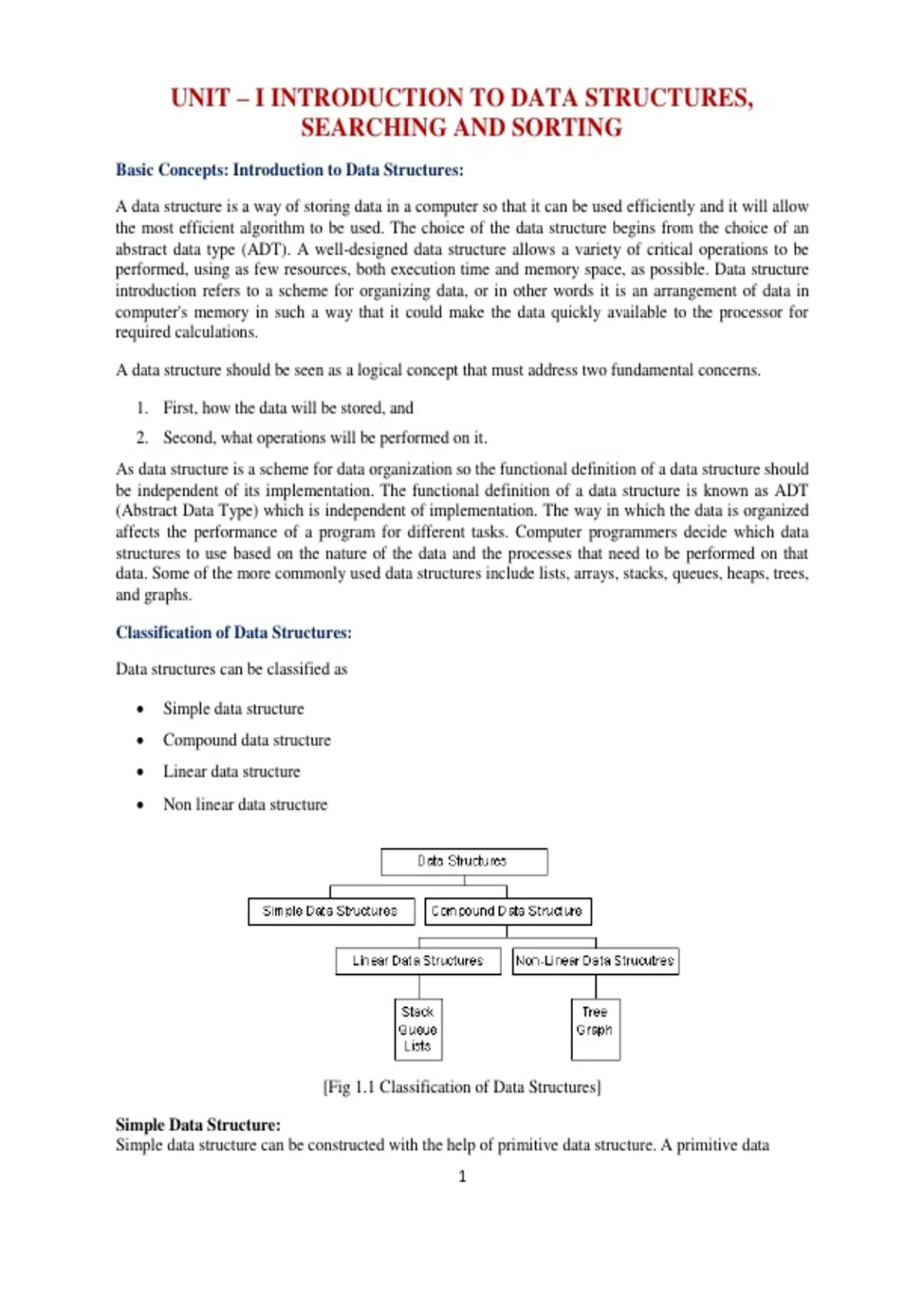

UNIT – I INTRODUCTION TO DATA STRUCTURES,
SEARCHING AND SORTING
Basic Concepts: Introduction to Data Structures:
A data structure is a way of storing data in a computer so that it can be used efficiently and it will allow
the most efficient algorithm to be used. The choice of the data structure begins from the choice of an
abstract data type (ADT). A well-designed data structure allows a variety of critical operations to be
performed, using as few resources, both execution time and memory space, as possible. Data structure
introduction refers to a scheme for organizing data, or in other words it is an arrangement of data in
computer's memory in such a way that it could make the data quickly available to the processor for
required calculations.
A data structure should be seen as a logical concept that must address two fundamental concerns.
1. First, how the data will be stored, and
2. Second, what operations will be performed on it.
As data structure is a scheme for data organization so the functional definition of a data structure should
be independent of its implementation. The functional definition of a data structure is known as ADT
(Abstract Data Type) which is independent of implementation. The way in which the data is organized
affects the performance of a program for different tasks. Computer programmers decide which data
structures to use based on the nature of the data and the processes that need to be performed on that
data. Some of the more commonly used data structures include lists, arrays, stacks, queues, heaps, trees,
and graphs.
Classification of Data Structures:
Data structures can be classified as
Simple data structure
Compound data structure
Linear data structure
Non linear data structure
[Fig 1.1 Classification of Data Structures]
Simple Data Structure:
Simple data structure can be constructed with the help of primitive data structure. A primitive data
1
,structure used to represent the standard data types of any one of the computer languages. Variables,
arrays, pointers, structures, unions, etc. are examples of primitive data structures.
Compound Data structure:
Compound data structure can be constructed with the help of any one of the primitive data structure and
it is having a specific functionality. It can be designed by user. It can be classified as
Linear data structure
Non-linear data structure
Linear Data Structure:
Linear data structures can be constructed as a continuous arrangement of data elements in the memory.
It can be constructed by using array data type. In the linear Data Structures the relationship of adjacency
is maintained between the data elements.
Operations applied on linear data structure:
The following list of operations applied on linear data structures
1. Add an element
2. Delete an element
3. Traverse
4. Sort the list of elements
5. Search for a data element
For example Stack, Queue, Tables, List, and Linked Lists.
Non-linear Data Structure:
Non-linear data structure can be constructed as a collection of randomly distributed set of data item
joined together by using a special pointer (tag). In non-linear Data structure the relationship of
adjacency is not maintained between the data items.
Operations applied on non-linear data structures:
The following list of operations applied on non-linear data structures.
1. Add elements
2. Delete elements
3. Display the elements
4. Sort the list of elements
5. Search for a data element
For example Tree, Decision tree, Graph and Forest
Abstract Data Type:
An abstract data type, sometimes abbreviated ADT, is a logical description of how we view the data
and the operations that are allowed without regard to how they will be implemented. This means that
we are concerned only with what data is representing and not with how it will eventually be
constructed. By providing this level of abstraction, we are creating an encapsulation around the data.
The idea is that by encapsulating the details of the implementation, we are hiding them from the user’s
view. This is called information hiding. The implementation of an abstract data type, often referred to
as a data structure, will require that we provide a physical view of the data using some collection of
programming constructs and primitive data types.
2
, [Fig. 1.2: Abstract Data Type (ADT)]
Algorithms:
Structure and Properties of Algorithm:
An algorithm has the following structure
1. Input Step
2. Assignment Step
3. Decision Step
4. Repetitive Step
5. Output Step
An algorithm is endowed with the following properties:
1. Finiteness: An algorithm must terminate after a finite number of steps.
2. Definiteness: The steps of the algorithm must be precisely defined or unambiguously specified.
3. Generality: An algorithm must be generic enough to solve all problems of a particular class.
4. Effectiveness: the operations of the algorithm must be basic enough to be put down on pencil and
paper. They should not be too complex to warrant writing another algorithm for the operation.
5. Input-Output: The algorithm must have certain initial and precise inputs, and outputs that may be
generated both at its intermediate and final steps.
Different Approaches to Design an Algorithm:
An algorithm does not enforce a language or mode for its expression but only demands adherence to its
properties.
Practical Algorithm Design Issues:
1. To save time (Time Complexity): A program that runs faster is a better program.
2. To save space (Space Complexity): A program that saves space over a competing program is
3
, considerable desirable.
Efficiency of Algorithms:
The performances of algorithms can be measured on the scales of time and space. The performance of
a program is the amount of computer memory and time needed to run a program. We use two
approaches to determine the performance of a program. One is analytical and the other is experimental.
In performance analysis we use analytical methods, while in performance measurement we conduct
experiments.
Time Complexity: The time complexity of an algorithm or a program is a function of the running time
of the algorithm or a program. In other words, it is the amount of computer time it needs to run to
completion.
Space Complexity: The space complexity of an algorithm or program is a function of the space needed
by the algorithm or program to run to completion.
The time complexity of an algorithm can be computed either by an empirical or theoretical approach.
The empirical or posteriori testing approach calls for implementing the complete algorithms and
executing them on a computer for various instances of the problem. The time taken by the execution of
the programs for various instances of the problem are noted and compared. The algorithm whose
implementation yields the least time is considered as the best among the candidate algorithmic
solutions.
Analyzing Algorithms
Suppose M is an algorithm, and suppose n is the size of the input data. Clearly the complexity f(n) of M
increases as n increases. It is usually the rate of increase of f(n) with some standard functions. The most
common computing times are
O(1), O(log2 n), O(n), O(n log2 n), O(n2), O(n3), O(2n)
Example:
4
