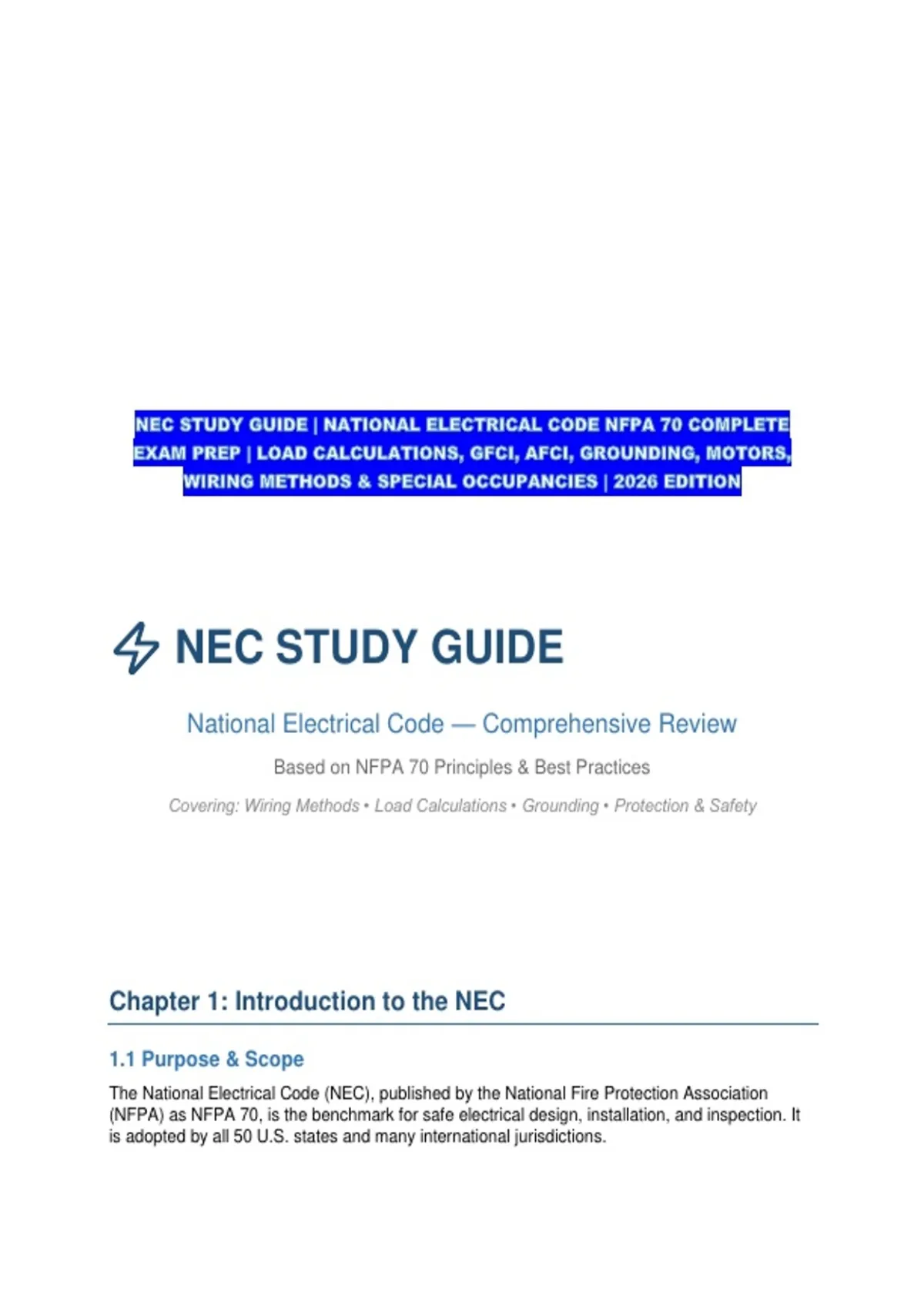

⚡ NEC STUDY GUIDE
National Electrical Code — Comprehensive Review
Based on NFPA 70 Principles & Best Practices
Covering: Wiring Methods • Load Calculations • Grounding • Protection & Safety
Chapter 1: Introduction to the NEC
1.1 Purpose & Scope
The National Electrical Code (NEC), published by the National Fire Protection Association
(NFPA) as NFPA 70, is the benchmark for safe electrical design, installation, and inspection. It
is adopted by all 50 U.S. states and many international jurisdictions.
,The primary purpose of the NEC is the practical safeguarding of persons and property from
hazards arising from the use of electricity. It is not intended as a design specification or
instruction manual for the untrained.
Key Point: The NEC is a minimum safety standard. Local amendments may impose stricter
requirements.
1.2 Code Structure
The NEC is organized into an introduction, nine chapters, and annexes:
• Chapters 1–4: Apply generally to all electrical installations
• Chapters 5–7: Apply to special occupancies, equipment, and conditions; amend
Chapters 1–4
• Chapter 8: Covers communications systems (stand-alone, not amended by Chapters 1–
7)
• Chapter 9: Tables for calculations
• Annexes A–J: Informational only, not enforceable
1.3 Definitions (Article 100)
Key definitions every student must know:
Term Definition
Accessible (wiring) Capable of being removed without damaging building structure or
finish
Ampacity Current-carrying capacity of a conductor in amperes
Branch Circuit Circuit conductors between final overcurrent device and outlets
Feeder All conductors between service equipment and final branch circuit
overcurrent device
Ground Conductive connection between an electrical circuit/equipment and
earth
Grounded (Grounded Connected to ground or a conducting body that extends the ground
Conductor) connection
Grounding Conductor (EGC) Conductive path that connects equipment to the grounding electrode
Overcurrent Current exceeding rated equipment or conductor ampacity
Raceway An enclosed channel for conductors (conduit, wireways, cable trays)
Service Conductors/equipment for delivering electric energy from serving
utility to premises
, Chapter 2: Branch Circuits & Feeders
2.1 Branch Circuit Classifications
Article 210 covers branch circuits. Circuits are rated by the overcurrent protective device
(OCPD):
Rating Max Cord/Plug Max Fixed Load Receptacle Rating
Load
15A 12A (80%) 12A 15A
20A 16A (80%) 16A 15A or 20A
30A 24A (80%) 24A 30A (single/multi)
40A 32A (80%) 32A 40A or 50A
50A 40A (80%) 40A 50A
2.2 Required Receptacle Outlets (Article 210.52)
In dwelling units, receptacle outlets must be installed so that no point on a wall is more than 6
feet from an outlet, measuring along the floor line. Wall spaces 2 feet or wider require a
receptacle.
• Kitchen countertops: Receptacle every 4 feet along counter; within 24" of each corner
• Bathrooms: At least one receptacle within 3 feet of each basin
• Outdoors: At least one front and one rear exterior receptacle
• Laundry: At least one receptacle for laundry equipment
• Garages: At least one GFCI-protected receptacle
• Hallways 10+ feet: At least one receptacle
• Basements: At least one GFCI-protected receptacle
2.3 Small Appliance & Laundry Circuits
Two 20-ampere small appliance branch circuits are required for kitchen, dining room, pantry,
and breakfast area receptacle outlets. A separate 20A laundry circuit is also required.
Exam Tip: Small appliance circuits cannot serve lighting outlets or receptacles in other
rooms (bathrooms excepted for exhaust fans in some interpretations).
2.4 Load Calculations for Branch Circuits
The continuous load on a branch circuit must not exceed 80% of the circuit rating (unless
assembly is listed for 100% duty). Formula:
Maximum Continuous Load = Branch Circuit Rating × 0.80
National Electrical Code — Comprehensive Review
Based on NFPA 70 Principles & Best Practices
Covering: Wiring Methods • Load Calculations • Grounding • Protection & Safety
Chapter 1: Introduction to the NEC
1.1 Purpose & Scope
The National Electrical Code (NEC), published by the National Fire Protection Association
(NFPA) as NFPA 70, is the benchmark for safe electrical design, installation, and inspection. It
is adopted by all 50 U.S. states and many international jurisdictions.
,The primary purpose of the NEC is the practical safeguarding of persons and property from
hazards arising from the use of electricity. It is not intended as a design specification or
instruction manual for the untrained.
Key Point: The NEC is a minimum safety standard. Local amendments may impose stricter
requirements.
1.2 Code Structure
The NEC is organized into an introduction, nine chapters, and annexes:
• Chapters 1–4: Apply generally to all electrical installations
• Chapters 5–7: Apply to special occupancies, equipment, and conditions; amend
Chapters 1–4
• Chapter 8: Covers communications systems (stand-alone, not amended by Chapters 1–
7)
• Chapter 9: Tables for calculations
• Annexes A–J: Informational only, not enforceable
1.3 Definitions (Article 100)
Key definitions every student must know:
Term Definition
Accessible (wiring) Capable of being removed without damaging building structure or
finish
Ampacity Current-carrying capacity of a conductor in amperes
Branch Circuit Circuit conductors between final overcurrent device and outlets
Feeder All conductors between service equipment and final branch circuit
overcurrent device
Ground Conductive connection between an electrical circuit/equipment and
earth
Grounded (Grounded Connected to ground or a conducting body that extends the ground
Conductor) connection
Grounding Conductor (EGC) Conductive path that connects equipment to the grounding electrode
Overcurrent Current exceeding rated equipment or conductor ampacity
Raceway An enclosed channel for conductors (conduit, wireways, cable trays)
Service Conductors/equipment for delivering electric energy from serving
utility to premises
, Chapter 2: Branch Circuits & Feeders
2.1 Branch Circuit Classifications
Article 210 covers branch circuits. Circuits are rated by the overcurrent protective device
(OCPD):
Rating Max Cord/Plug Max Fixed Load Receptacle Rating
Load
15A 12A (80%) 12A 15A
20A 16A (80%) 16A 15A or 20A
30A 24A (80%) 24A 30A (single/multi)
40A 32A (80%) 32A 40A or 50A
50A 40A (80%) 40A 50A
2.2 Required Receptacle Outlets (Article 210.52)
In dwelling units, receptacle outlets must be installed so that no point on a wall is more than 6
feet from an outlet, measuring along the floor line. Wall spaces 2 feet or wider require a
receptacle.
• Kitchen countertops: Receptacle every 4 feet along counter; within 24" of each corner
• Bathrooms: At least one receptacle within 3 feet of each basin
• Outdoors: At least one front and one rear exterior receptacle
• Laundry: At least one receptacle for laundry equipment
• Garages: At least one GFCI-protected receptacle
• Hallways 10+ feet: At least one receptacle
• Basements: At least one GFCI-protected receptacle
2.3 Small Appliance & Laundry Circuits
Two 20-ampere small appliance branch circuits are required for kitchen, dining room, pantry,
and breakfast area receptacle outlets. A separate 20A laundry circuit is also required.
Exam Tip: Small appliance circuits cannot serve lighting outlets or receptacles in other
rooms (bathrooms excepted for exhaust fans in some interpretations).
2.4 Load Calculations for Branch Circuits
The continuous load on a branch circuit must not exceed 80% of the circuit rating (unless
assembly is listed for 100% duty). Formula:
Maximum Continuous Load = Branch Circuit Rating × 0.80
