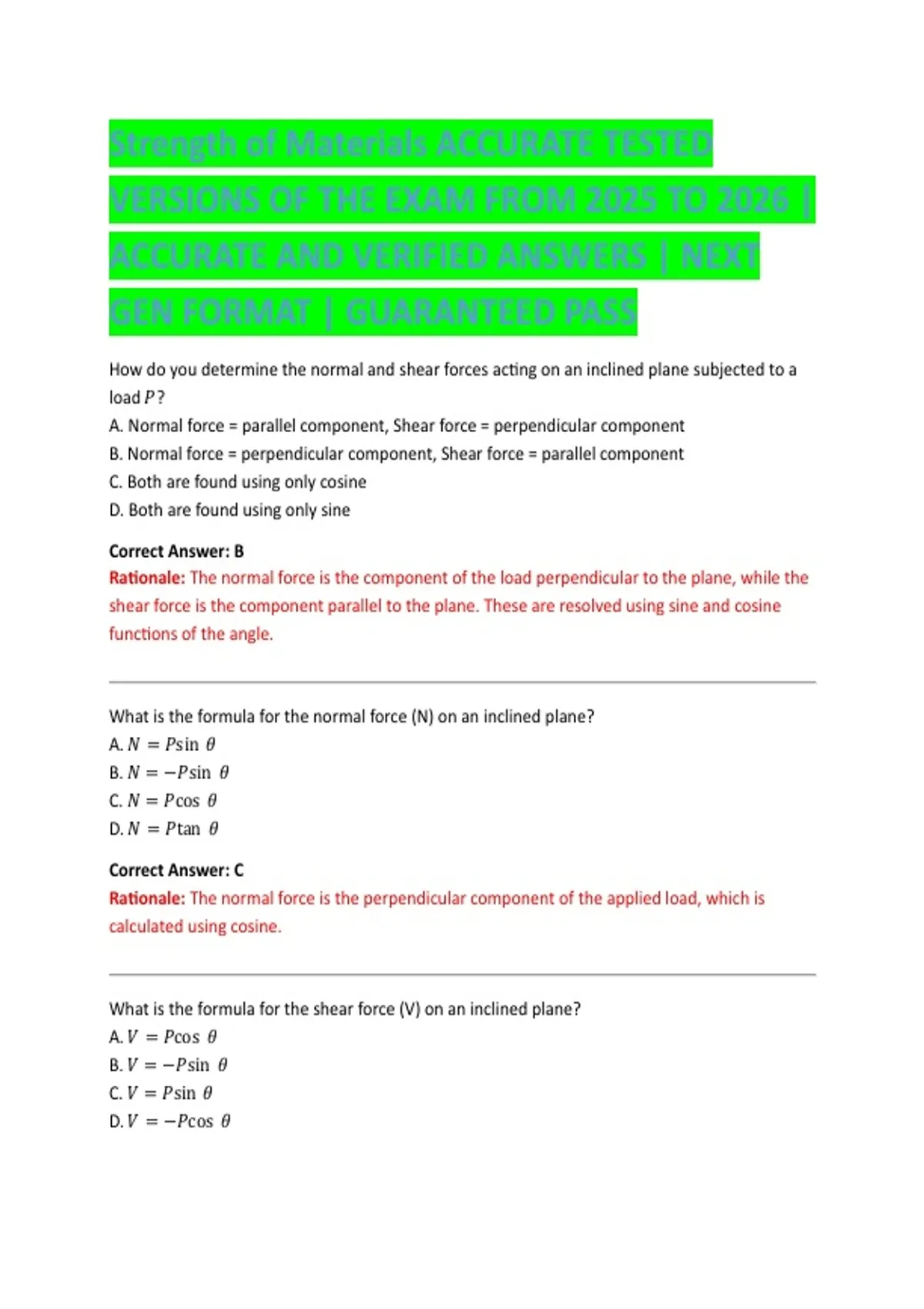

Strength of Materials ACCURATE TESTED
VERSIONS OF THE EXAM FROM 2025 TO 2026 |
ACCURATE AND VERIFIED ANSWERS | NEXT
GEN FORMAT | GUARANTEED PASS
How do you determine the normal and shear forces acting on an inclined plane subjected to a
load 𝑃?
A. Normal force = parallel component, Shear force = perpendicular component
B. Normal force = perpendicular component, Shear force = parallel component
C. Both are found using only cosine
D. Both are found using only sine
Correct Answer: B
Rationale: The normal force is the component of the load perpendicular to the plane, while the
shear force is the component parallel to the plane. These are resolved using sine and cosine
functions of the angle.
What is the formula for the normal force (N) on an inclined plane?
A. 𝑁 = 𝑃sin 𝜃
B. 𝑁 = −𝑃sin 𝜃
C. 𝑁 = 𝑃cos 𝜃
D. 𝑁 = 𝑃tan 𝜃
Correct Answer: C
Rationale: The normal force is the perpendicular component of the applied load, which is
calculated using cosine.
What is the formula for the shear force (V) on an inclined plane?
A. 𝑉 = 𝑃cos 𝜃
B. 𝑉 = −𝑃sin 𝜃
C. 𝑉 = 𝑃sin 𝜃
D. 𝑉 = −𝑃cos 𝜃
,Correct Answer: B
Rationale: The shear force is the parallel component of the load along the plane, calculated
using sine, with the negative sign depending on sign convention.
What is the formula for average normal stress on an oblique plane?
𝑃
A. 𝐴 sin2 𝜃
0
𝑃
B. 𝐴 cos2 𝜃
0
𝑃
C. 𝐴 sin 𝜃cos 𝜃
0
𝑃
D. 2𝐴
0
Correct Answer: B
𝑃
Rationale: Average normal stress on an oblique plane equals 𝐴 cos2 𝜃, where 𝐴0 is the original
0
vertical cross-sectional area.
What is the formula for average shear stress on an oblique plane?
𝑃
A. 𝐴 cos2 𝜃
0
𝑃
B. 𝐴 sin2 𝜃
0
𝑃
C. − 𝐴 sin 𝜃cos 𝜃
0
𝑃
D. − 2𝐴
0
Correct Answer: C
Rationale: Shear stress on an oblique plane depends on both sine and cosine of the angle and
includes a negative sign per sign convention.
What angle is used in these stress transformation formulas?
A. Angle from the horizontal
B. Angle from the applied load
C. Angle from the vertical
D. Angle between forces
Correct Answer: C
Rationale: The reference angle θ is measured from the vertical plane.
, When does maximum normal stress occur?
A. At 45°
B. When plane is parallel to axis
C. When plane is perpendicular to member axis
D. At 30°
Correct Answer: C
Rationale: Maximum normal stress occurs when the cross-section is perpendicular to the axis of
the member.
What is the formula for maximum normal stress?
𝑃
A. 2𝐴
0
𝑃
B. 𝐴
0
𝑃
C. − 𝐴
0
𝑃
D. 𝐴 cos 𝜃
0
Correct Answer: B
Rationale: Maximum normal stress equals axial load divided by original cross-sectional area.
When does maximum shear stress occur?
A. At 0°
B. At 90°
C. At ±45° to the axis
D. At 60°
Correct Answer: C
Rationale: Shear stress reaches maximum at planes oriented ±45° to the axis.
What is the formula for maximum shear stress?
𝑃
A. 𝐴
0
𝑃
B. − 𝐴
0
