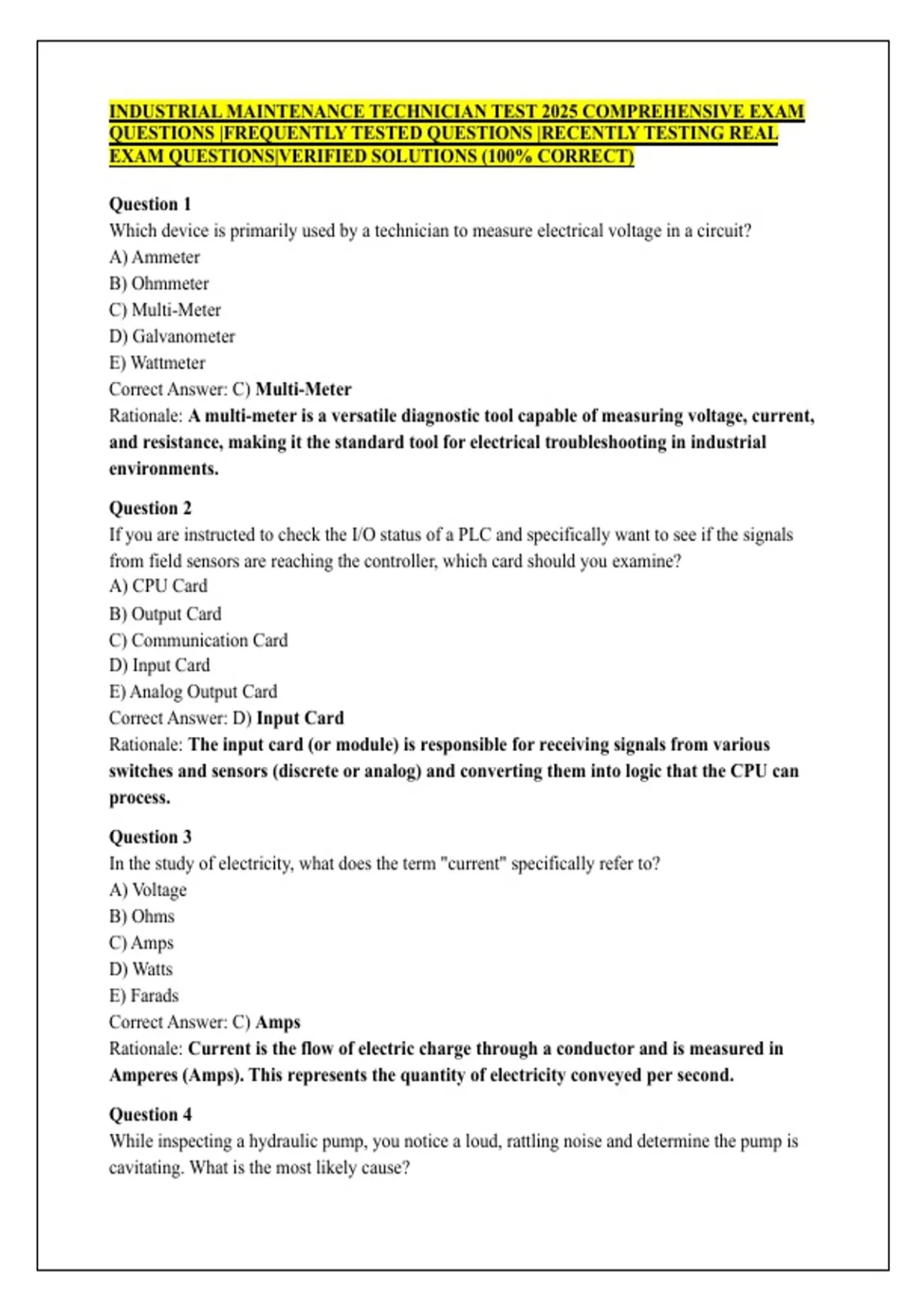

INDUSTRIAL MAINTENANCE TECHNICIAN TEST 2025 COMPREHENSIVE EXAM
QUESTIONS |FREQUENTLY TESTED QUESTIONS |RECENTLY TESTING REAL
EXAM QUESTIONS|VERIFIED SOLUTIONS (100% CORRECT)
Question 1
Which device is primarily used by a technician to measure electrical voltage in a circuit?
A) Ammeter
B) Ohmmeter
C) Multi-Meter
D) Galvanometer
E) Wattmeter
Correct Answer: C) Multi-Meter
Rationale: A multi-meter is a versatile diagnostic tool capable of measuring voltage, current,
and resistance, making it the standard tool for electrical troubleshooting in industrial
environments.
Question 2
If you are instructed to check the I/O status of a PLC and specifically want to see if the signals
from field sensors are reaching the controller, which card should you examine?
A) CPU Card
B) Output Card
C) Communication Card
D) Input Card
E) Analog Output Card
Correct Answer: D) Input Card
Rationale: The input card (or module) is responsible for receiving signals from various
switches and sensors (discrete or analog) and converting them into logic that the CPU can
process.
Question 3
In the study of electricity, what does the term "current" specifically refer to?
A) Voltage
B) Ohms
C) Amps
D) Watts
E) Farads
Correct Answer: C) Amps
Rationale: Current is the flow of electric charge through a conductor and is measured in
Amperes (Amps). This represents the quantity of electricity conveyed per second.
Question 4
While inspecting a hydraulic pump, you notice a loud, rattling noise and determine the pump is
cavitating. What is the most likely cause?
, 2
A) Excessive fluid in the reservoir
B) High system pressure
C) Low fluid in the tank
D) Clogged return line
E) Worn actuator seals
Correct Answer: C) Low fluid in the tank
Rationale: Cavitation occurs when the pump cannot pull enough fluid, often due to low fluid
levels or a restricted suction line. This causes air bubbles to form and collapse, damaging
the pump internal components.
Question 5
In a standard 480-volt three-phase system (Wye configuration), what is the expected voltage
reading if you measure from one phase (leg) to ground?
A) 480V
B) 240V
C) 208V
D) 277V
E) 120V
Correct Answer: D) 277V
Rationale: In a 480V three-phase system, the phase-to-neutral (or phase-to-ground) voltage
is calculated by dividing the line voltage by the square root of 3 (.732), which equals
approximately 277V.
Question 6
Which specialized tool is used to identify the number of threads per inch or the distance between
threads on a bolt or screw?
A) Caliper
B) Micrometer
C) Thread Gauge
D) Feeler Gauge
E) Dial Indicator
Correct Answer: C) Thread Gauge
Rationale: A thread gauge (or screw pitch gauge) consists of several small leaves with teeth
matching specific thread profiles, allowing a technician to accurately measure screw pitch.
Question 7
What is the primary definition and purpose of a circuit breaker in an industrial electrical system?
A) A manual switch used to increase voltage
B) An automatically operated switch designed to protect a circuit from damage caused by
overload or short circuit
C) A device used to convert AC to DC
, 3
D) A resistor used to limit current flow
E) A sensor that detects phase rotation
Correct Answer: B) an automatically operated electrical switch designed to protect an
electrical circuit from damage caused by overload or short circuit.
Rationale: Circuit breakers detect fault conditions (overcurrent) and interrupt the flow of
electricity to prevent equipment damage and fire hazards.
Question 8
When dealing with electrical switches, what does the abbreviation "D.P.S.T." stand for?
A) Dual Power Single Timer
B) Double Phase Single Terminal
C) Double Pole Single Throw
D) Direct Power Static Transformer
E) Dual Pole Secondary Toggle
Correct Answer: C) double pole single throw
Rationale: A Double Pole Single Throw (DPST) switch can control two separate circuits
(double pole) but only has one "ON" position (single throw).
Question 9
How many teeth are present on a sprocket labeled as "40B12"?
A) 40
B) 4
C) 12
D) 52
E) 1.2
Correct Answer: C) 12
Rationale: In standard sprocket nomenclature, the number following the chain size (40) and
the hub type (B) indicates the number of teeth. Therefore, a 40B12 has 12 teeth.
Question 10
What is the Binary Coded Decimal (BCD) equivalent of the decimal value 1247?
A) 0001 0010 0100 0111
B) 1111 0000 1111 0000
C) 0010 0001 0111 0100
D) 1010 1010 1010 1010
E) 0001 0010 0011 0100
Correct Answer: A) 0001 0010 0100 0111
Rationale: BCD represents each decimal digit individually using four binary bits: 1=0001,
2=0010, 4=0100, and 7=0111.
