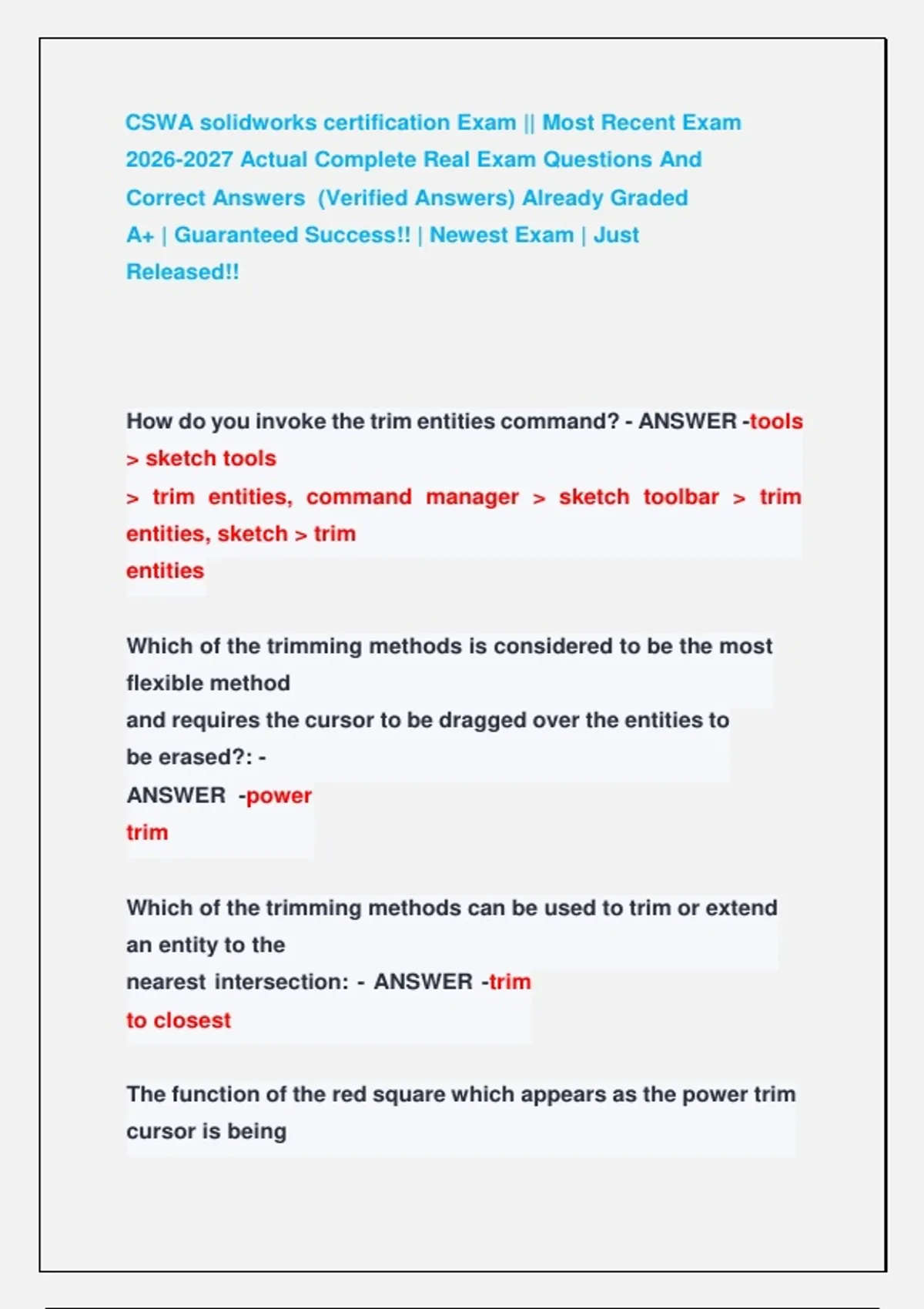

CSWA solidworks certification Exam || Most Recent Exam
2026-2027 Actual Complete Real Exam Questions And
Correct Answers (Verified Answers) Already Graded
A+ | Guaranteed Success!! | Newest Exam | Just
Released!!
How do you invoke the trim entities command? - ANSWER -tools
> sketch tools
> trim entities, command manager > sketch toolbar > trim
entities, sketch > trim
entities
Which of the trimming methods is considered to be the most
flexible method
and requires the cursor to be dragged over the entities to
be erased?: -
ANSWER -power
trim
Which of the trimming methods can be used to trim or extend
an entity to the
nearest intersection: - ANSWER -trim
to closest
The function of the red square which appears as the power trim
cursor is being
,dragged is: - ANSWER -to allow the user to undo
unwanted trims
which pair of trimming methods requires the user to first select
two bounding entities or a face and then choose the entities to
be trimmed?: - ANSWER -trim away inside, trim away outside
what is the grey area where the part/assembly/drawing is
shown called -
ANSWER -graphics
area
what is the very top bar called with settings, open, tools, file -
ANSWER -menu
bar
what is the second to top bar called where you access sketch,
surfaces, boss
extrude etc - ANSWER -command
manager
Design tree located on the left side of the Solid Works
window; it provides an
outline view of the active part, assembly, or drawing -
ANSWER -feature
manager
what is the given coordinate system SW shows at the
bottom left corner -
, ANSWER -reference
triad
what is the very bottom bar called that shows if something is
under defined and
the units - ANSWER -
status bar
what is the bar in the graphics area called where you access
section view and
appearance and zoom to fit - ANSWER -heads-up
view toolbar
what is the bar called on the right of the graphics area with
appearances and
decal images - ANSWER -task
plane
What rectangle tool requires more than two points to be
selected in order to
draw the sketch entity? - ANSWER -
Parallelogram
True or False - To create a "3 Point Center Rectangle", you first
click at the center point, then click at the midpoint of one edge
of the rectangle, and then click to set the height of the
rectangle. - ANSWER -True
