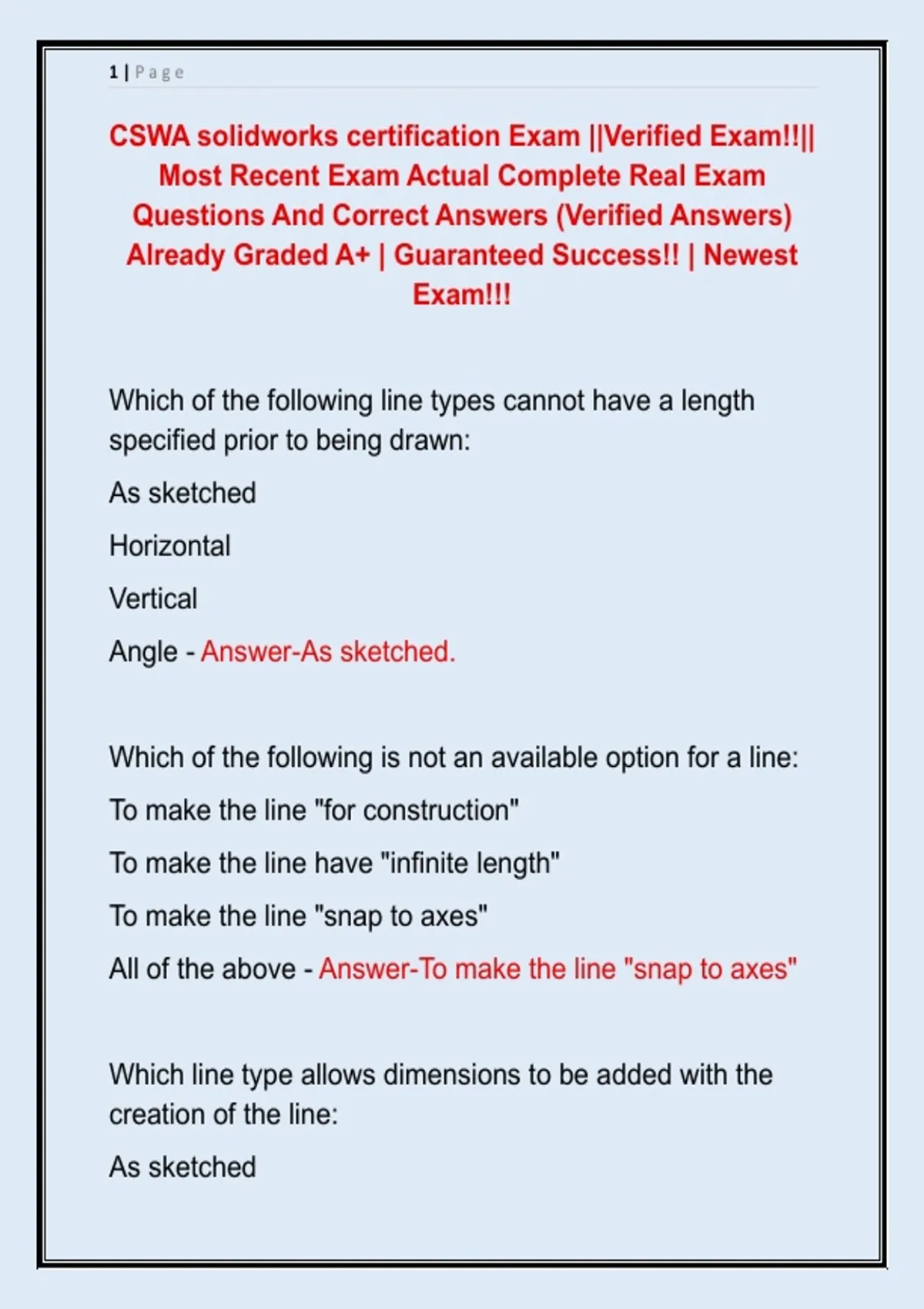

1|Page
CSWA solidworks certification Exam ||Verified Exam!!||
Most Recent Exam Actual Complete Real Exam
Questions And Correct Answers (Verified Answers)
Already Graded A+ | Guaranteed Success!! | Newest
Exam!!!
Which of the following line types cannot have a length
specified prior to being drawn:
As sketched
Horizontal
Vertical
Angle - Answer-As sketched.
Which of the following is not an available option for a line:
To make the line "for construction"
To make the line have "infinite length"
To make the line "snap to axes"
All of the above - Answer-To make the line "snap to axes"
Which line type allows dimensions to be added with the
creation of the line:
As sketched
,2|Page
Horizontal
Angle
Vertical - Answer-Angle
Which color inference line should be sketched on to create
an automatic relation:
Blue or Yellow - Answer-Yellow
Which method will not convert a line to a construction line:
1. Selecting a line in the graphics area, and then selecting
"For Construction" in the Property Manager.
2. Selecting a line in the graphics area, and then clicking
the "Centerline" button in the command manager.
3. Selecting a line and then clicking the "Construction
Geometry" button in the context toolbar.
4. Right-clicking a line and then selecting the
"Construction Geometry" button in the context toolbar. -
Answer-2. Selecting a line in the graphics area, and then
clicking the "Centerline" button in the Command Manager.
,3|Page
When a corner rectangle is sketched, two of the sides are
automatically set to horizontal and the other two are
automatically set to vertical. T or F? - Answer-True.
Which of the following types of rectangle tools adds
centerlines when the sketch entity is drawn:
Corner Rectangle
Center Rectangle
3 Point Corner Rectangle
Parallelogram - Answer-Center Rectangle
Which rectangle tool requires more than two points to be
selected in order to draw the sketch entity:
Corner Rectangle
Center Rectangle
Parallelogram
None of the above - Answer-Parallelogram
To create a "3 point center rectangle" you first click at the
center point, then click at the midpoint of one edge of the
rectangle, and then click to set the height of the rectangle.
T or F? - Answer-True.
, 4|Page
Two identical rectangles can be created by sketching one
rectangle on top of another and then dragging it to a new
position. T or F? - Answer-False.
Which circle tool requires clicking three points to draw a
circle:
Standard Circle or Perimeter Circle - Answer-Perimeter
Circle.
The center point of a perimeter circle cannot be selected
since it is interpolated using three selected points on its
perimeter. T or F? - Answer-False.
Which of the following is not a type of arc that can be
drawn in SOLIDWORKS:
3 Point arc
Variable arc
Center point arc
Tangent arc - Answer-Variable arc.
Which arc tool only requires two points to be created:
