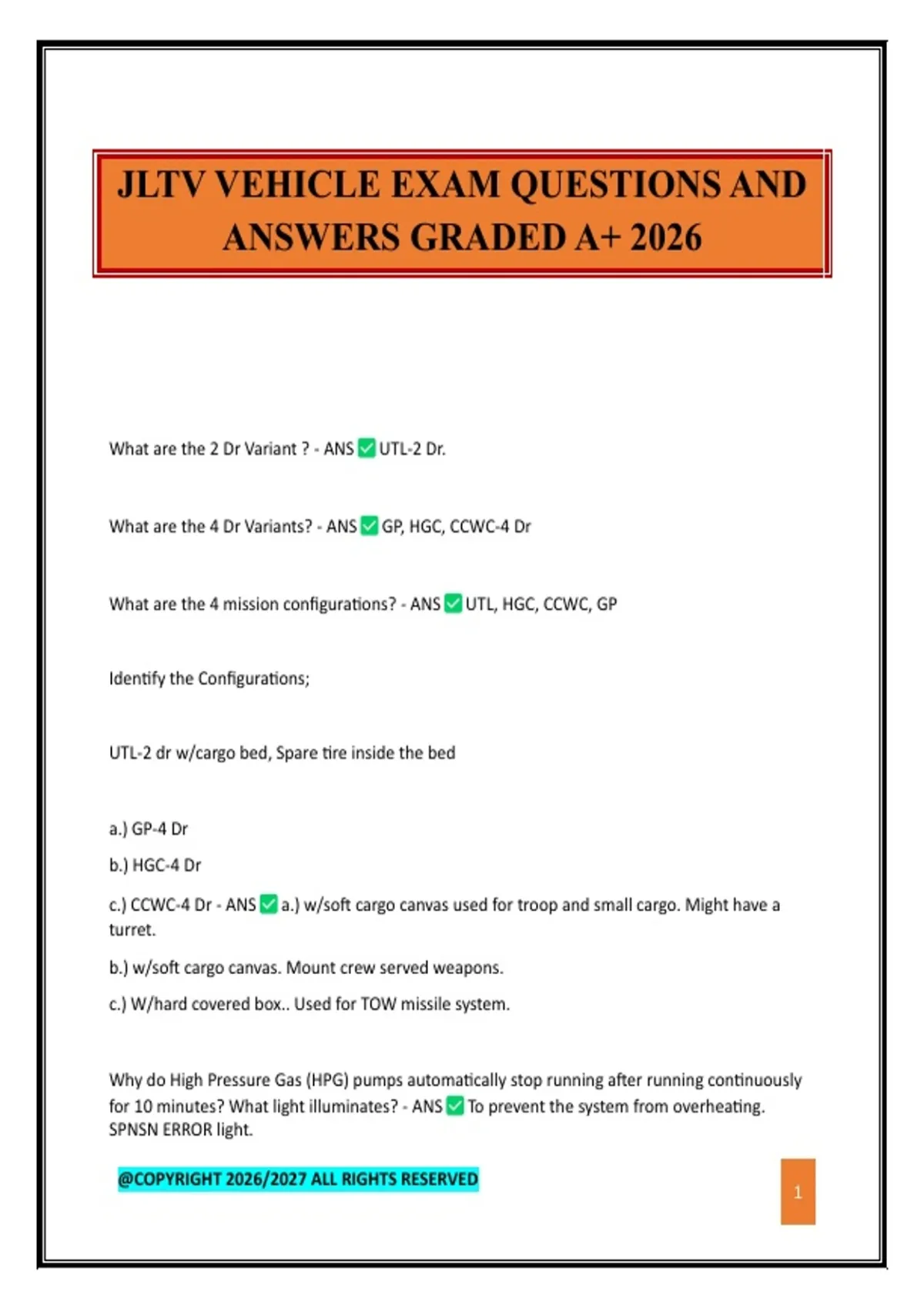

JLTV VEHICLE EXAM QUESTIONS AND
ANSWERS GRADED A+ 2026
What are the 2 Dr Variant ? - ANS UTL-2 Dr.
What are the 4 Dr Variants? - ANS GP, HGC, CCWC-4 Dr
What are the 4 mission configurations? - ANS UTL, HGC, CCWC, GP
Identify the Configurations;
UTL-2 dr w/cargo bed, Spare tire inside the bed
a.) GP-4 Dr
b.) HGC-4 Dr
c.) CCWC-4 Dr - ANS a.) w/soft cargo canvas used for troop and small cargo. Might have a
turret.
b.) w/soft cargo canvas. Mount crew served weapons.
c.) W/hard covered box.. Used for TOW missile system.
Why do High Pressure Gas (HPG) pumps automatically stop running after running continuously
for 10 minutes? What light illuminates? - ANS To prevent the system from overheating.
SPNSN ERROR light.
@COPYRIGHT 2026/2027 ALL RIGHTS RESERVED
1
, Pg.14
The Transaxle recieves power from where? - ANS Transmission
Where does the Transmission transfer its power to? - ANS Front & Rear Wheels
Pg.11
What are the fording heights? - ANS 30' w/o fording kit
60' w/fording kit
Why does the JLTV use air over hydraulic brakes from a standard braking system? ` -
ANS Provides a quicker stop and more reliability
PG.15
What is above the Light MUX panel? - ANS Blackout switch
Know the locations of the buttons on the Light
MUX panel;
Headlight and and clearance lights, interior dome lights, dome dimmer, dash light dimmer -
ANS
List the 5 High Pressure Gas Suspension Settings - ANS Operational
Tie Down
@COPYRIGHT 2026/2027 ALL RIGHTS RESERVED
2
