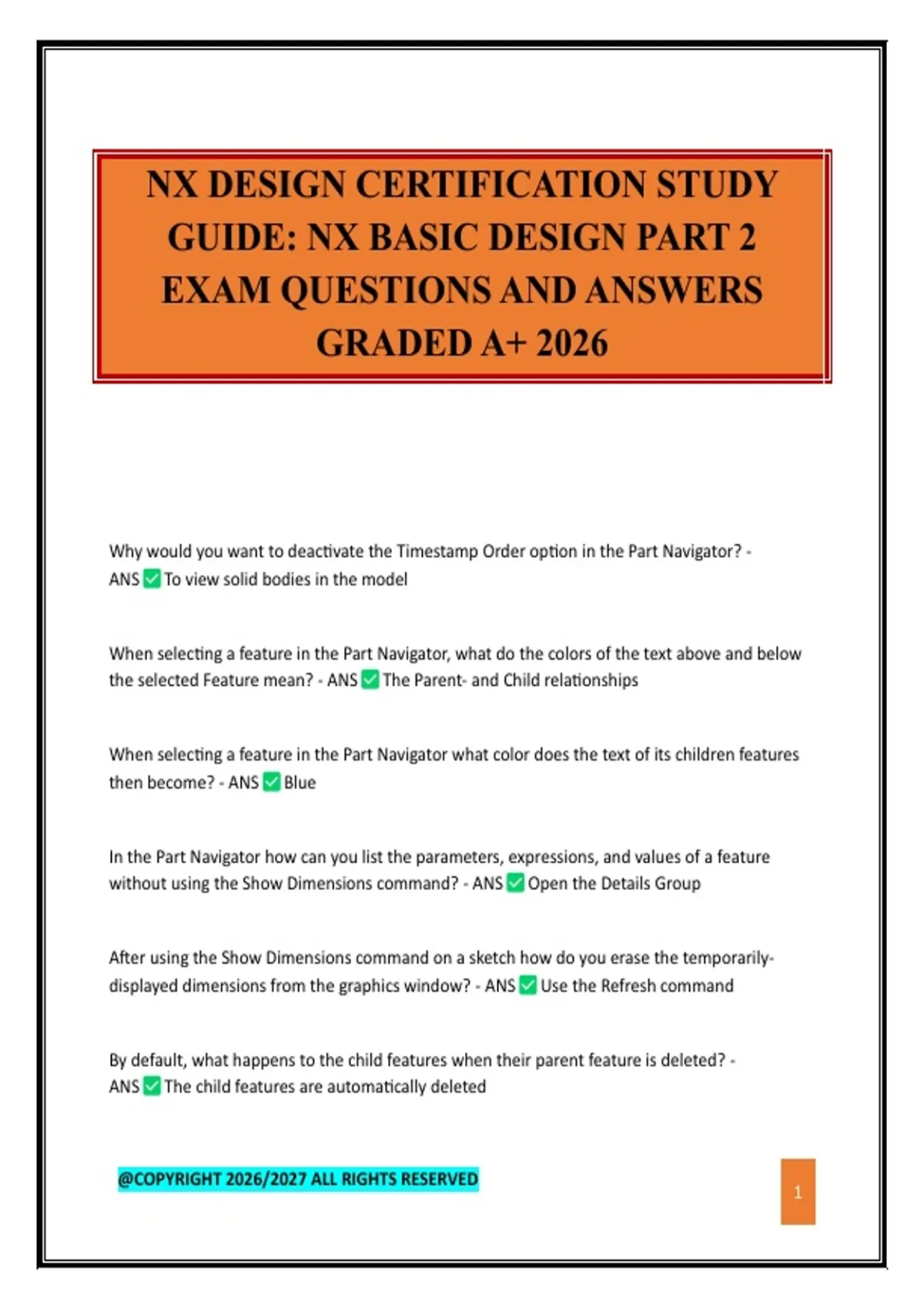

NX DESIGN CERTIFICATION STUDY
GUIDE: NX BASIC DESIGN PART 2
EXAM QUESTIONS AND ANSWERS
GRADED A+ 2026
Why would you want to deactivate the Timestamp Order option in the Part Navigator? -
ANS To view solid bodies in the model
When selecting a feature in the Part Navigator, what do the colors of the text above and below
the selected Feature mean? - ANS The Parent- and Child relationships
When selecting a feature in the Part Navigator what color does the text of its children features
then become? - ANS Blue
In the Part Navigator how can you list the parameters, expressions, and values of a feature
without using the Show Dimensions command? - ANS Open the Details Group
After using the Show Dimensions command on a sketch how do you erase the temporarily-
displayed dimensions from the graphics window? - ANS Use the Refresh command
By default, what happens to the child features when their parent feature is deleted? -
ANS The child features are automatically deleted
@COPYRIGHT 2026/2027 ALL RIGHTS RESERVED
1
