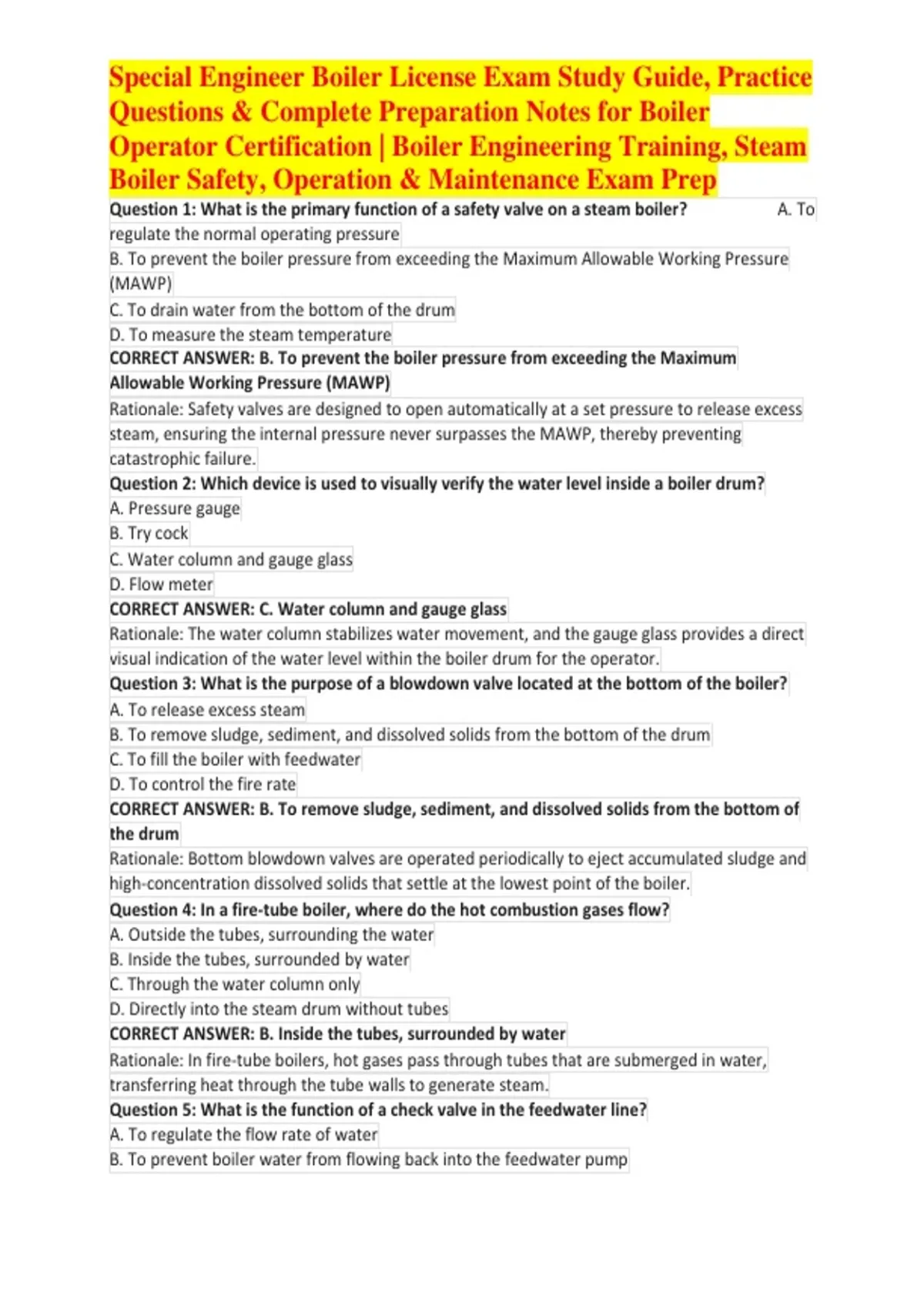

Special Engineer Boiler License Exam Study Guide, Practice
Questions & Complete Preparation Notes for Boiler
Operator Certification | Boiler Engineering Training, Steam
Boiler Safety, Operation & Maintenance Exam Prep
Question 1: What is the primary function of a safety valve on a steam boiler? A. To
regulate the normal operating pressure
B. To prevent the boiler pressure from exceeding the Maximum Allowable Working Pressure
(MAWP)
C. To drain water from the bottom of the drum
D. To measure the steam temperature
CORRECT ANSWER: B. To prevent the boiler pressure from exceeding the Maximum
Allowable Working Pressure (MAWP)
Rationale: Safety valves are designed to open automatically at a set pressure to release excess
steam, ensuring the internal pressure never surpasses the MAWP, thereby preventing
catastrophic failure.
Question 2: Which device is used to visually verify the water level inside a boiler drum?
A. Pressure gauge
B. Try cock
C. Water column and gauge glass
D. Flow meter
CORRECT ANSWER: C. Water column and gauge glass
Rationale: The water column stabilizes water movement, and the gauge glass provides a direct
visual indication of the water level within the boiler drum for the operator.
Question 3: What is the purpose of a blowdown valve located at the bottom of the boiler?
A. To release excess steam
B. To remove sludge, sediment, and dissolved solids from the bottom of the drum
C. To fill the boiler with feedwater
D. To control the fire rate
CORRECT ANSWER: B. To remove sludge, sediment, and dissolved solids from the bottom of
the drum
Rationale: Bottom blowdown valves are operated periodically to eject accumulated sludge and
high-concentration dissolved solids that settle at the lowest point of the boiler.
Question 4: In a fire-tube boiler, where do the hot combustion gases flow?
A. Outside the tubes, surrounding the water
B. Inside the tubes, surrounded by water
C. Through the water column only
D. Directly into the steam drum without tubes
CORRECT ANSWER: B. Inside the tubes, surrounded by water
Rationale: In fire-tube boilers, hot gases pass through tubes that are submerged in water,
transferring heat through the tube walls to generate steam.
Question 5: What is the function of a check valve in the feedwater line?
A. To regulate the flow rate of water
B. To prevent boiler water from flowing back into the feedwater pump
,C. To filter impurities from the water
D. To measure the water temperature
CORRECT ANSWER: B. To prevent boiler water from flowing back into the feedwater pump
Rationale: A check valve allows flow in only one direction, protecting the feedwater pump and
piping from high-pressure boiler water reversing flow during pump shutdown or failure.
Question 6: Which type of draft is created by a chimney or stack due to the difference in
density between hot flue gases and outside air?
A. Forced draft
B. Induced draft
C. Natural draft
D. Mechanical draft
CORRECT ANSWER: C. Natural draft
Rationale: Natural draft relies on the buoyancy of hot gases rising through a stack, creating a
pressure differential that draws air into the furnace without mechanical fans.
Question 7: What is the primary cause of "water hammer" in steam piping?
A. High steam pressure
B. Condensate accumulation being struck by high-velocity steam
C. Low water level in the boiler
D. Excessive fuel supply
CORRECT ANSWER: B. Condensate accumulation being struck by high-velocity steam
Rationale: Water hammer occurs when steam pushes a slug of condensate at high speed,
causing a hydraulic shock wave that can damage pipes and fittings.
Question 8: Which chemical is commonly added to boiler feedwater to remove dissolved
oxygen and prevent corrosion?
A. Sodium chloride
B. Sodium sulfite
C. Calcium carbonate
D. Silica
CORRECT ANSWER: B. Sodium sulfite
Rationale: Sodium sulfite acts as an oxygen scavenger, chemically reacting with dissolved
oxygen in the feedwater to prevent oxidative corrosion of boiler metals.
Question 9: What does the term "MAWP" stand for in boiler regulations?
A. Maximum Average Working Pressure
B. Minimum Allowable Working Pressure
C. Maximum Allowable Working Pressure
D. Mean Operating Water Pressure
CORRECT ANSWER: C. Maximum Allowable Working Pressure
Rationale: MAWP is the maximum pressure at which a boiler is permitted to operate at a
specific temperature, as determined by the manufacturer and code calculations.
Question 10: Why is it critical to perform a "try cock" check if the gauge glass is unreadable?
A. To measure the steam temperature
B. To determine the actual water level in the drum manually
,C. To clean the gauge glass
D. To reset the low-water cutoff
CORRECT ANSWER: B. To determine the actual water level in the drum manually
Rationale: Try cocks are manual valves placed at different heights; opening them reveals
whether water or steam escapes, indicating the water level when the gauge glass is
compromised.
Question 11: What is the function of a low-water cutoff control?
A. To increase fuel supply when water is low
B. To shut off the fuel supply if the water level drops below a safe limit
C. To alarm the operator only without stopping the boiler
D. To add more water automatically without stopping combustion
CORRECT ANSWER: B. To shut off the fuel supply if the water level drops below a safe limit
Rationale: The low-water cutoff is a critical safety device that cuts fuel to the burner to prevent
overheating and potential explosion if the water level becomes dangerously low.
Question 12: In a water-tube boiler, where is the water located?
A. Inside the tubes
B. Outside the tubes in the shell
C. Only in the steam drum
D. In the flue gas path
CORRECT ANSWER: A. Inside the tubes
Rationale: In water-tube boilers, water circulates inside the tubes while hot combustion gases
flow around the outside of the tubes to transfer heat.
Question 13: What is the purpose of an economizer in a boiler system?
A. To reduce fuel costs by preheating feedwater using waste flue gas heat
B. To cool the steam before it enters the turbine
C. To filter ash from the flue gas
D. To increase the draft in the furnace
CORRECT ANSWER: A. To reduce fuel costs by preheating feedwater using waste flue gas heat
Rationale: An economizer captures residual heat from exiting flue gases to preheat the
incoming feedwater, improving overall boiler thermal efficiency.
Question 14: Which valve must be opened first when warming up a cold steam line to
prevent water hammer?
A. The main stop valve
B. The drain valve
C. The safety valve
D. The check valve
CORRECT ANSWER: B. The drain valve
Rationale: Opening the drain valve allows condensate to escape before steam is introduced,
preventing the accumulation of water that causes water hammer.
Question 15: What is the effect of scale buildup on boiler tubes?
A. It improves heat transfer efficiency
B. It acts as an insulator, causing tube overheating and potential failure
, C. It reduces the boiler pressure automatically
D. It prevents corrosion completely
CORRECT ANSWER: B. It acts as an insulator, causing tube overheating and potential failure
Rationale: Scale is a poor conductor of heat; its presence on tube surfaces impedes heat
transfer, causing the metal temperature to rise dangerously and potentially rupture.
Question 16: What is the primary purpose of a superheater?
A. To condense steam back into water
B. To raise the temperature of saturated steam above its boiling point
C. To remove moisture from the feedwater
D. To lower the pressure of the steam
CORRECT ANSWER: B. To raise the temperature of saturated steam above its boiling point
Rationale: A superheater increases the thermal energy of steam by heating it beyond
saturation, improving turbine efficiency and preventing condensation in steam lines.
Question 17: Which fuel type typically requires an atomizer for proper combustion in a
boiler?
A. Natural gas
B. Fuel oil
C. Coal
D. Wood
CORRECT ANSWER: B. Fuel oil
Rationale: Fuel oil must be broken into fine droplets (atomized) to mix thoroughly with air for
efficient and complete combustion in the furnace.
Question 18: What is the function of an air register in a burner assembly?
A. To measure the fuel flow
B. To control the amount and direction of combustion air entering the furnace
C. To ignite the fuel
D. To cool the burner tip
CORRECT ANSWER: B. To control the amount and direction of combustion air entering the
furnace
Rationale: Air registers adjust the airflow pattern and volume to ensure proper mixing with fuel
for stable and efficient flame characteristics.
Question 19: Why must boiler water be treated to control pH levels?
A. To make the water taste better
B. To prevent acidic corrosion and caustic embrittlement
C. To increase the boiling point significantly
D. To change the color of the water
CORRECT ANSWER: B. To prevent acidic corrosion and caustic embrittlement
Rationale: Maintaining proper alkalinity (pH) prevents acidic attack on metal surfaces and
avoids conditions that lead to caustic cracking of boiler components.
Question 20: What is the purpose of a flame scanner in a modern boiler control system?
A. To measure the temperature of the flame
B. To detect the presence of a stable flame and shut off fuel if lost
