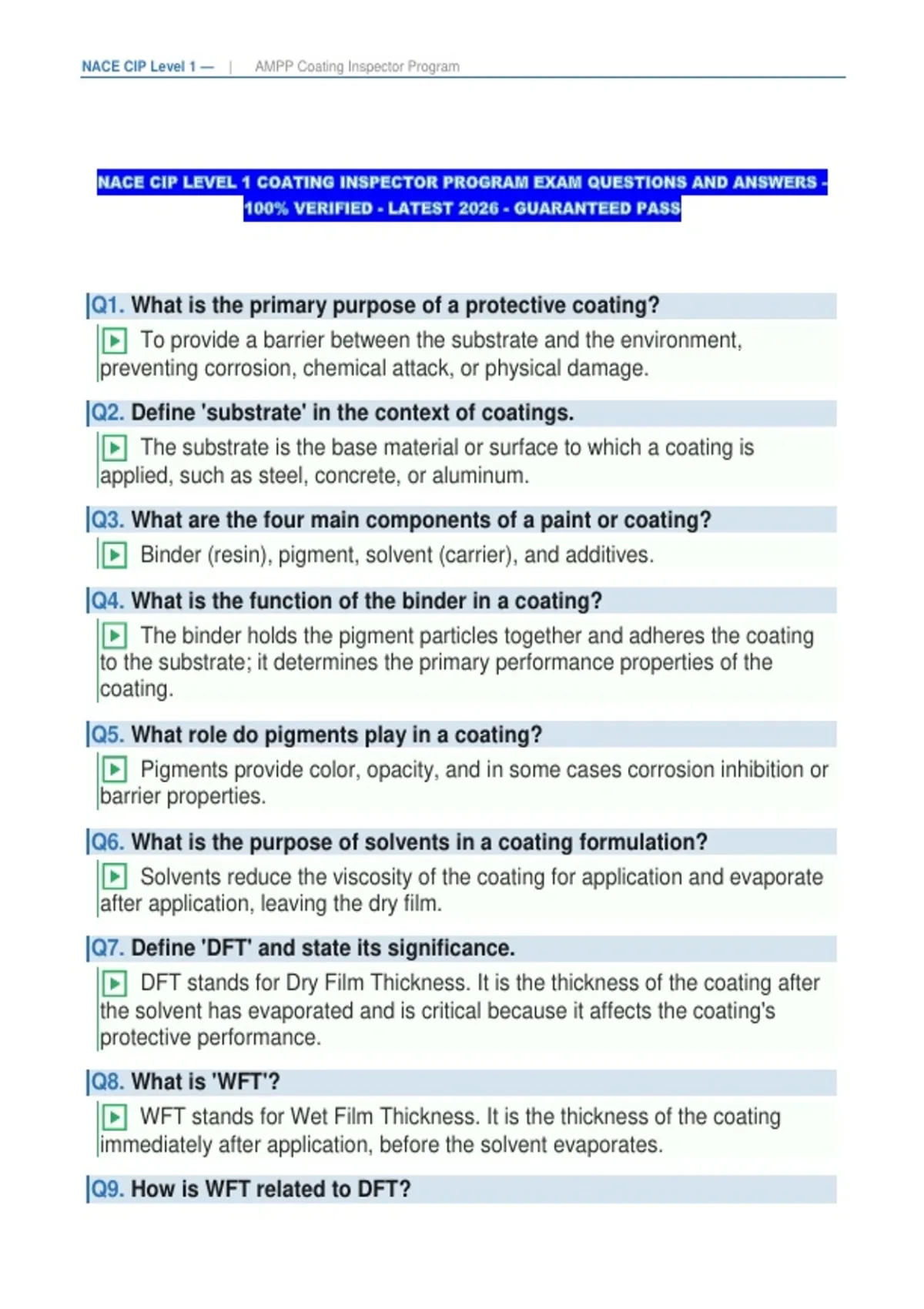

Q1. What is the primary purpose of a protective coating?
▶ To provide a barrier between the substrate and the environment,
preventing corrosion, chemical attack, or physical damage.
Q2. Define 'substrate' in the context of coatings.
▶ The substrate is the base material or surface to which a coating is
applied, such as steel, concrete, or aluminum.
Q3. What are the four main components of a paint or coating?
▶ Binder (resin), pigment, solvent (carrier), and additives.
Q4. What is the function of the binder in a coating?
▶ The binder holds the pigment particles together and adheres the coating
to the substrate; it determines the primary performance properties of the
coating.
Q5. What role do pigments play in a coating?
▶ Pigments provide color, opacity, and in some cases corrosion inhibition or
barrier properties.
Q6. What is the purpose of solvents in a coating formulation?
▶ Solvents reduce the viscosity of the coating for application and evaporate
after application, leaving the dry film.
Q7. Define 'DFT' and state its significance.
▶ DFT stands for Dry Film Thickness. It is the thickness of the coating after
the solvent has evaporated and is critical because it affects the coating's
protective performance.
Q8. What is 'WFT'?
▶ WFT stands for Wet Film Thickness. It is the thickness of the coating
immediately after application, before the solvent evaporates.
Q9. How is WFT related to DFT?
,NACE CIP Level 1 — | AMPP Coating Inspector Program
▶ WFT = DFT / Volume Solids (as a decimal). The WFT is always greater
than the DFT because solvents evaporate during curing.
Q10. What is volume solids content and why is it important?
▶ Volume solids is the percentage of the coating that remains as a dry film
after evaporation of solvents. It is used to calculate DFT from WFT and
theoretical coverage.
Q11. What is a 'coating system'?
▶ A coating system is a combination of multiple coating layers (primer,
intermediate, and topcoat) applied in sequence to achieve the desired level of
protection.
Q12. What is the function of a primer coat?
▶ The primer provides adhesion to the substrate, often provides corrosion
inhibition, and serves as a foundation for subsequent coats.
Q13. What is the function of an intermediate coat?
▶ Intermediate coats build film thickness and provide additional barrier
protection between the primer and topcoat.
Q14. What is the function of a topcoat?
▶ The topcoat provides the final layer of protection against the environment,
UV resistance, chemical resistance, and aesthetic appearance.
Q15. What is 'intercoat adhesion'?
▶ Intercoat adhesion is the bonding strength between successive coating
layers within a coating system.
Q16. Define 'theoretical spreading rate'.
▶ Theoretical spreading rate is the calculated area that can be covered per
unit volume of coating at a specified DFT, assuming no losses. It is expressed
in m²/L or ft²/gal.
Q17. What factors reduce the practical spreading rate below the
theoretical rate?
▶ Surface roughness, material losses due to overspray, spillage, surface
irregularities, and application method inefficiencies.
Q18. What is a 'two-component' (2K) coating?
, NACE CIP Level 1 — | AMPP Coating Inspector Program
▶ A two-component coating requires mixing a base component with a curing
agent (hardener) before application. It cures by chemical reaction rather than
solvent evaporation alone.
Q19. What is 'pot life'?
▶ Pot life is the length of time a two-component coating remains usable after
mixing at a specified temperature. Once exceeded, the coating should be
discarded.
Q20. What happens if a 2K coating is applied after pot life has expired?
▶ The coating may have reduced adhesion, incomplete curing, poor film
formation, and compromised performance properties.
Q21. Define 'induction time' (or induction period).
▶ Induction time is the waiting period required after mixing a 2K coating
before application, allowing an initial chemical reaction to improve application
properties and performance.
Q22. What is the difference between moisture-cure and solvent-based
coatings?
▶ Moisture-cure coatings cure by reacting with atmospheric moisture, while
solvent-based coatings cure primarily by solvent evaporation.
Q23. What is a 'zinc-rich primer' and why is it effective?
▶ A zinc-rich primer contains a high concentration of metallic zinc pigment
that provides cathodic (sacrificial) protection to steel substrates.
Q24. What is 'cathodic protection' in the context of coatings?
▶ Cathodic protection occurs when a less noble metal (like zinc) sacrificially
corrodes in preference to the more noble substrate metal (steel), protecting it
from corrosion.
Q25. Name three common coating binder/resin types.
▶ Epoxy, polyurethane, alkyd, acrylic, vinyl, chlorinated rubber, and zinc
silicate are common binder types.
Q26. What is an 'epoxy' coating system known for?
▶ Epoxy systems are known for excellent adhesion, chemical resistance,
hardness, and moisture resistance.
Q27. What is a 'polyurethane' topcoat known for?
