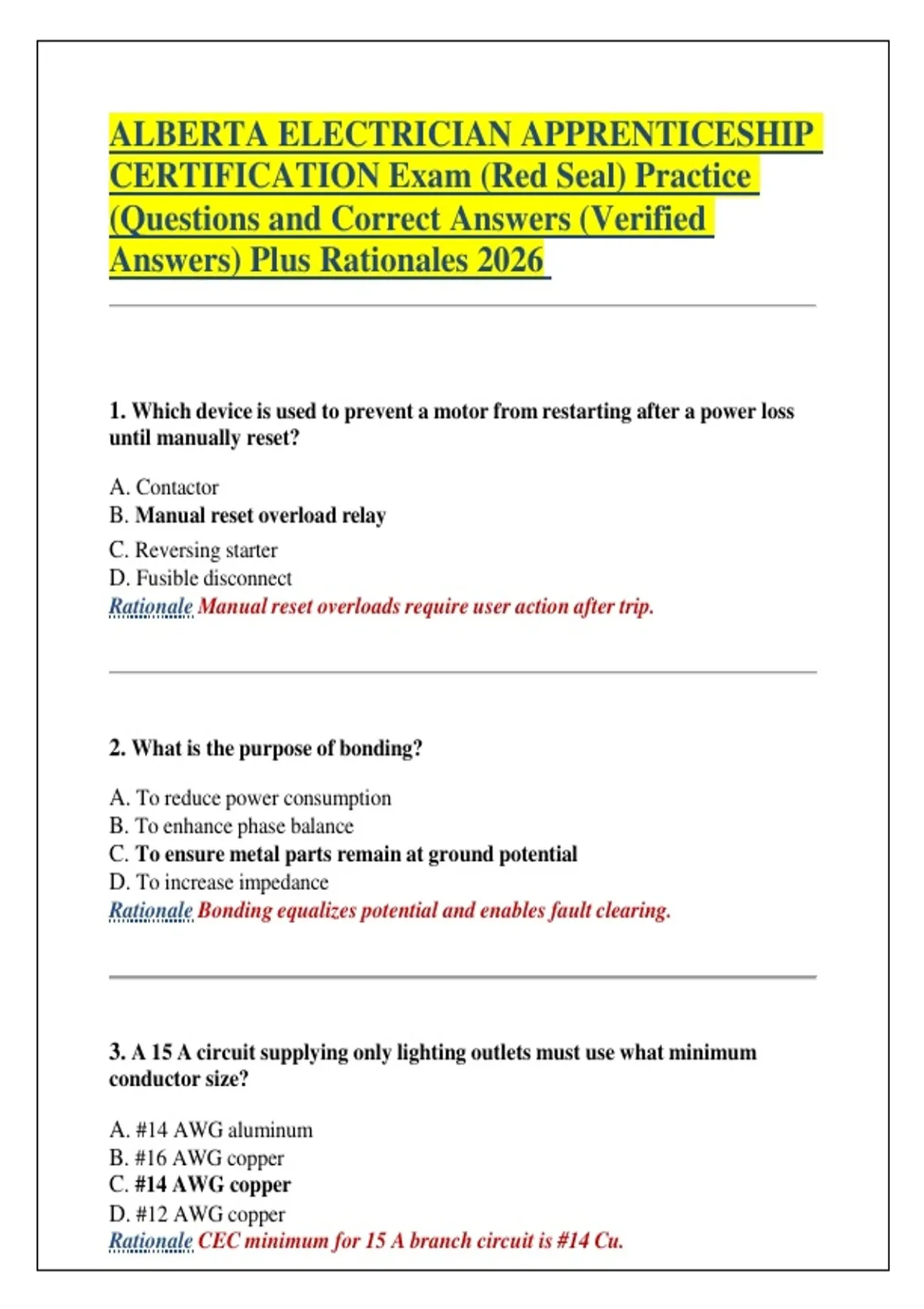

ALBERTA ELECTRICIAN APPRENTICESHIP
CERTIFICATION Exam (Red Seal) Practice
(Questions and Correct Answers (Verified
Answers) Plus Rationales 2026
1. Which device is used to prevent a motor from restarting after a power loss
until manually reset?
A. Contactor
B. Manual reset overload relay
C. Reversing starter
D. Fusible disconnect
Rationale Manual reset overloads require user action after trip.
2. What is the purpose of bonding?
A. To reduce power consumption
B. To enhance phase balance
C. To ensure metal parts remain at ground potential
D. To increase impedance
Rationale Bonding equalizes potential and enables fault clearing.
3. A 15 A circuit supplying only lighting outlets must use what minimum
conductor size?
A. #14 AWG aluminum
B. #16 AWG copper
C. #14 AWG copper
D. #12 AWG copper
Rationale CEC minimum for 15 A branch circuit is #14 Cu.
,4. What happens to resistance when conductor temperature increases?
A. Decreases
B. Stays the same
C. Increases
D. Becomes zero
Rationale Copper resistance rises with temperature.
5. Which transformer connection provides a stable neutral without a
centre tap?
A. Delta-delta
B. Wye-wye
C. Open delta
D. Delta-wye
Rationale Wye secondary provides neutral point naturally.
6. What is the minimum height for a receptacle installed outdoors in a
residential area?
A. 300 mm
B. Not less than 1 m above finished grade
C. 600 mm
D. No minimum
Rationale CEC requires outdoor receptacles at least 1 m above grade.
7. Which type of breaker is commonly used for motor protection?
A. Standard thermal-magnetic
B. Inverse-time breaker
C. Air breaker
D. Insulated-case breaker
,Rationale Inverse-time breakers match motor starting characteristics.
8. What is the main function of a capacitor in a single-phase motor?
A. Cool the motor
B. Reduce voltage drop
C. Create phase shift for starting torque
D. Control speed
Rationale Capacitors produce phase displacement to start the motor.
,
