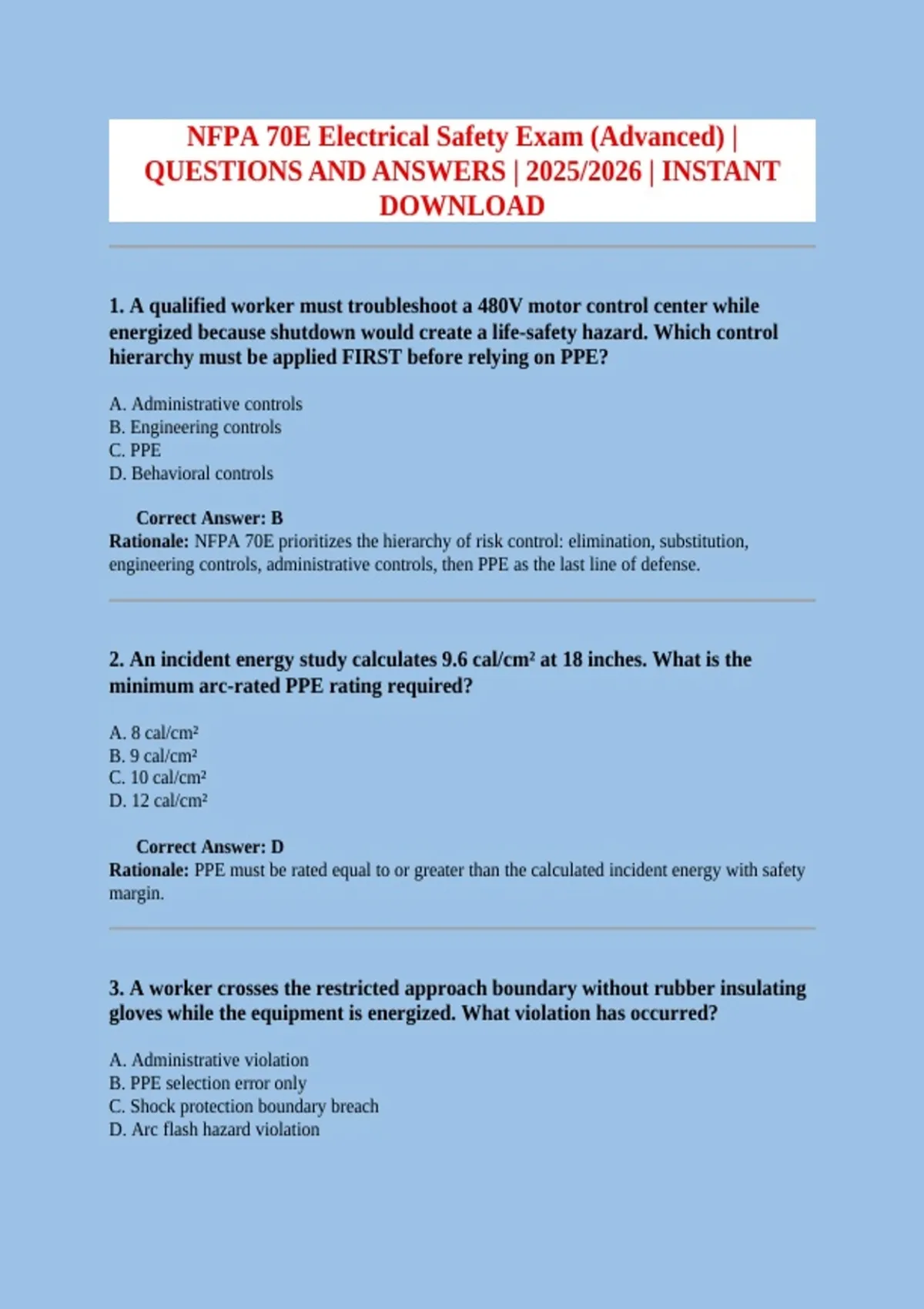

NFPA 70E Electrical Safety Exam (Advanced) |
QUESTIONS AND ANSWERS | 2025/2026 | INSTANT
DOWNLOAD
1. A qualified worker must troubleshoot a 480V motor control center while
energized because shutdown would create a life-safety hazard. Which control
hierarchy must be applied FIRST before relying on PPE?
A. Administrative controls
B. Engineering controls
C. PPE
D. Behavioral controls
✅ Correct Answer: B
Rationale: NFPA 70E prioritizes the hierarchy of risk control: elimination, substitution,
engineering controls, administrative controls, then PPE as the last line of defense.
2. An incident energy study calculates 9.6 cal/cm² at 18 inches. What is the
minimum arc-rated PPE rating required?
A. 8 cal/cm²
B. 9 cal/cm²
C. 10 cal/cm²
D. 12 cal/cm²
✅ Correct Answer: D
Rationale: PPE must be rated equal to or greater than the calculated incident energy with safety
margin.
3. A worker crosses the restricted approach boundary without rubber insulating
gloves while the equipment is energized. What violation has occurred?
A. Administrative violation
B. PPE selection error only
C. Shock protection boundary breach
D. Arc flash hazard violation
,✅ Correct Answer: C
Rationale: Restricted approach boundary addresses shock exposure; proper insulation and PPE
are mandatory.
4. Which document formally authorizes energized electrical work when de-
energizing is infeasible?
A. Job Safety Analysis
B. Lockout/Tagout Permit
C. Energized Electrical Work Permit
D. Arc Flash Label
✅ Correct Answer: C
Rationale: NFPA 70E requires a documented Energized Electrical Work Permit for justified
energized work.
5. A technician is wearing arc-rated clothing rated 12 cal/cm². The calculated
incident energy is 11.8 cal/cm². What is the compliance determination?
A. Non-compliant — insufficient margin
B. Compliant — PPE exceeds exposure
C. Non-compliant — must exceed by 25%
D. Compliant only if double-layered
✅ Correct Answer: B
Rationale: PPE must meet or exceed calculated incident energy.
6. Which condition most strongly invalidates an arc flash risk assessment?
A. Equipment older than 10 years
B. Incomplete fault current data
C. Missing maintenance records
D. Absence of warning labels
✅ Correct Answer: B
Rationale: Fault current and clearing time data are fundamental inputs for accurate incident
energy calculation.
,7. What is the primary purpose of establishing an electrically safe work
condition?
A. Reduce paperwork
B. Improve productivity
C. Eliminate electrical hazards
D. Simplify PPE requirements
✅ Correct Answer: C
Rationale: The objective is hazard elimination, not mitigation.
8. A breaker feeding a panel has unknown interrupting rating. What risk does
this introduce during an arc fault?
A. Increased shock hazard only
B. PPE failure
C. Potential equipment rupture and blast escalation
D. Ground fault nuisance tripping
✅ Correct Answer: C
Rationale: Inadequate interrupting capacity can cause catastrophic equipment failure.
9. Which task typically requires an Energized Electrical Work Permit?
A. Visual inspection with doors closed
B. Operating a breaker with covers on
C. Voltage testing inside exposed energized conductors
D. Reading panel labels
✅ Correct Answer: C
Rationale: Exposure to energized conductors requires formal authorization unless exempted.
10. A qualified worker must perform infrared thermography on energized
switchgear with doors open. Which hazard exists?
A. Shock only
B. Arc flash only
C. Both shock and arc flash
D. Mechanical only
, ✅ Correct Answer: C
Rationale: Open energized equipment exposes workers to both hazards.
11. What determines the arc flash boundary?
A. Voltage class
B. PPE category
C. Distance at which incident energy equals 1.2 cal/cm²
D. Restricted approach boundary
✅ Correct Answer: C
Rationale: Arc flash boundary is based on second-degree burn threshold.
12. Which factor MOST influences incident energy magnitude?
A. Cable length
B. Clearing time of protective device
C. Ambient temperature
D. Conductor color
✅ Correct Answer: B
Rationale: Longer clearing time significantly increases incident energy exposure.
13. When applying lockout/tagout, which step verifies de-energization?
A. Visual inspection
B. Voltage testing with a properly rated meter
C. Tag placement
D. Supervisor approval
✅ Correct Answer: B
Rationale: Absence of voltage must be verified using live-dead-live testing.
14. A worker wears non–arc-rated rain gear over arc-rated clothing. What risk
exists?
