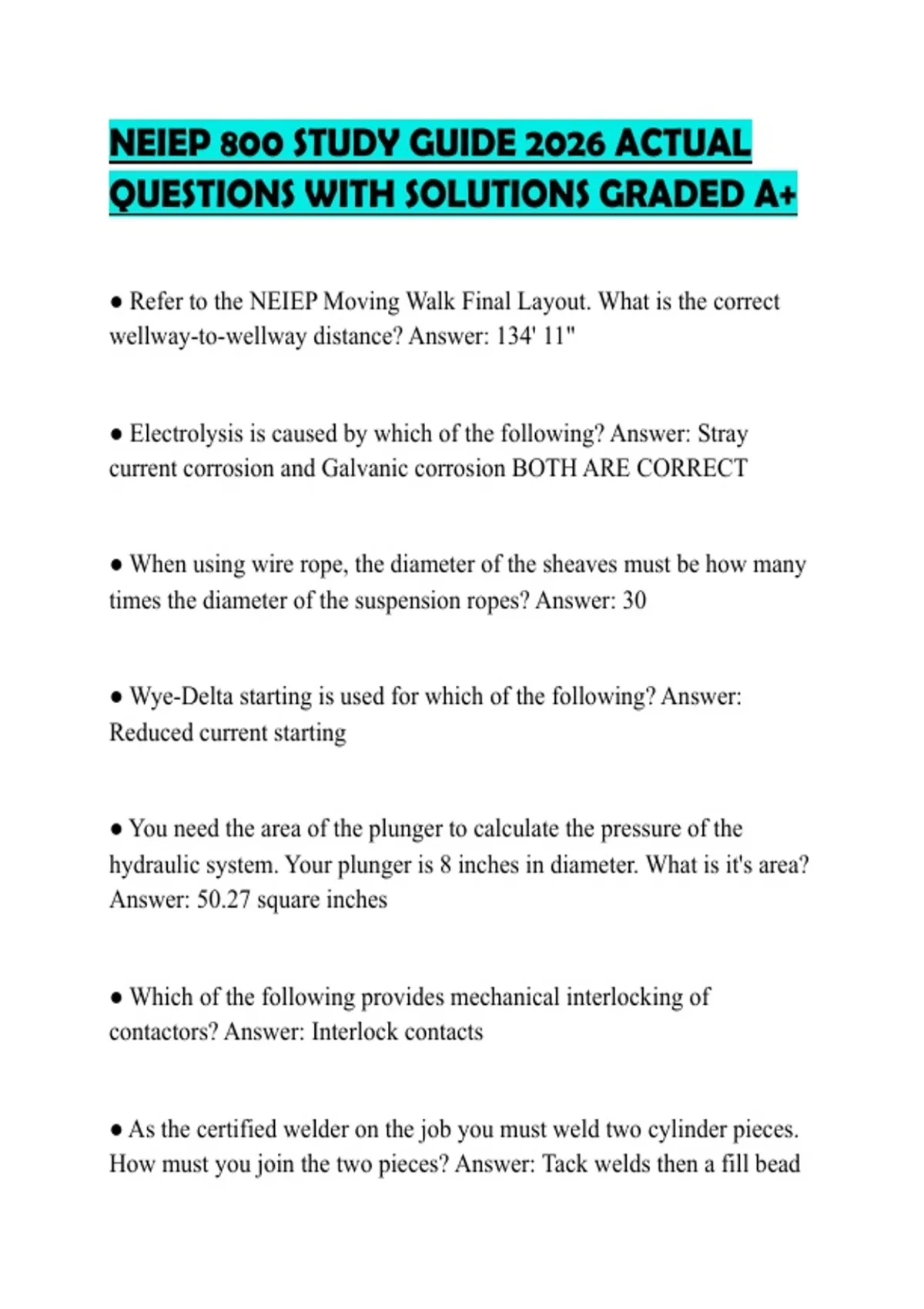

NEIEP 800 STUDY GUIDE 2026 ACTUAL
QUESTIONS WITH SOLUTIONS GRADED A+
● Refer to the NEIEP Moving Walk Final Layout. What is the correct
wellway-to-wellway distance? Answer: 134' 11"
● Electrolysis is caused by which of the following? Answer: Stray
current corrosion and Galvanic corrosion BOTH ARE CORRECT
● When using wire rope, the diameter of the sheaves must be how many
times the diameter of the suspension ropes? Answer: 30
● Wye-Delta starting is used for which of the following? Answer:
Reduced current starting
● You need the area of the plunger to calculate the pressure of the
hydraulic system. Your plunger is 8 inches in diameter. What is it's area?
Answer: 50.27 square inches
● Which of the following provides mechanical interlocking of
contactors? Answer: Interlock contacts
● As the certified welder on the job you must weld two cylinder pieces.
How must you join the two pieces? Answer: Tack welds then a fill bead
, ● Once a plunger joint has been completed, what steps should be
followed to prevent damage to the packing? Answer: Sand with emery
cloth
● Under which of the following conditions will the buzzer (BZT) sound?
Answer: When the handrail speed is 15% below step speed.
● Refer to the NEIEP Escalator Final Layout diagram. What is the total
distance from the first floor finished floor height and the second floor
finished floor height? Answer: 13' 6"
● Refer to the NEIEP Escalator Final Layout diagram. What is the
correct measurement to align the truss in the center of the wellway?
Answer: 7' 6 1/2"
● What is the function of the lower newel wheel on a moving walk with
solid balustrades? Answer: It acts as an idler
● Which of the following will determine the leveling speed of an
elevator? Answer: Rate of flow in gpm
● Which of the following best describes the rack and pinion drive motor
brake? Answer: It is spring set and electrically released
