Exam (elaborations)

Plumbing Drainage and Venting Code – Pipe Slopes, Trap Seal Depths, and Cleanout Requirements Exam Study Guide (2026)

Rating
-
Sold
-
Pages
7
Grade
A+
Uploaded on
09-03-2026
Written in
2025/2026

This document contains exam-style questions and verified answers covering plumbing drainage and venting code requirements. It reviews pipe slope standards for drainage systems, trap seal depth limits, vent sizing requirements, and cleanout placement rules used in plumbing installations. The material also explains trap arm definitions, venting methods, building drain and sewer sizing, DWV testing methods, and installation standards designed to prevent siphonage, blockages, and sewer gas entry in plumbing systems. Keywords: plumbing drainage pipe slope minimum slope drainage piping trap seal depth plumbing plumbing vent system purpose trap arm plumbing definition water closet vent size building drain minimum size building sewer plumbing size cleanout spacing plumbing code stack vent plumbing system wet vent plumbing design circuit vent plumbing code drainage system water test DWV air test plumbing plumbing vent termination roof

Show more Read less
Institution
Plumbing
Course
Plumbing

Content preview

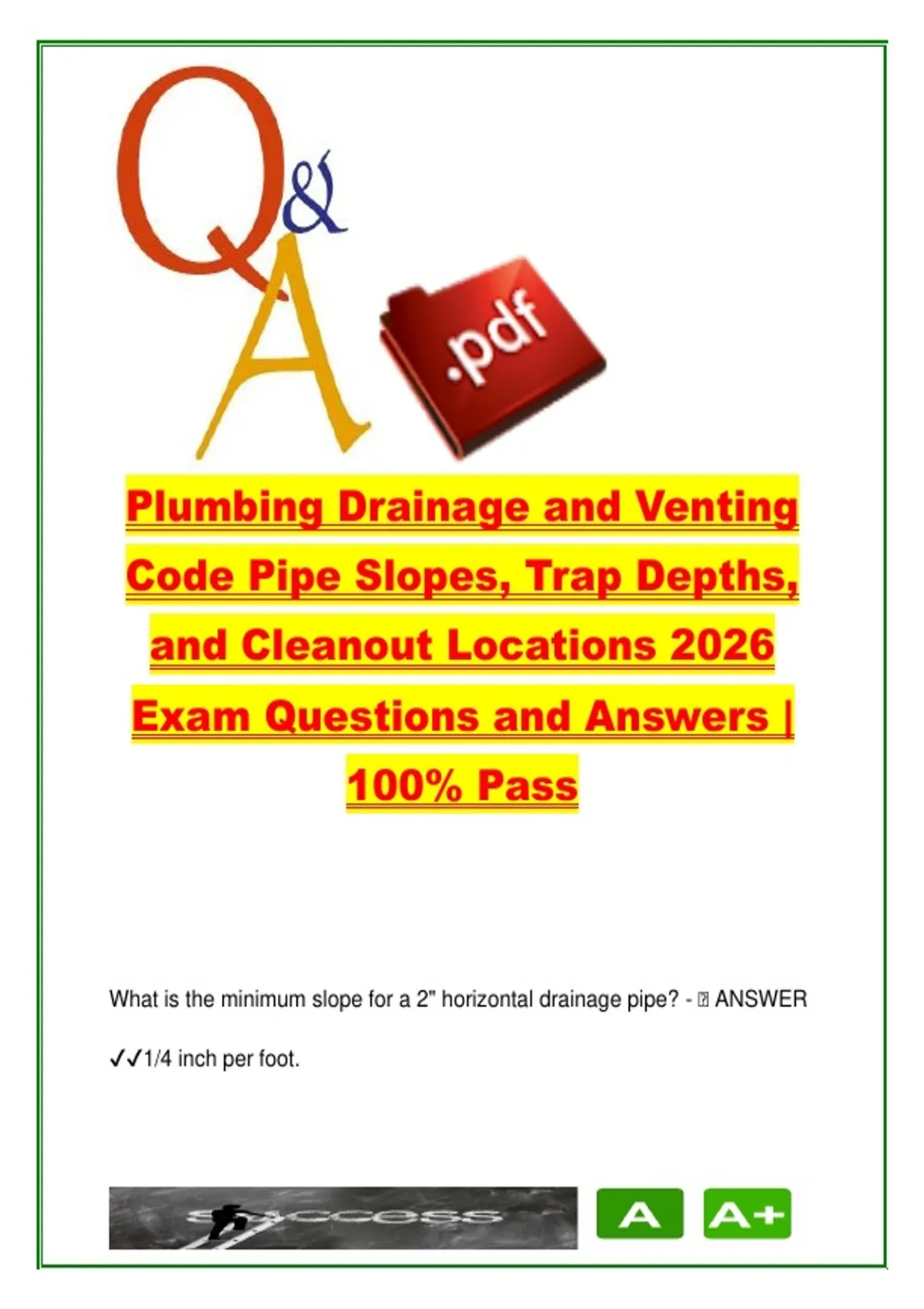

Plumbing Drainage and Venting
Code Pipe Slopes, Trap Depths,
and Cleanout Locations 2026
Exam Questions and Answers |
100% Pass



What is the minimum slope for a 2" horizontal drainage pipe? - 🧠 ANSWER

✔✔1/4 inch per foot.

, What is the minimum slope for a 3" horizontal drainage pipe? - 🧠 ANSWER

✔✔1/4 inch per foot.


What is the minimum slope for a 4" horizontal drainage pipe? - 🧠 ANSWER

✔✔1/8 inch per foot.


What is the minimum trap seal depth? - 🧠 ANSWER ✔✔2 inches.


What is the maximum trap seal depth? - 🧠 ANSWER ✔✔4 inches.


What is the purpose of a plumbing vent? - 🧠 ANSWER ✔✔To maintain

atmospheric pressure in the drainage system and protect trap seals.


What is a trap arm? - 🧠 ANSWER ✔✔The portion of pipe between the trap

weir and the vent connection.


What determines the maximum trap arm length? - 🧠 ANSWER ✔✔Pipe

diameter and slope.


What is the minimum size vent for a water closet? - 🧠 ANSWER ✔✔2

inches.

What is the minimum diameter of vent through the roof in cold climates? - 🧠

ANSWER ✔✔3 inches.
