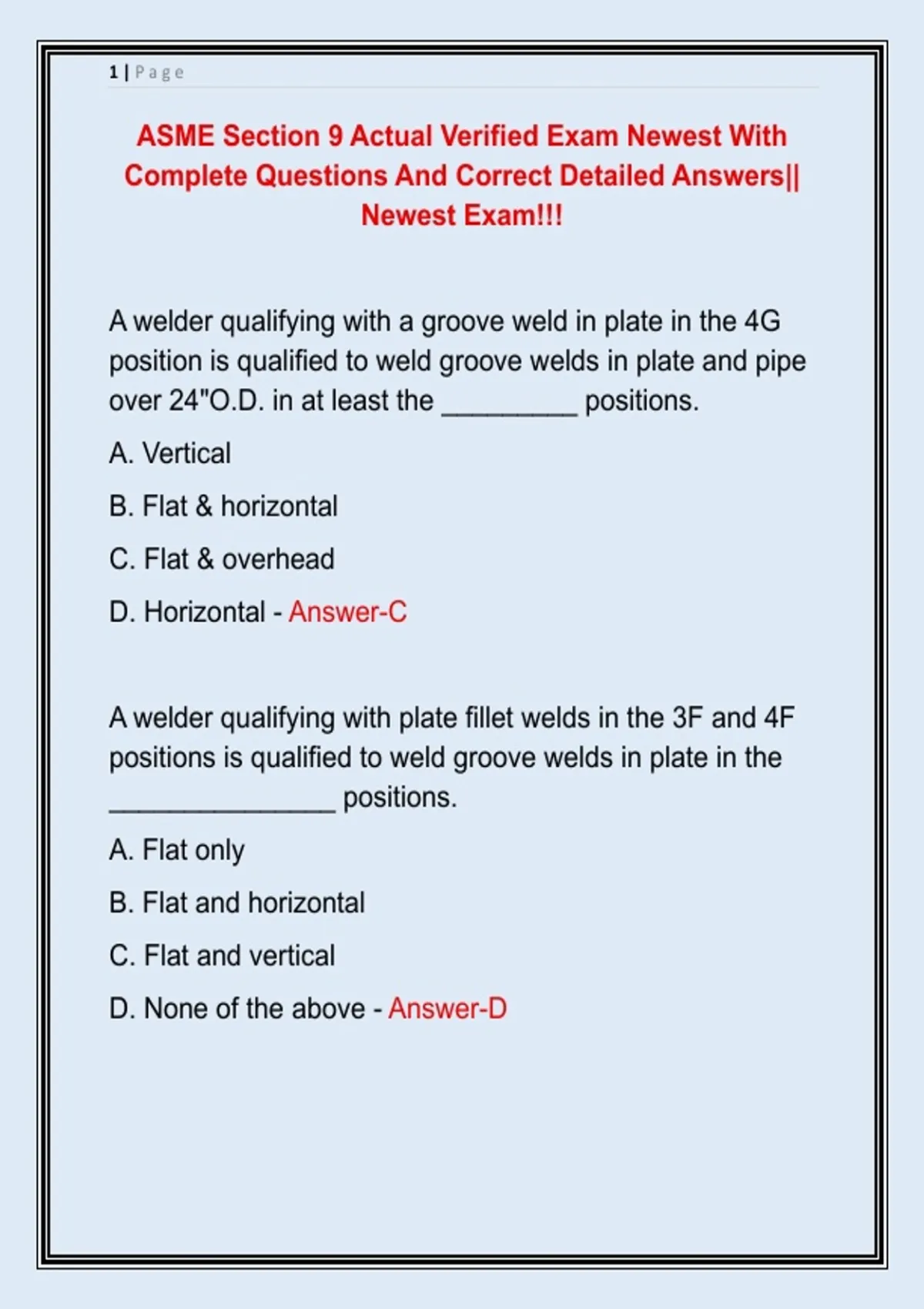

ASME Section 9 Actual Verified Exam Newest With
Complete Questions And Correct Detailed Answers||
Newest Exam!!!
A welder qualifying with a groove weld in plate in the 4G
position is qualified to weld groove welds in plate and pipe
over 24"O.D. in at least the _________ positions.
A. Vertical
B. Flat & horizontal
C. Flat & overhead
D. Horizontal - Answer-C
A welder qualifying with plate fillet welds in the 3F and 4F
positions is qualified to weld groove welds in plate in the
_______________ positions.
A. Flat only
B. Flat and horizontal
C. Flat and vertical
D. None of the above - Answer-D
,2|Page
A welder qualifying by making a groove weld on pipe with
an O.D. of 3/4" in the 5G position is qualified to weld
groove welds in:
A. 1/2" O.D. Pipe in the overhead position
B. 6" O.D. Pipe in the vertical position
C. 3/4" O.D. pipe in the horizontal position
D. None of the above - Answer-B
In general, qualification on groove welds also qualifies a
welder to make:
A. Stud welds
B. Overhand welds
C. Fillet welds
D. All of the above - Answer-C
Charpy V-notch tests are performed to determine a
weldment's
A. Tensile strength
B. Ductility
C. Notch toughness
D. All of above - Answer-C
,3|Page
A welder making a groove weld using the SAW process on
P1 materials may be qualified using radiography.
A. True
B. False - Answer-A
When a tensile specimen breaks in the base metal outside
of the weld or fusion line, the strength recorded may be at
most ___ below the specified tensile and be accepted.
A. 3.5%
B. 0.5%
C. 5%
D. All of the above - Answer-C
Guided-bend specimens shall have no open defects in the
weld or heat effected zone exceeding ________________
measured in any direction on the convex surface of the
specimen after bending.
A. 1/16"
B. 3/32"
C. 1/8"
D. None of the above - Answer-C
, 4|Page
When using radiographs to qualify welders, the
acceptance standards used are found in
A. ASME Section V
B. ASME Section IX
C. ASME Section VIII
D. The referencing code - Answer-B
The purpose of the WPS and PQR is to determine that:
A. the welder is qualified
B. the base metals are strong enough
C. the weldment has the desired properties
D. the skill of the welder - Answer-C
The WPS lists:
A. nonessential variables
B. essential variables
C. ranges for 1 & 2 above
D. all of the above - Answer-D
The PQR must list:
