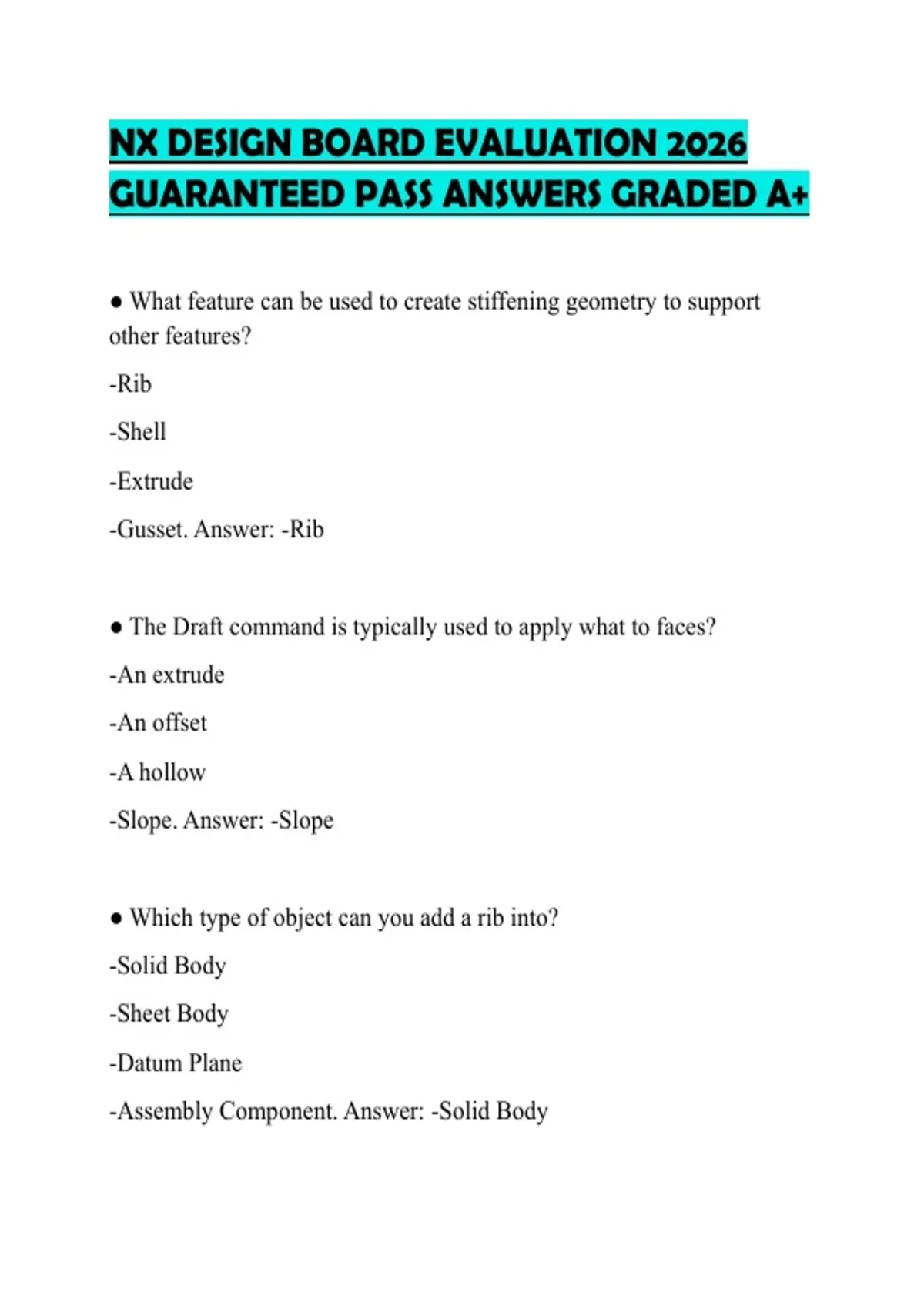

NX DESIGN BOARD EVALUATION 2026
GUARANTEED PASS ANSWERS GRADED A+
● What feature can be used to create stiffening geometry to support
other features?
-Rib
-Shell
-Extrude
-Gusset. Answer: -Rib
● The Draft command is typically used to apply what to faces?
-An extrude
-An offset
-A hollow
-Slope. Answer: -Slope
● Which type of object can you add a rib into?
-Solid Body
-Sheet Body
-Datum Plane
-Assembly Component. Answer: -Solid Body
,● Which one of these is not a type of creation in the Face Blend
command?
-Two-face
-Three-face
-Face and Vector
-Feature Intersection Edge. Answer: -Face and Vector
● Which one of these command is the most efficient and preferable way
to create stiffeners on molded parts?
-Extrude
-Rib
-Thicken
-Flange. Answer: -Rib
● The Rib feature can only be created in what situation?
-In a pocket area were the rib extends down and to the side walls
-There is no restriction on where ribs can be created
-Must be created on the top of a model and projected down to the
surface
-Can only can be created on surface bodies. Answer: -In a pocket area
were the rib extends down and to the side walls
, ● To create a blend between three faces at the same time, what command
would you use?
-Edge Blend
-Styled Blend
-Aesthetic Face Blend
-Face Blend. Answer: -Face Blend
● What command could be used to create a hollow molded part?
-hollow
-Shell
-subtract
-split body. Answer: -Shell
● What is a unique ability of Face Blend over Edge Blend?
-Can create a blend between two connected faces
-Can create a blend between two faces that are not connected
-Can create a blend that is G1 tangent
-Can create a blend that is G2 curvature. Answer: -Can create a blend
between two faces that are not connected
● What option in the extrude dialog will project an extrude to the side
walls of a pocket?
-Open Profile Smart Volume
GUARANTEED PASS ANSWERS GRADED A+
● What feature can be used to create stiffening geometry to support
other features?
-Rib
-Shell
-Extrude
-Gusset. Answer: -Rib
● The Draft command is typically used to apply what to faces?
-An extrude
-An offset
-A hollow
-Slope. Answer: -Slope
● Which type of object can you add a rib into?
-Solid Body
-Sheet Body
-Datum Plane
-Assembly Component. Answer: -Solid Body
,● Which one of these is not a type of creation in the Face Blend
command?
-Two-face
-Three-face
-Face and Vector
-Feature Intersection Edge. Answer: -Face and Vector
● Which one of these command is the most efficient and preferable way
to create stiffeners on molded parts?
-Extrude
-Rib
-Thicken
-Flange. Answer: -Rib
● The Rib feature can only be created in what situation?
-In a pocket area were the rib extends down and to the side walls
-There is no restriction on where ribs can be created
-Must be created on the top of a model and projected down to the
surface
-Can only can be created on surface bodies. Answer: -In a pocket area
were the rib extends down and to the side walls
, ● To create a blend between three faces at the same time, what command
would you use?
-Edge Blend
-Styled Blend
-Aesthetic Face Blend
-Face Blend. Answer: -Face Blend
● What command could be used to create a hollow molded part?
-hollow
-Shell
-subtract
-split body. Answer: -Shell
● What is a unique ability of Face Blend over Edge Blend?
-Can create a blend between two connected faces
-Can create a blend between two faces that are not connected
-Can create a blend that is G1 tangent
-Can create a blend that is G2 curvature. Answer: -Can create a blend
between two faces that are not connected
● What option in the extrude dialog will project an extrude to the side
walls of a pocket?
-Open Profile Smart Volume
