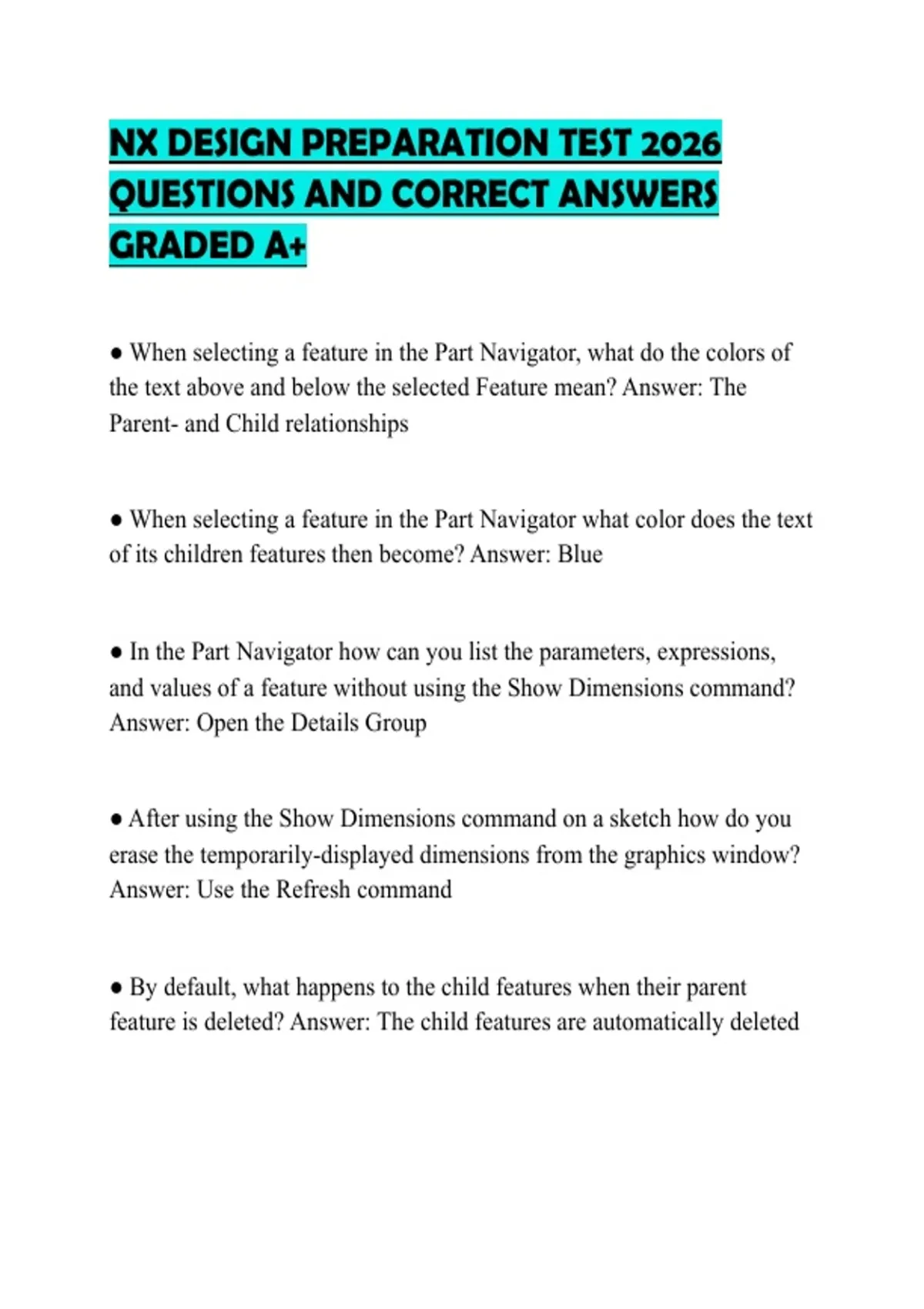

NX DESIGN PREPARATION TEST 2026
QUESTIONS AND CORRECT ANSWERS
GRADED A+
● When selecting a feature in the Part Navigator, what do the colors of
the text above and below the selected Feature mean? Answer: The
Parent- and Child relationships
● When selecting a feature in the Part Navigator what color does the text
of its children features then become? Answer: Blue
● In the Part Navigator how can you list the parameters, expressions,
and values of a feature without using the Show Dimensions command?
Answer: Open the Details Group
● After using the Show Dimensions command on a sketch how do you
erase the temporarily-displayed dimensions from the graphics window?
Answer: Use the Refresh command
● By default, what happens to the child features when their parent
feature is deleted? Answer: The child features are automatically deleted
, ● Which Synchronous Modeling command can be used to change the
radii of this feature regardless of the feature history? Answer: Resize
blend
● Which Synchronous Modeling command can be used to transform
faces in a linear direction, angular direction, or from point to point?
Answer: Move Face
● What type of models can synchronous modeling commands be used
on? Answer: Both history based and non-parametric models
● Synchronous modeling commands work best on what types of faces?
Answer: Analytical faces
● What is the primary workflow of synchronous modeling? Answer:
Edit non-parametric models
● Synchronous modeling workflows can be utilized to modify models
that consist of: Answer: Translated data imported from another CAD
system; Non-parametric geometry, Parametric NX geometry with model
history
● Which of the following statements is true when using Resize Chamfer,
on selected faces? Answer: Must have a constant width
QUESTIONS AND CORRECT ANSWERS
GRADED A+
● When selecting a feature in the Part Navigator, what do the colors of
the text above and below the selected Feature mean? Answer: The
Parent- and Child relationships
● When selecting a feature in the Part Navigator what color does the text
of its children features then become? Answer: Blue
● In the Part Navigator how can you list the parameters, expressions,
and values of a feature without using the Show Dimensions command?
Answer: Open the Details Group
● After using the Show Dimensions command on a sketch how do you
erase the temporarily-displayed dimensions from the graphics window?
Answer: Use the Refresh command
● By default, what happens to the child features when their parent
feature is deleted? Answer: The child features are automatically deleted
, ● Which Synchronous Modeling command can be used to change the
radii of this feature regardless of the feature history? Answer: Resize
blend
● Which Synchronous Modeling command can be used to transform
faces in a linear direction, angular direction, or from point to point?
Answer: Move Face
● What type of models can synchronous modeling commands be used
on? Answer: Both history based and non-parametric models
● Synchronous modeling commands work best on what types of faces?
Answer: Analytical faces
● What is the primary workflow of synchronous modeling? Answer:
Edit non-parametric models
● Synchronous modeling workflows can be utilized to modify models
that consist of: Answer: Translated data imported from another CAD
system; Non-parametric geometry, Parametric NX geometry with model
history
● Which of the following statements is true when using Resize Chamfer,
on selected faces? Answer: Must have a constant width
