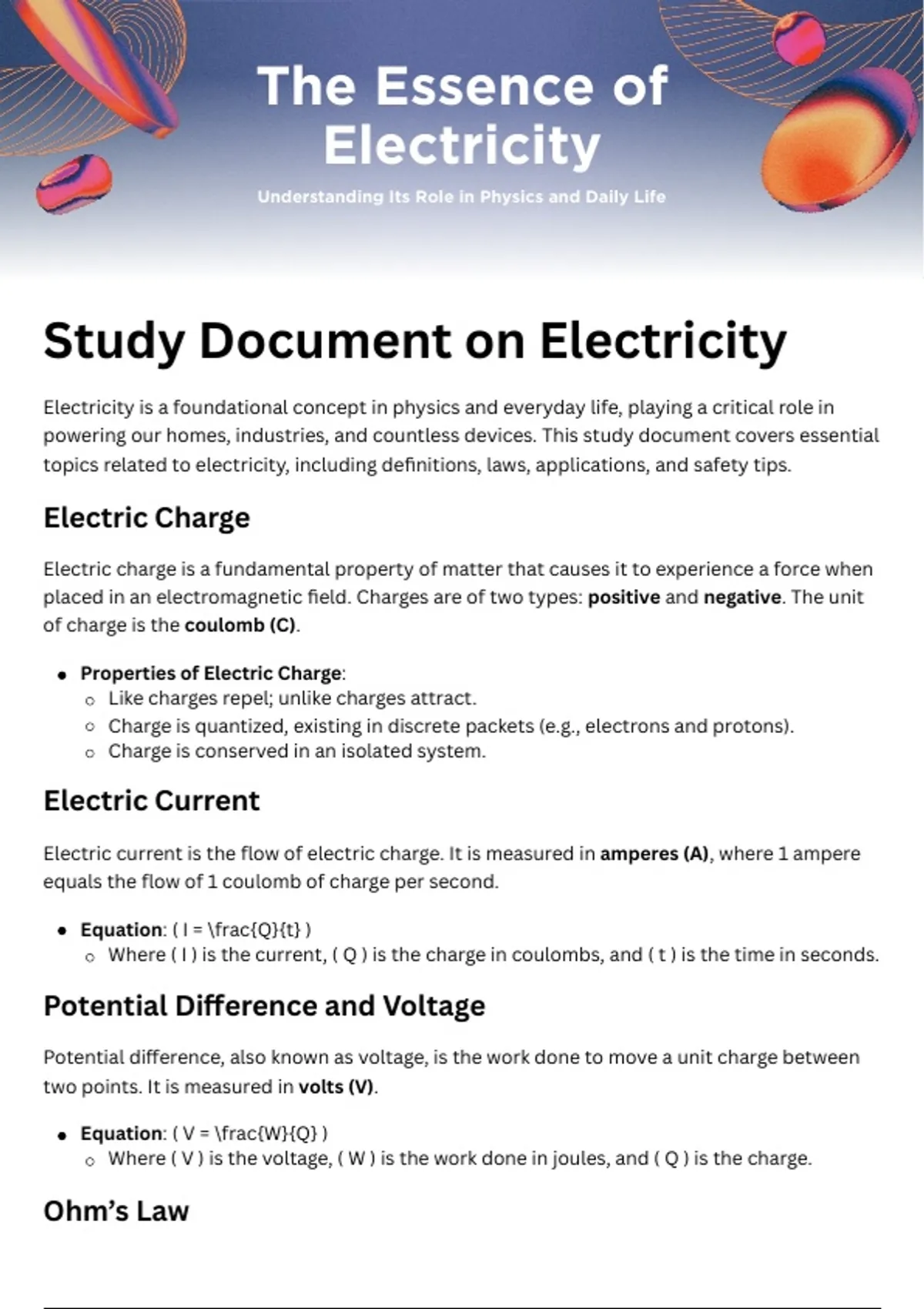

The Essence of
Electricity
Understanding Its Role in Physics and Daily Life
Study Document on Electricity
Electricity is a foundational concept in physics and everyday life, playing a critical role in
powering our homes, industries, and countless devices. This study document covers essential
topics related to electricity, including definitions, laws, applications, and safety tips.
Electric Charge
Electric charge is a fundamental property of matter that causes it to experience a force when
placed in an electromagnetic field. Charges are of two types: positive and negative. The unit
of charge is the coulomb (C).
Properties of Electric Charge:
Like charges repel; unlike charges attract.
Charge is quantized, existing in discrete packets (e.g., electrons and protons).
Charge is conserved in an isolated system.
Electric Current
Electric current is the flow of electric charge. It is measured in amperes (A), where 1 ampere
equals the flow of 1 coulomb of charge per second.
Equation: ( I = \frac{Q}{t} )
Where ( I ) is the current, ( Q ) is the charge in coulombs, and ( t ) is the time in seconds.
Potential Difference and Voltage
Potential difference, also known as voltage, is the work done to move a unit charge between
two points. It is measured in volts (V).
Equation: ( V = \frac{W}{Q} )
Where ( V ) is the voltage, ( W ) is the work done in joules, and ( Q ) is the charge.
Ohm’s Law
,Ohm's Law defines the relationship between voltage, current, and resistance in a conductor.
Equation: ( V = IR )
Where ( V ) is the voltage, ( I ) is the current, and ( R ) is the resistance in ohms (Ω).
Resistance
Resistance is the opposition to the flow of electric current. It depends on material, length,
cross-sectional area, and temperature.
Factors Affecting Resistance:
Material: Conductors have low resistance; insulators have high resistance.
Length: Longer wires have more resistance.
Cross-Sectional Area: Wider wires have less resistance.
Temperature: Higher temperatures typically increase resistance in conductors.
Resistors in Series and Parallel Circuits
Resistors can be arranged in series or parallel configurations, affecting the total resistance.
Series Circuits
Total Resistance: ( R_{\text{total}} = R_1 + R_2 + R_3 + \ldots )
Current: Same through all resistors.
Voltage: Divides across resistors.
Parallel Circuits
Total Resistance: ( \frac{1}{R_{\text{total}}} = \frac{1}{R_1} + \frac{1}{R_2} + \frac{1}{R_3} +
\ldots )
Current: Divides across resistors.
Voltage: Same across all resistors.
Heating Effect of Electric Current
When electric current flows through a conductor, it produces heat. This is known as the Joule
heating effect.
Equation: ( H = I^2Rt )
Where ( H ) is the heat produced, ( I ) is the current, ( R ) is the resistance, and ( t ) is the
time.
Applications: Electric heaters, toasters, and incandescent bulbs.
Electric Power
Electric power is the rate at which electrical energy is consumed or produced by a device. It is
measured in watts (W).
, Equation: ( P = VI )
Where ( P ) is the power, ( V ) is the voltage, and ( I ) is the current.
Alternate Formulas: ( P = I^2R ) or ( P = \frac{V^2}{R} )
Electrical Energy Consumption
Electrical energy consumption is typically measured in kilowatt-hours (kWh), which is the
energy used by a 1-kilowatt device running for one hour.
Equation: ( E = Pt )
Where ( E ) is the energy in kilowatt-hours, ( P ) is the power in kilowatts, and ( t ) is the
time in hours.
Calculating Cost: Multiply the energy consumed by the cost per kWh.
Household Electric Circuits
Household circuits are typically parallel to ensure that all devices receive the same voltage
and operate independently.
Safety Features: Include circuit breakers and fuses that prevent overloads by breaking
the circuit if the current exceeds a safe level.
Circuit Diagram Symbols:
Battery: Represents the power source.
Resistor: Represents devices with resistance.
Switch: Controls the flow of current.
Solved Examples
Example 1: Calculating Resistance
Problem: A 12 V battery is connected across a resistor and produces a current of 2 A. What is
the resistance of the resistor?
Solution: Using Ohm’s Law, ( R = \frac{V}{I} = \frac{12 , \text{V}}{2 , \text{A}} = 6 , \Omega ).
Example 2: Energy Consumption
Problem: A 100 W bulb is used for 5 hours. Calculate the energy consumed and the cost if the
rate is $0.12 per kWh.
Solution:
Energy ( E = Pt = 0.1 , \text{kW} \times 5 , \text{h} = 0.5 , \text{kWh} ).
Cost = ( 0.5 , \text{kWh} \times $0.12/\text{kWh} = $0.06 ).
Real-Life Applications
Electronics: Powering devices like computers, phones, and TVs.
, Transportation: Electric vehicles use electric motors.
Healthcare: Equipment like MRI machines and X-ray machines rely on electricity.
Safety Tips
Avoid Overloading Circuits: Use circuit breakers and fuses.
Use Proper Insulation: To prevent electric shocks.
Regular Maintenance: Check wiring for wear and tear.
Revision Summary
Electric Charge: Fundamental property, measured in coulombs.
Electric Current: Flow of charge, measured in amperes.
Voltage: Work done per unit charge, measured in volts.
Ohm’s Law: ( V = IR ).
Resistance: Opposition to current; affects heat production.
Series and Parallel Circuits: Affect current and voltage distribution.
Electric Power: Rate of energy usage, measured in watts.
Energy Consumption: Measured in kilowatt-hours; affects billing.
Household Circuits: Use parallel configurations for safety and reliability.
By understanding these concepts, you can appreciate the role electricity plays in modern
technology and everyday life. Always prioritize safety and efficiency when working with
electrical systems.
