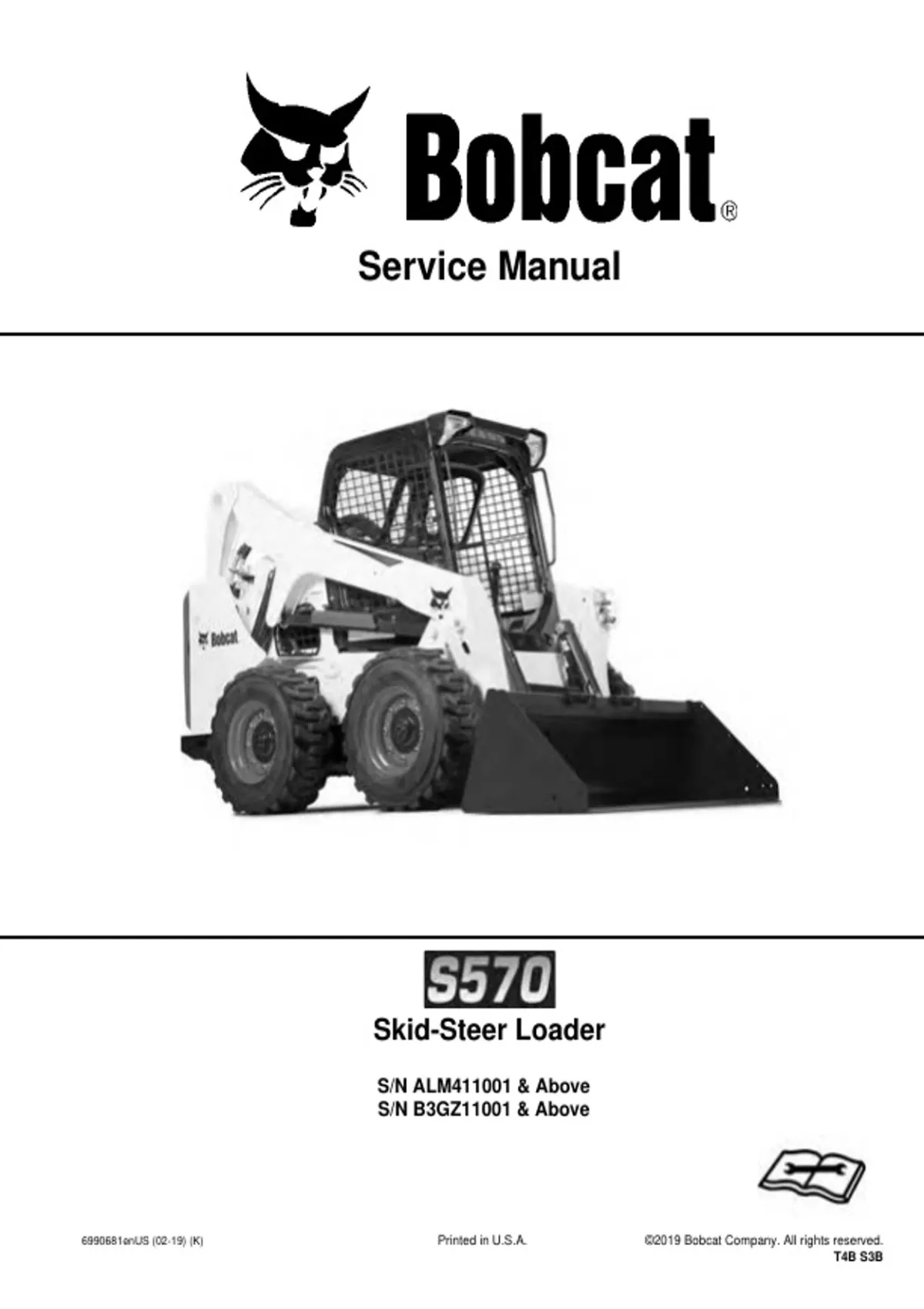

Service Manual
Skid-Steer Loader
S/N ALM411001 & Above
S/N B3GZ11001 & Above
6990681enUS (02-19) (K) Printed in U.S.A. ©2019 Bobcat Company. All rights reserved.
T4B S3B
,
, MAINTENANCE SAFETY
Instructions are necessary before operating or servicing machine. Read and
understand the Operation & Maintenance Manual, Operator’s Handbook and
WARNING signs (decals) on machine. Follow warnings and instructions in the manuals
when making repairs, adjustments or servicing. Check for correct function after
adjustments, repairs or service. Untrained operators and failure to follow
instructions can cause injury or death. W-2003-0807
Safety Alert Symbol: This symbol with a warning statement, means: “Warning, be alert! Your safety is
involved!” Carefully read the message that follows.
CORRECT CORRECT CORRECT
P-90216 NA1694 NA1693
Never service the Bobcat Skid- Use the correct procedure to lift or Cleaning and maintenance are
Steer Loader without instructions. lower operator cab. required daily.
WRONG WRONG WRONG
NA1674 NA1695 NA1680
Have good ventilation when Disconnecting or loosening any Never work on loader with lift
welding or grinding painted hydraulic tubeline, hose, fitting, arms up unless lift arms are held
parts. component or a part failure can by an approved lift arm support
Wear dust mask when grinding cause lift arms to drop. Do not go device. Replace if damaged.
painted parts. Toxic dust and gas under lift arms when raised Never modify equipment or add
can be produced. unless supported by an attachments not approved by
Avoid exhaust fume leaks which approved lift arm support device. Bobcat Company.
can kill without warning. Exhaust Replace it if damaged.
system must be tightly sealed.
WRONG WRONG WRONG
NA1682 NA1683 B-6589
Stop, cool and clean engine of Keep body, jewelry and clothing Lead-acid batteries produce
flammable materials before away from moving parts, flammable and explosive gases.
checking fluids. electrical contact, hot parts and Keep arcs, sparks, flames and
Never service or adjust loader exhaust. lighted tobacco away from
with the engine running unless Wear eye protection to guard batteries.
instructed to do so in the from battery acid, compressed Batteries contain acid which
manual. springs, fluids under pressure burns eyes or skin on contact.
Avoid contact with leaking and flying debris when engines Wear protective clothing. If acid
hydraulic fluid or diesel fuel are running or tools are used. contacts body, flush well with
under pressure. It can penetrate Use eye protection approved for water. For eye contact flush well
the skin or eyes. type of welding. and get immediate medical
Never fill fuel tank with engine Keep rear door closed except for attention.
running, while smoking or when service. Close and latch door
near open flame. before operating the loader.
Maintenance procedures which are given in the Operation & Maintenance Manual can be performed by the owner/
operator without any specific technical training. Maintenance procedures which are not in the Operation & Maintenance
Manual must be performed ONLY BY QUALIFIED BOBCAT SERVICE PERSONNEL. Always use genuine Bobcat
replacement parts. The Service Safety Training Course is available from your Bobcat dealer.
MSW39-0609
1-1 S570 Service Manual
