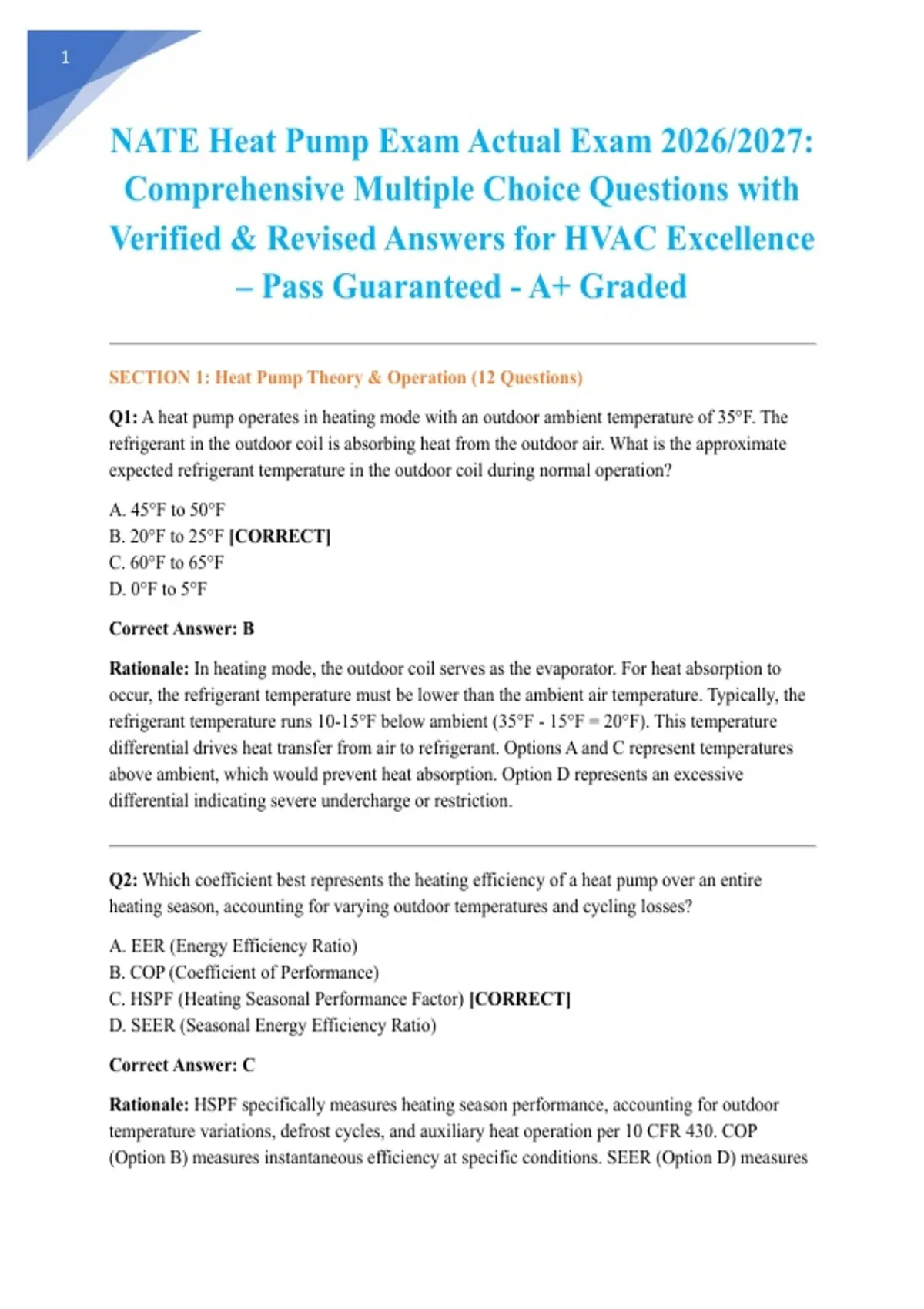

NATE Heat Pump Exam Actual Exam 2026/2027:
Comprehensive Multiple Choice Questions with
Verified & Revised Answers for HVAC Excellence
– Pass Guaranteed - A+ Graded
SECTION 1: Heat Pump Theory & Operation (12 Questions)
Q1: A heat pump operates in heating mode with an outdoor ambient temperature of 35°F. The
refrigerant in the outdoor coil is absorbing heat from the outdoor air. What is the approximate
expected refrigerant temperature in the outdoor coil during normal operation?
A. 45°F to 50°F
B. 20°F to 25°F [CORRECT]
C. 60°F to 65°F
D. 0°F to 5°F
Correct Answer: B
Rationale: In heating mode, the outdoor coil serves as the evaporator. For heat absorption to
occur, the refrigerant temperature must be lower than the ambient air temperature. Typically, the
refrigerant temperature runs 10-15°F below ambient (35°F - 15°F = 20°F). This temperature
differential drives heat transfer from air to refrigerant. Options A and C represent temperatures
above ambient, which would prevent heat absorption. Option D represents an excessive
differential indicating severe undercharge or restriction.
Q2: Which coefficient best represents the heating efficiency of a heat pump over an entire
heating season, accounting for varying outdoor temperatures and cycling losses?
A. EER (Energy Efficiency Ratio)
B. COP (Coefficient of Performance)
C. HSPF (Heating Seasonal Performance Factor) [CORRECT]
D. SEER (Seasonal Energy Efficiency Ratio)
Correct Answer: C
Rationale: HSPF specifically measures heating season performance, accounting for outdoor
temperature variations, defrost cycles, and auxiliary heat operation per 10 CFR 430. COP
(Option B) measures instantaneous efficiency at specific conditions. SEER (Option D) measures
,2
cooling season performance. EER (Option A) measures efficiency at single rating conditions
(95°F outdoor). The 2026 DOE standards require minimum HSPF of 8.8 for split system heat
pumps in northern climates.
Q3: Technician A says that a heat pump transfers heat from a lower temperature source to a
higher temperature sink. Technician B says that this heat transfer violates the Second Law of
Thermodynamics without external work input. Who is correct?
A. Technician A only
B. Technician B only
C. Both Technician A and Technician B [CORRECT]
D. Neither technician
Correct Answer: C
Rationale: Both statements are correct and complementary. Heat pumps do transfer heat "uphill"
from cold outdoor air to warm indoor air (Technician A). This does not violate thermodynamics
because external work (compressor energy input) drives the transfer (Technician B). The Second
Law states heat cannot spontaneously flow from cold to hot; work input makes the process
possible. The coefficient of performance (COP) represents the ratio of heat moved to work input,
always greater than 1 for heat pumps.
Q4: At what outdoor temperature does a typical air-source heat pump reach its "balance point"
where heating capacity equals the building's heat loss?
A. 0°F
B. 25°F to 35°F [CORRECT]
C. 65°F
D. 95°F
Correct Answer: B
Rationale: The thermal balance point typically occurs between 25-35°F for standard residential
heat pumps, depending on equipment size, building load, and climate. Below this temperature,
heat pump capacity is insufficient and auxiliary heat is required. Above this temperature, the heat
pump has excess capacity and cycles. Modern cold-climate heat pumps achieve balance points
below 0°F through enhanced vapor injection and variable capacity. The economic balance point
(where heat pump operating cost equals auxiliary heat cost) is typically 10-15°F lower than
thermal balance point.
, 3
Q5: A heat pump has a COP of 3.5 in heating mode. What is the approximate equivalent
efficiency if compared to electric resistance heating?
A. 100% efficient
B. 250% efficient
C. 350% efficient [CORRECT]
D. 500% efficient
Correct Answer: C
Rationale: COP of 3.5 means 3.5 units of heat energy are delivered for every 1 unit of electrical
energy consumed. Electric resistance heat has COP of 1.0 (100% conversion). Therefore, the heat
pump is 350% as efficient as resistance heat, or provides 3.5 times more heat per kWh. This is
why heat pumps are considered renewable energy technology—they move existing heat rather
than generating it through combustion or resistance.
Q6: During heating mode operation, where does the refrigerant state change from low-pressure
liquid to low-pressure vapor?
A. Indoor coil (condenser)
B. Outdoor coil (evaporator) [CORRECT]
C. Compressor discharge
D. Reversing valve
Correct Answer: B
Rationale: In heating mode, the outdoor coil functions as the evaporator. Liquid refrigerant from
the metering device enters the outdoor coil at low pressure, absorbs heat from outdoor air, and
boils (changes state) to low-pressure vapor. This vapor then travels to the compressor. The indoor
coil (Option A) serves as the condenser where high-pressure vapor condenses to liquid. The
compressor (Option C) raises pressure and temperature. The reversing valve (Option D) redirects
flow but doesn't facilitate the phase change.
Q7: Which 2026/2027 refrigerant transition update affects new heat pump installations in
residential applications?
A. R-410A remains the only approved refrigerant through 2030
B. R-454B and R-32 are being adopted as lower GWP alternatives to R-410A [CORRECT]
C. R-22 is returning for new heat pump manufacturing
D. Ammonia is approved for residential split systems
Correct Answer: B
