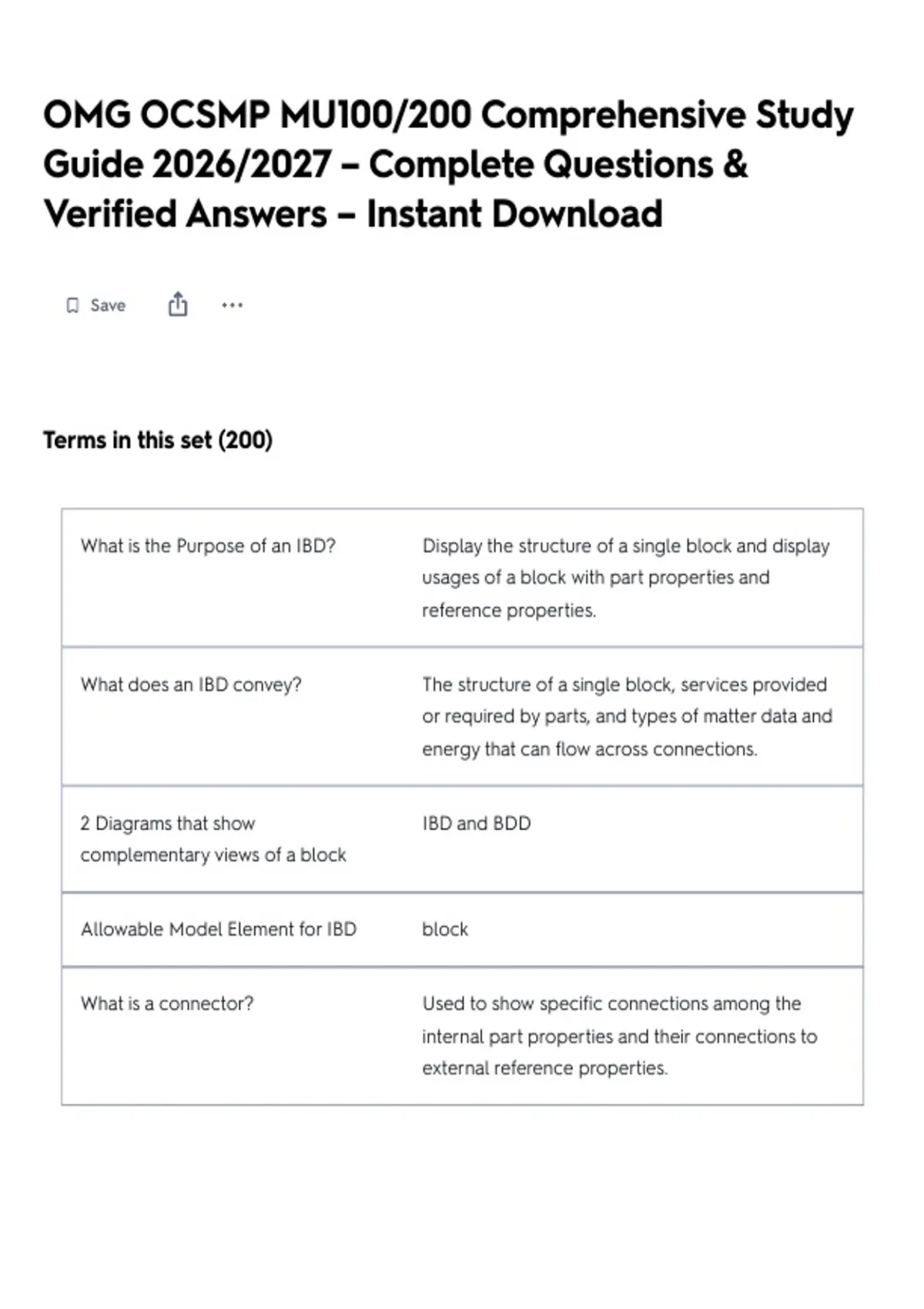

OMG OCSMP MU100/200 Comprehensive Study
Guide 2026/2027 – Complete Questions &
Verified Answers – Instant Download
Save
Terms in this set (200)
What is the Purpose of an IBD? Display the structure of a single block and display
usages of a block with part properties and
reference properties.
What does an IBD convey? The structure of a single block, services provided
or required by parts, and types of matter data and
energy that can flow across connections.
2 Diagrams that show IBD and BDD
complementary views of a block
Allowable Model Element for IBD block
What is a connector? Used to show specific connections among the
internal part properties and their connections to
external reference properties.
,What is a part property? It is an internal structural element of a block.
It is seen as a solid boundary rectangle with name :
type [ ].
Multiplicity can either be in brackets or in the top
right of the rectangle.
What is a reference property? It is a structure that is external to a block.
It is needed by the block to invoke a behavior or
service.
It is represented by a dashed boundary rectangle
with name : type [multiplicity].
Multiplicity can be shown in brackets or the UR
corner of rectangle.
What is an Item Flow? It is used to display matter, data, or energy flowing
between 2 connected flow ports.
It is represented by a filled in arrowhead that is
placed directly onto a connector.
The type of the item flow is named in a label that
floats near the arrowhead.
What is Dot Notation? It is a way to create nesting of a relationship.
The block that types the property is NOT listed or
the multiplicity.
It conveys a structural hierarchy ownership of a
property.
What is the Purpose of a Use Case It is a black-box view of the system.
Diagram? It conveys the visible external structures that a
system performs.
It displays the actors that participate and invoke the
use cases in the diagram during execution.
, What is a system boundary? A system boundary is the subject of the diagram
and NOT the namespace.
It encapsulates use cases and actors in the
diagram.
It is represented as a large rectangle within the
diagram frame.
What is a Base Use Case? A base use case is directly invoked by an actor.
It is the primary goal of the actor.
When invoked it will invoke a use case with the
include relationship.
It has an association relationship.
What is the <<include>> relationship? It is a UC relationship where the included use case
behavior is required.
Source = tail end
Target = arrowhead end
The use case at the source end is the base use
case and the arrowhead end is the target included
use case.
What is the <<extend>> relationship? It is a UC relationship where the extended use case
is an OPTIONAL behavior that can be performed
by the base use case.
The source is the tail end
Target is the arrowhead end
The use case at the source end is the extended use
case and the use case at the target arrowhead end
is the base use case.
3 Types of Behaviors and the Activity = Activity Diagram
Diagrams that represent them: Interaction = Sequence Diagram
State Machine = State Machine Diagram
