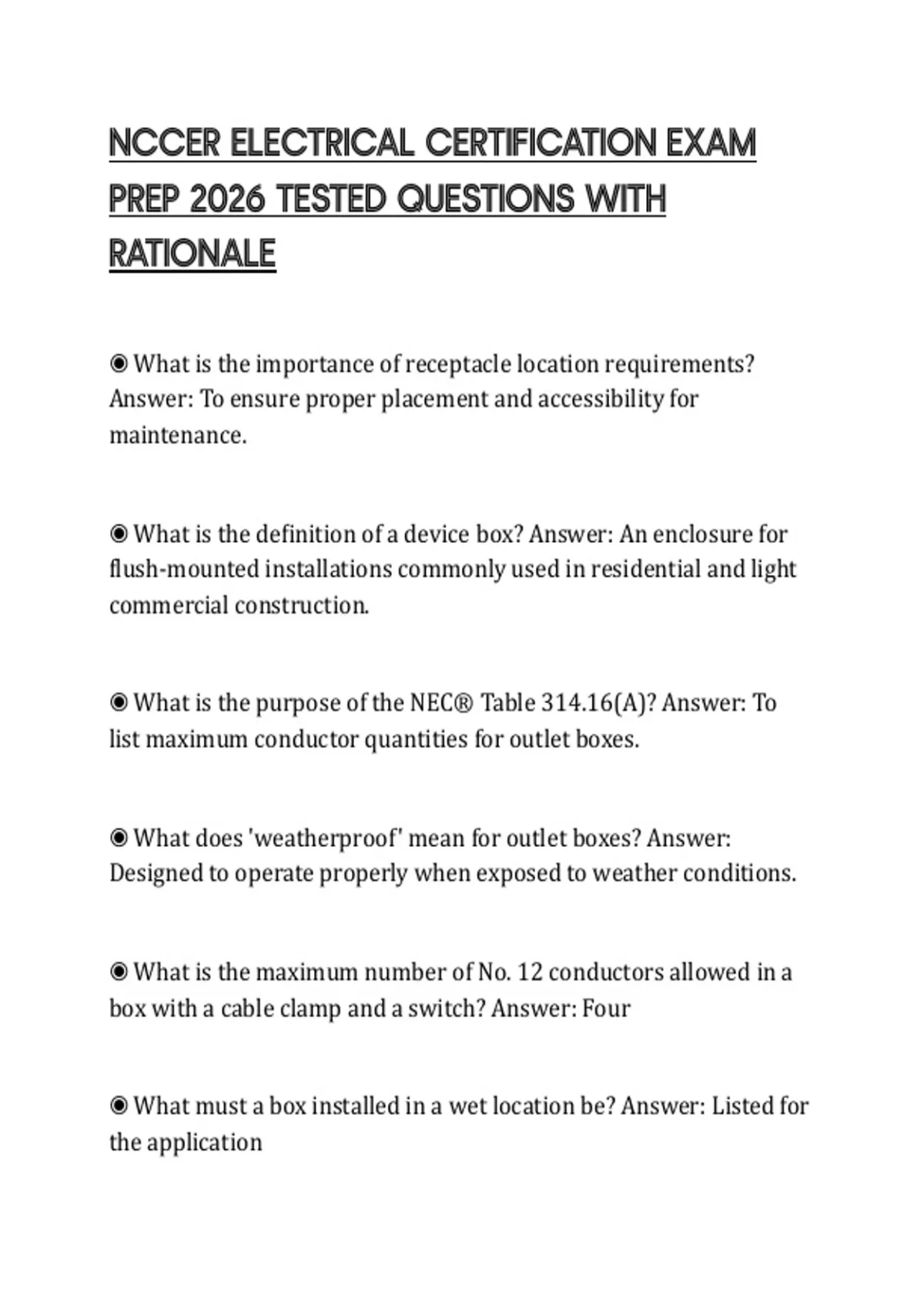

NCCER ELECTRICAL CERTIFICATION EXAM
PREP 2026 TESTED QUESTIONS WITH
RATIONALE
◉ What is the importance of receptacle location requirements?
Answer: To ensure proper placement and accessibility for
maintenance.
◉ What is the definition of a device box? Answer: An enclosure for
flush-mounted installations commonly used in residential and light
commercial construction.
◉ What is the purpose of the NEC® Table 314.16(A)? Answer: To
list maximum conductor quantities for outlet boxes.
◉ What does 'weatherproof' mean for outlet boxes? Answer:
Designed to operate properly when exposed to weather conditions.
◉ What is the maximum number of No. 12 conductors allowed in a
box with a cable clamp and a switch? Answer: Four
◉ What must a box installed in a wet location be? Answer: Listed for
the application
,◉ What is the learning objective for sizing and installing pull and
junction boxes? Answer: Learners should be able to properly size
and correctly install pull and junction boxes.
◉ What is the purpose of pull and junction boxes? Answer: To install
conductors safely, prevent damage during pulling, and allow easier
installation and maintenance.
◉ What is the minimum box length for a straight pull with
conductors No. 4 AWG or larger? Answer: At least eight times the
trade diameter of the largest raceway entering the box.
◉ What is the formula for calculating the minimum box length for a
straight pull? Answer: Minimum Box Length = 8 × Largest Raceway
Diameter
◉ What is the minimum box length for angle pulls with conductors
No. 4 AWG or larger? Answer: At least six times the trade diameter
of the largest raceway.
◉ What is the formula for calculating the minimum box length for
angle pulls? Answer: Minimum Box Length = 6 × Largest Raceway
Diameter
, ◉ What are the functions of pull boxes? Answer: Reduce pulling
tension on conductors, provide access points in long conduit runs,
minimize excessive conduit bends, and support long vertical
conductor runs.
◉ What is a junction box? Answer: An enclosure where one or more
raceways or cables enter and where conductors may be spliced or
connected.
◉ What is a pull box? Answer: A sheet-metal enclosure installed
within conduit runs to facilitate pulling conductors, support long
cable runs, and allow direction changes in conduit systems.
◉ What is the key measurement for making a 90° bend? Answer:
Stub-up length and bender take-up distance.
◉ How do you determine the stub-up height for a 90° bend? Answer:
Subtract the bender take-up from the desired stub-up height.
◉ What is gain in the context of conduit bending? Answer: The
distance saved by the arc of a 90° bend.
◉ What is the procedure for making back-to-back 90° bends?
Answer: Make the first bend, measure the required distance
