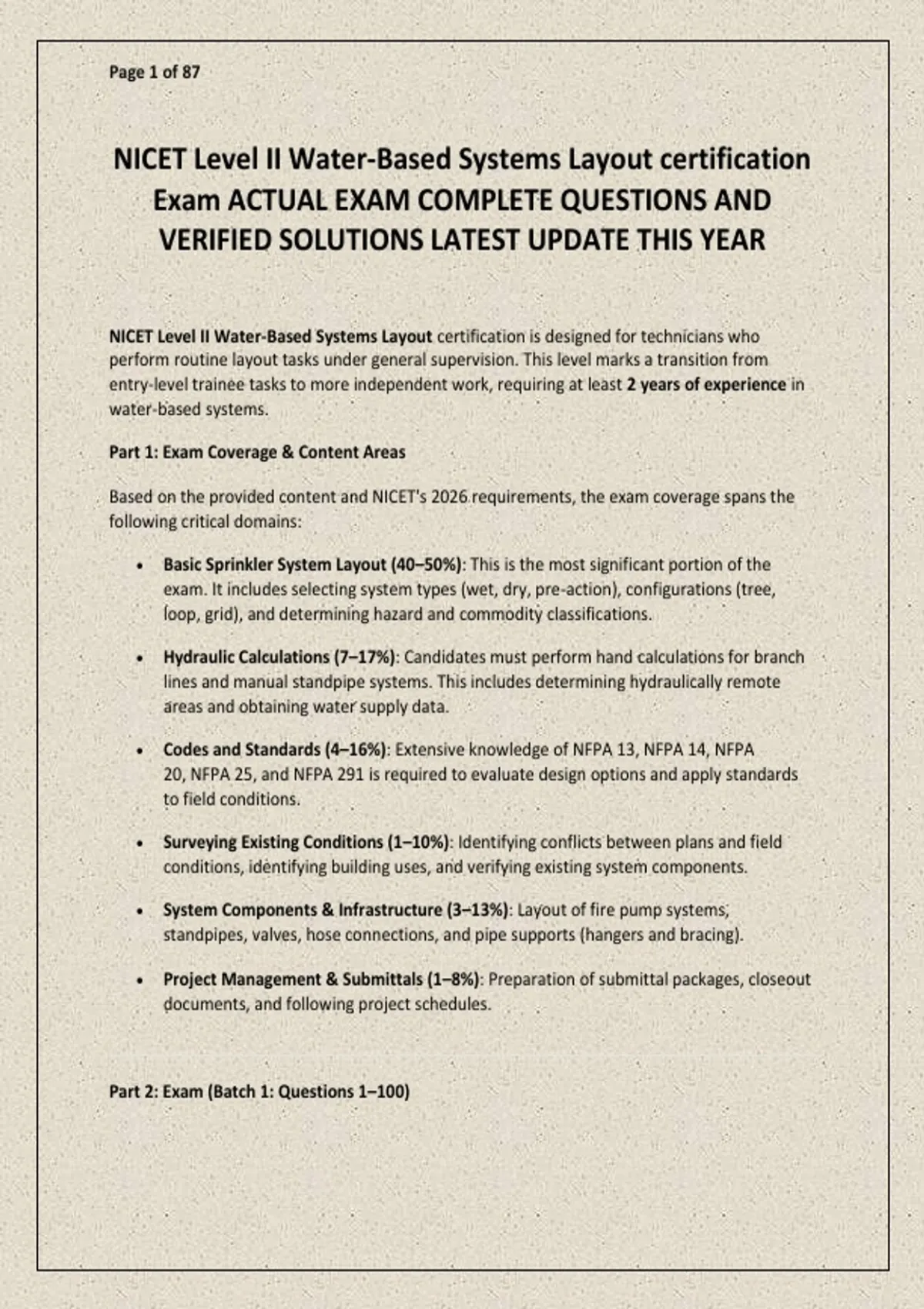

Page 1 of 87
NICET Level II Water-Based Systems Layout certification
Exam ACTUAL EXAM COMPLETE QUESTIONS AND
VERIFIED SOLUTIONS LATEST UPDATE THIS YEAR
NICET Level II Water-Based Systems Layout certification is designed for technicians who
perform routine layout tasks under general supervision. This level marks a transition from
entry-level trainee tasks to more independent work, requiring at least 2 years of experience in
water-based systems.
Part 1: Exam Coverage & Content Areas
Based on the provided content and NICET's 2026 requirements, the exam coverage spans the
following critical domains:
• Basic Sprinkler System Layout (40–50%): This is the most significant portion of the
exam. It includes selecting system types (wet, dry, pre-action), configurations (tree,
loop, grid), and determining hazard and commodity classifications.
• Hydraulic Calculations (7–17%): Candidates must perform hand calculations for branch
lines and manual standpipe systems. This includes determining hydraulically remote
areas and obtaining water supply data.
• Codes and Standards (4–16%): Extensive knowledge of NFPA 13, NFPA 14, NFPA
20, NFPA 25, and NFPA 291 is required to evaluate design options and apply standards
to field conditions.
• Surveying Existing Conditions (1–10%): Identifying conflicts between plans and field
conditions, identifying building uses, and verifying existing system components.
• System Components & Infrastructure (3–13%): Layout of fire pump systems,
standpipes, valves, hose connections, and pipe supports (hangers and bracing).
• Project Management & Submittals (1–8%): Preparation of submittal packages, closeout
documents, and following project schedules.
Part 2: Exam (Batch 1: Questions 1–100)
,Page 2 of 87
1. Which NFPA standard is primarily used by a Level II technician to determine the
required frequency and procedures for the inspection and testing of existing water-
based systems?
A. NFPA 13
B. NFPA 20
C. NFPA 25 ✅
D. NFPA 101
Rationale: NFPA 25 is the dedicated standard for the inspection, testing, and maintenance
(ITM) of water-based fire protection systems to ensure they remain operational after
installation.
2. In a dry-pipe sprinkler system, what is the primary reason for using compressed air or
nitrogen rather than water to fill the piping network?
0. A. To increase the speed of water delivery during a fire event.
1. B. To prevent the water from freezing in unheated areas of a building. ✅
2. C. To reduce the overall weight of the piping on the structural hangers.
3. D. To prevent internal corrosion caused by stagnant water.
,Page 3 of 87
4. Rationale: Dry-pipe systems are specifically designed for areas where
temperatures may drop below freezing; the air pressure holds back the water
until a sprinkler activates.
3. When performing a field survey for a new system layout, what is the most critical
factor a technician must identify regarding the building's storage?
0. A. The color of the items being stored.
1. B. The commodity classification and the maximum storage height. ✅
2. C. The name of the manufacturer of the stored goods.
3. D. The total retail value of the inventory in the warehouse.
4. Rationale: Commodity classification (Class I-IV or Plastics) and storage height are
the primary drivers for determining the required sprinkler density and system
type.
4. A Level II technician is hand-calculating a branch line; what is the minimum operating
pressure required for any individual sprinkler according to NFPA 13?
0. A. 5 psi
1. B. 7 psi ✅
2. C. 10 psi
, Page 4 of 87
3. D. 15 psi
4. Rationale: Per NFPA 13 requirements, the minimum operating pressure for any
sprinkler is 7 psi to ensure an effective discharge pattern.
5. Which type of sprinkler head is characterized by a faster response time due to having
a smaller thermal element compared to standard versions?
0. A. Extended Coverage
1. B. Quick Response ✅
2. C. Early Suppression Fast Response (ESFR)
3. D. Control Mode Specific Application (CMSA)
4. Rationale: Quick Response (QR) sprinklers are designed with a more sensitive
thermal element to activate earlier in the development of a fire.
6. When configuring a standpipe system, a Class I system is primarily intended for use by
which of the following groups?
0. A. Building occupants with no formal fire training.
1. B. Trained fire brigade members and fire departments. ✅
2. C. Janitorial staff for cleaning purposes.
3. D. Local insurance inspectors during annual reviews.
