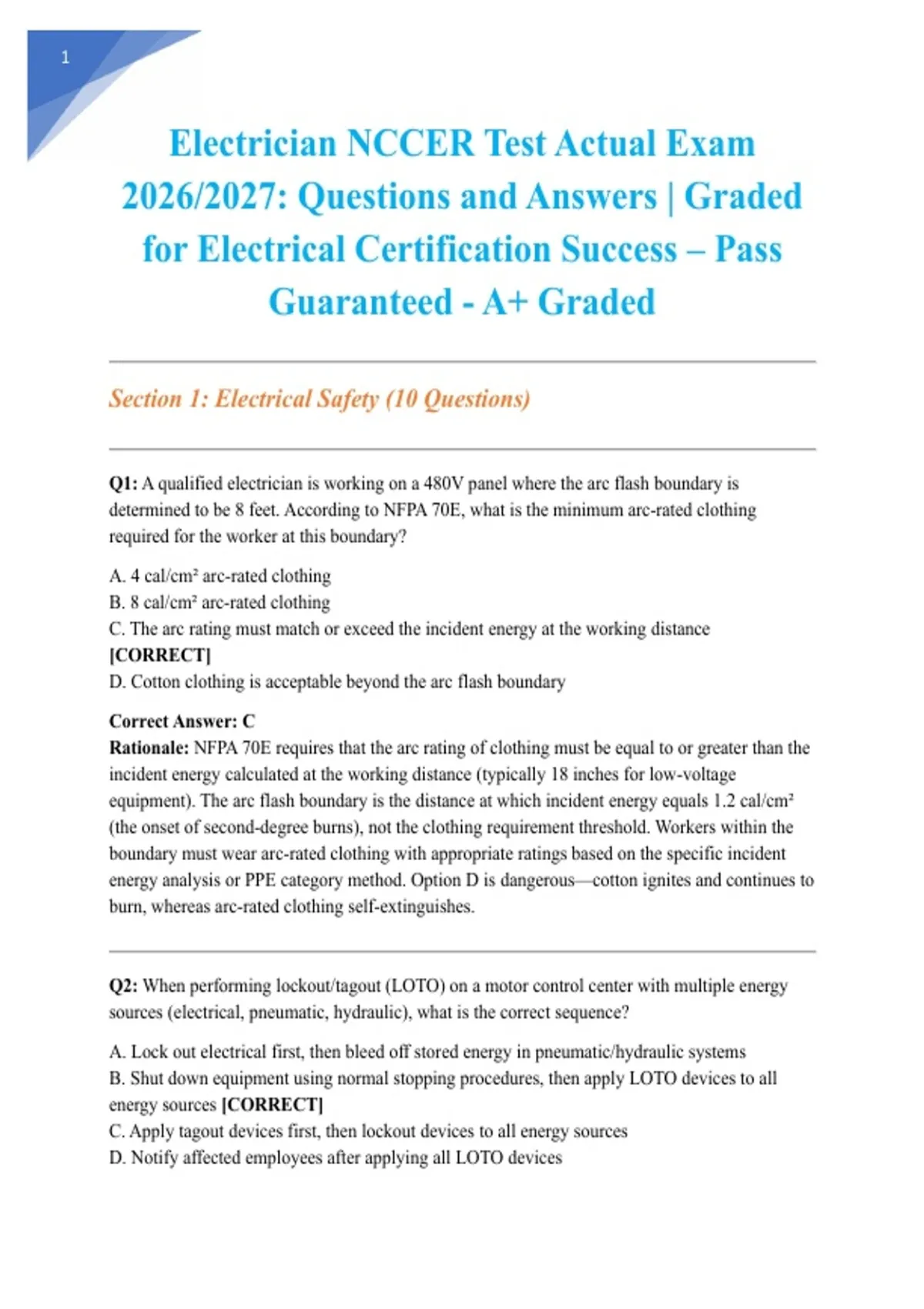

Electrician NCCER Test Actual Exam
2026/2027: Questions and Answers | Graded
for Electrical Certification Success – Pass
Guaranteed - A+ Graded
Section 1: Electrical Safety (10 Questions)
Q1: A qualified electrician is working on a 480V panel where the arc flash boundary is
determined to be 8 feet. According to NFPA 70E, what is the minimum arc-rated clothing
required for the worker at this boundary?
A. 4 cal/cm² arc-rated clothing
B. 8 cal/cm² arc-rated clothing
C. The arc rating must match or exceed the incident energy at the working distance
[CORRECT]
D. Cotton clothing is acceptable beyond the arc flash boundary
Correct Answer: C
Rationale: NFPA 70E requires that the arc rating of clothing must be equal to or greater than the
incident energy calculated at the working distance (typically 18 inches for low-voltage
equipment). The arc flash boundary is the distance at which incident energy equals 1.2 cal/cm²
(the onset of second-degree burns), not the clothing requirement threshold. Workers within the
boundary must wear arc-rated clothing with appropriate ratings based on the specific incident
energy analysis or PPE category method. Option D is dangerous—cotton ignites and continues to
burn, whereas arc-rated clothing self-extinguishes.
Q2: When performing lockout/tagout (LOTO) on a motor control center with multiple energy
sources (electrical, pneumatic, hydraulic), what is the correct sequence?
A. Lock out electrical first, then bleed off stored energy in pneumatic/hydraulic systems
B. Shut down equipment using normal stopping procedures, then apply LOTO devices to all
energy sources [CORRECT]
C. Apply tagout devices first, then lockout devices to all energy sources
D. Notify affected employees after applying all LOTO devices
,2
Correct Answer: B
Rationale: OSHA 1910.147 and NFPA 70E require a specific sequence: (1) notify affected
employees, (2) shut down using normal procedures, (3) isolate all energy sources (electrical,
mechanical, hydraulic, pneumatic, chemical, thermal), (4) apply LOTO devices, (5) dissipate or
restrain stored energy (bleed pneumatic lines, discharge capacitors), and (6) verify isolation by
attempting to start. Option A is incomplete—it doesn't mention notification or verification.
Option C reverses the requirement (locks before tags). Option D has notification occurring too
late in the process.
Q3: A worker needs to verify absence of voltage in a 277V lighting panel before beginning work.
What is the proper procedure per NFPA 70E?
A. Use a non-contact voltage tester for initial verification, then proceed with work
B. Test on a known voltage source, test the de-energized conductors, then retest on the known
source [CORRECT]
C. Visually confirm the breaker is off and begin work immediately
D. Test phase-to-neutral only; testing phase-to-phase is unnecessary
Correct Answer: B
Rationale: The "test before touch" procedure requires a three-step verification: (1) test the
voltage tester on a known live source to confirm it's working, (2) test all conductors (phase-to-
phase and phase-to-ground) in the equipment to verify absence of voltage, and (3) retest on the
known source to confirm the tester didn't fail during testing. This prevents reliance on a faulty
tester. Option A is insufficient—non-contact testers can give false negatives. Option C ignores
the requirement for actual voltage testing. Option D is incomplete—all possible voltage sources
must be tested.
Q4: What is the minimum approach distance for a qualified person working on exposed
energized 480V AC conductors without wearing appropriate insulated gloves?
A. 1 foot
B. 3 feet 6 inches (1.06m) for limited approach boundary [CORRECT]
C. 6 feet
D. Contact is permitted for qualified persons
Correct Answer: B
Rationale: NFPA 70E Table 130.4(E)(a) specifies approach boundaries for shock protection. For
480V (300V-750V range), the limited approach boundary is 3 feet 6 inches (1.06m) for qualified
persons. Crossing this boundary requires appropriate shock protection (insulated gloves, tools, or
other barriers). The restricted approach boundary (where increased risk of shock exists) is closer
, 3
at 12 inches for this voltage. Option D is deadly—qualified status doesn't provide immunity from
electric shock.
Q5: An electrician experiences an arc flash incident. The victim is conscious but has burns on
their hands and face. What is the FIRST priority?
A. Cool the burns with ice water immediately
B. Ensure the scene is safe and call for emergency medical services [CORRECT]
C. Apply ointment to the burns and cover with sterile dressings
D. Transport the victim to the hospital in a personal vehicle
Correct Answer: B
Rationale: Scene safety is always the first priority—ensure the electrical source is secured and
no secondary hazards exist. Arc flash victims may have internal injuries, airway damage from
inhaling hot gases, or traumatic injuries from being thrown. Emergency medical services (EMS)
must be activated immediately for professional assessment and transport. Option A is incorrect—
ice can cause further tissue damage; cool water is appropriate but secondary to EMS activation.
Option C is inappropriate for electrical burns (chemical ointments may react with damaged
tissue). Option D delays professional care and risks worsening injuries during transport.
Q6: According to OSHA and NFPA 70E, what class of hard hat is required when working on
electrical systems with potential exposure to high-voltage electrical conductors?
A. Class C (Conductive)
B. Class E (Electrical) rated to 20,000 volts [CORRECT]
C. Class G (General) rated to 2,200 volts
D. Class A (Administrative) rated to 10,000 volts
Correct Answer: B
Rationale: Class E (Electrical) hard hats are tested to withstand 20,000 volts phase to ground
and are required for electrical work where high-voltage exposure is possible. Class G (General)
provides only 2,200-volt protection and is insufficient for high-voltage work. Class C provides
no electrical protection (it's conductive). Class A is an obsolete designation replaced by Class G
and Class E in current ANSI/ISEA Z89.1 standards.
Q7: A worker is using a fiberglass ladder to work near overhead power lines. What is the
minimum safe approach distance to uninsulated energized lines rated 50kV?
A. 6 feet
B. 10 feet [CORRECT]
