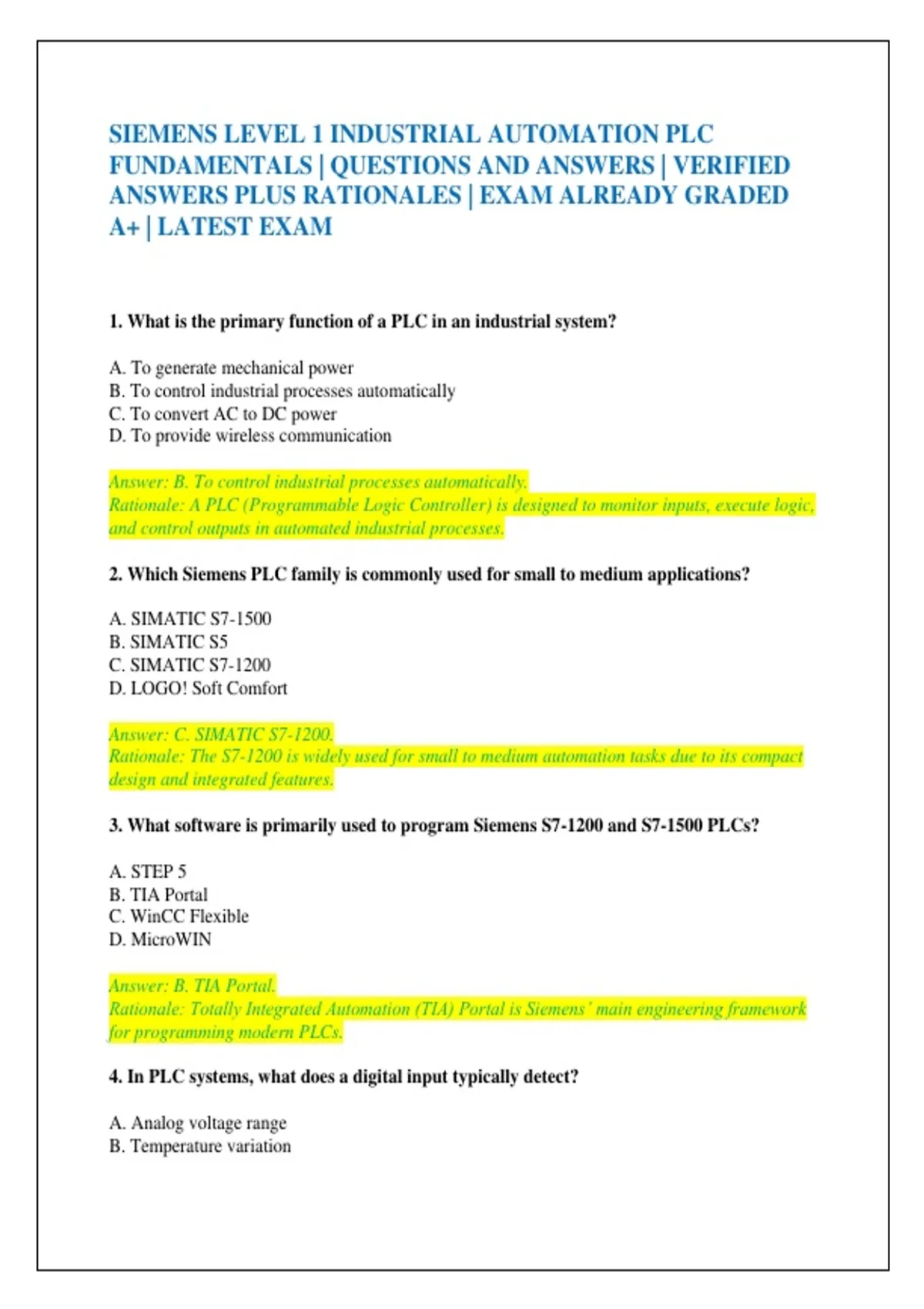

SIEMENS LEVEL 1 INDUSTRIAL AUTOMATION PLC
FUNDAMENTALS | QUESTIONS AND ANSWERS | VERIFIED
ANSWERS PLUS RATIONALES | EXAM ALREADY GRADED
A+ | LATEST EXAM
1. What is the primary function of a PLC in an industrial system?
A. To generate mechanical power
B. To control industrial processes automatically
C. To convert AC to DC power
D. To provide wireless communication
Answer: B. To control industrial processes automatically.
Rationale: A PLC (Programmable Logic Controller) is designed to monitor inputs, execute logic,
and control outputs in automated industrial processes.
2. Which Siemens PLC family is commonly used for small to medium applications?
A. SIMATIC S7-1500
B. SIMATIC S5
C. SIMATIC S7-1200
D. LOGO! Soft Comfort
Answer: C. SIMATIC S7-1200.
Rationale: The S7-1200 is widely used for small to medium automation tasks due to its compact
design and integrated features.
3. What software is primarily used to program Siemens S7-1200 and S7-1500 PLCs?
A. STEP 5
B. TIA Portal
C. WinCC Flexible
D. MicroWIN
Answer: B. TIA Portal.
Rationale: Totally Integrated Automation (TIA) Portal is Siemens’ main engineering framework
for programming modern PLCs.
4. In PLC systems, what does a digital input typically detect?
A. Analog voltage range
B. Temperature variation
,C. Motor speed
D. ON/OFF status
Answer: D. ON/OFF status.
Rationale: Digital inputs detect binary states such as open/closed or high/low signals.
5. Which programming language is graphical and resembles electrical relay logic?
A. Structured Text (ST)
B. Function Block Diagram (FBD)
C. Ladder Logic (LAD)
D. Instruction List (IL)
Answer: C. Ladder Logic (LAD).
Rationale: Ladder Logic visually represents control logic similar to traditional relay wiring
diagrams.
6. What is the function of an output module in a PLC?
A. To receive sensor signals
B. To process logic
C. To store program data
D. To control actuators
Answer: D. To control actuators.
Rationale: Output modules send signals to devices such as motors, solenoids, and relays.
7. Which memory type retains data even after power loss?
A. RAM
B. Volatile memory
C. Cache
D. Flash memory
Answer: D. Flash memory.
Rationale: Flash memory is non-volatile and retains stored data without power.
8. What does HMI stand for?
A. Human Machine Interface
B. High Motor Input
C. Hybrid Module Interface
D. Hardware Maintenance Indicator
Answer: A. Human Machine Interface.
Rationale: An HMI allows operators to interact with machines and monitor processes.
,9. What is the main purpose of a power supply module in a PLC system?
A. To increase signal speed
B. To convert and supply required voltage
C. To store data
D. To program the PLC
Answer: B. To convert and supply required voltage.
Rationale: The power supply module converts input voltage into levels suitable for PLC
components.
10. Which protocol is commonly used for Siemens industrial communication?
A. Bluetooth
B. PROFIBUS
C. HDMI
D. SATA
Answer: B. PROFIBUS.
Rationale: PROFIBUS is a widely used Siemens industrial communication protocol.
11. What is the purpose of a timer in PLC programming?
A. To measure pressure
B. To delay or control timing events
C. To convert signals
D. To increase voltage
Answer: B. To delay or control timing events.
Rationale: Timers introduce delays or time-based control in automation logic.
12. A normally open (NO) contact in Ladder Logic allows current flow when:
A. The input is OFF
B. The PLC is stopped
C. The input is ON
D. Power fails
Answer: C. The input is ON.
Rationale: A normally open contact closes and allows current flow when energized.
13. Which device converts electrical energy into mechanical motion?
A. Sensor
B. Relay
, C. Motor
D. Transducer
Answer: C. Motor.
Rationale: Motors convert electrical energy into mechanical movement.
14. What is the purpose of a circuit breaker in industrial systems?
A. To amplify signals
B. To protect against overcurrent
C. To measure voltage
D. To cool equipment
Answer: B. To protect against overcurrent.
Rationale: Circuit breakers disconnect power during overloads or short circuits.
15. Which Siemens device is commonly used for basic logic control in very small
applications?
A. S7-1500
B. LOGO!
C. S7-400
D. SINAMICS
Answer: B. LOGO!.
Rationale: LOGO! is Siemens’ compact logic module for small-scale automation tasks.
16. What is the scan cycle of a PLC?
A. Physical inspection process
B. Power conversion cycle
C. Repeated sequence of reading inputs, executing logic, updating outputs
D. Communication test
Answer: C. Repeated sequence of reading inputs, executing logic, updating outputs.
Rationale: PLCs continuously operate in a scan cycle to maintain automation control.
17. Which device is used to detect physical changes such as proximity or temperature?
A. Actuator
B. Transformer
C. Sensor
D. Capacitor
Answer: C. Sensor.
Rationale: Sensors detect physical conditions and convert them into electrical signals.
