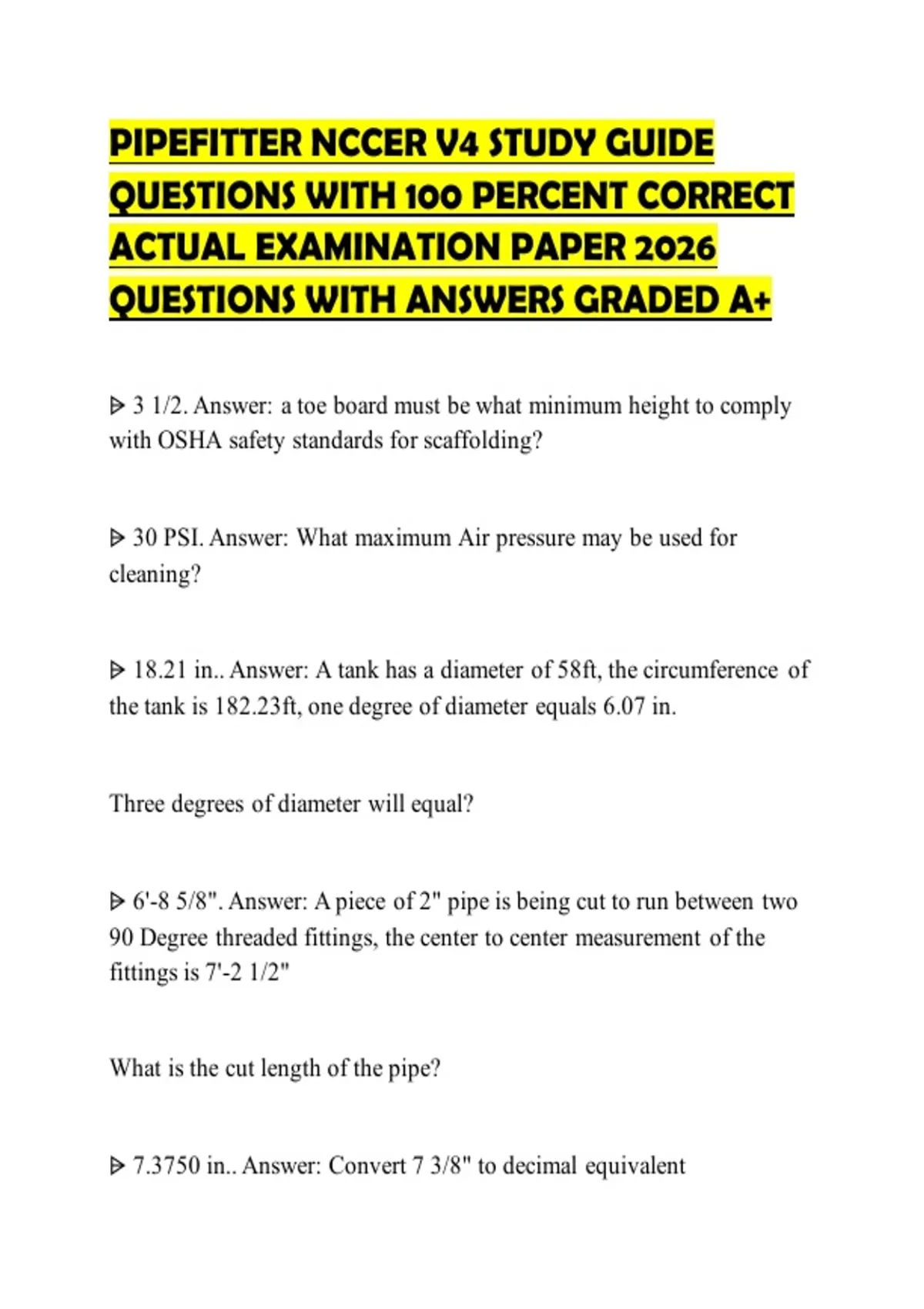

PIPEFITTER NCCER V4 STUDY GUIDE
QUESTIONS WITH 100 PERCENT CORRECT
ACTUAL EXAMINATION PAPER 2026
QUESTIONS WITH ANSWERS GRADED A+
⩥ 3 1/2. Answer: a toe board must be what minimum height to comply
with OSHA safety standards for scaffolding?
⩥ 30 PSI. Answer: What maximum Air pressure may be used for
cleaning?
⩥ 18.21 in.. Answer: A tank has a diameter of 58ft, the circumference of
the tank is 182.23ft, one degree of diameter equals 6.07 in.
Three degrees of diameter will equal?
⩥ 6'-8 5/8". Answer: A piece of 2" pipe is being cut to run between two
90 Degree threaded fittings, the center to center measurement of the
fittings is 7'-2 1/2"
What is the cut length of the pipe?
⩥ 7.3750 in.. Answer: Convert 7 3/8" to decimal equivalent
, ⩥ 255 Sq.Ft. Answer: what is the area of a rectangle that is 25'-6" long
and 10'-0" wide? ( A= W x L )
⩥ 40 Sq.FT. Answer: what is the sq. footage of the surface area of a steel
plate measuring 120 in. long by 48 in. wide?
⩥ 119'-3 1/2". Answer: A 14" SCH carbon steel pipe is being installed in
a pipe rack. The center line elevation of the pipe will be 120' -3 1/2".
what will the bottom of pipe elevation be?
⩥ 4.67 ft. Answer: The decimal of 56in. is
⩥ 401.1. Answer: A tank holding 3,000 Gal. of water contains of many
cu.ft. of water? ( one Gal. equals 0.1337 cu. ft)
⩥ .25. Answer: How much is 3" in hundredths of a foot?
⩥ Use two rigging sling that are double wrapped and chocked one
chocker is placed about 5ft from each end of the bundle. Answer: which
of the following methods could be used to rig a 20 foot long bundle of
six rebar rods that will be pick up by a small crane?
