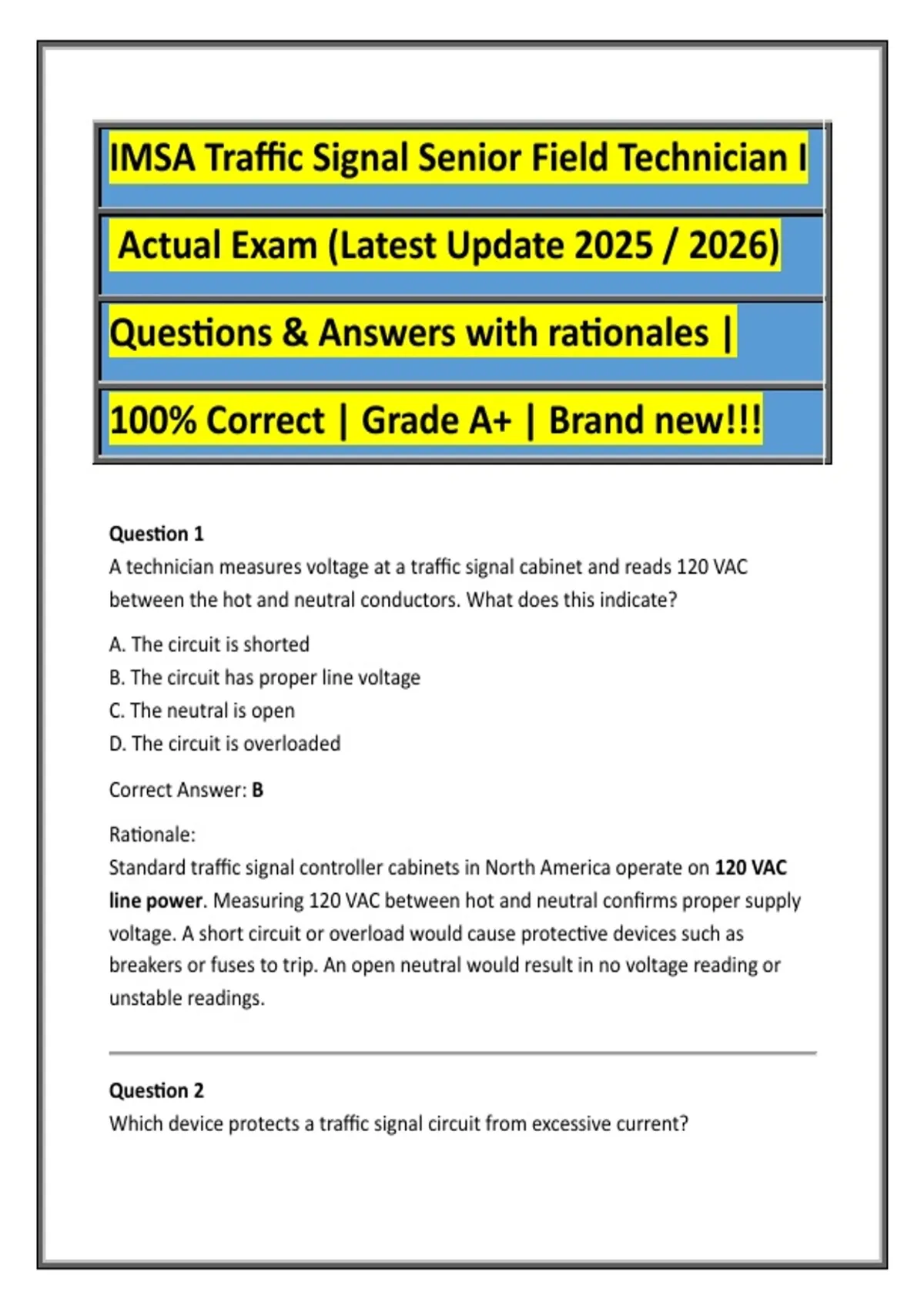

IMSA Traffic Signal Senior Field Technician I
Actual Exam (Latest Update )
Questions & Answers with rationales |
100% Correct | Grade A+ | Brand new!!!
Question 1
A technician measures voltage at a traffic signal cabinet and reads 120 VAC
between the hot and neutral conductors. What does this indicate?
A. The circuit is shorted
B. The circuit has proper line voltage
C. The neutral is open
D. The circuit is overloaded
Correct Answer: B
Rationale:
Standard traffic signal controller cabinets in North America operate on 120 VAC
line power. Measuring 120 VAC between hot and neutral confirms proper supply
voltage. A short circuit or overload would cause protective devices such as
breakers or fuses to trip. An open neutral would result in no voltage reading or
unstable readings.
Question 2
Which device protects a traffic signal circuit from excessive current?
,A. Load switch
B. Flasher unit
C. Circuit breaker
D. Conflict monitor
Correct Answer: C
Rationale:
Circuit breakers protect electrical circuits by interrupting current when it exceeds
a safe level. In traffic signal cabinets, they protect wiring and equipment from
overheating and fire hazards.
Question 3
The primary function of a traffic signal controller is to:
A. Supply power to signal heads
B. Control the sequence and timing of signal indications
C. Detect vehicle speed
D. Provide surge protection
Correct Answer: B
Rationale:
The traffic signal controller is the “brain” of the intersection. It manages signal
phases, timing intervals, coordination, and communication with detectors and
other equipment.
Question 4
A conflict monitor in a traffic signal cabinet is designed to:
A. Control signal timing
B. Detect conflicting signal indications
C. Increase voltage
D. Provide battery backup
,Correct Answer: B
Rationale:
A conflict monitor (malfunction management unit) ensures that incompatible
signals such as green indications in conflicting directions do not occur
simultaneously. If detected, it places the intersection into flash mode for safety.
Question 5
What is the standard color code for the protective grounding conductor?
A. Black
B. White
C. Green
D. Red
Correct Answer: C
Rationale:
Green or green/yellow conductors are used for grounding. Grounding protects
personnel and equipment by providing a safe path for fault current.
Question 6
Vehicle detection using wire loops embedded in pavement operates using which
principle?
A. Magnetic induction
B. Optical reflection
C. Ultrasonic waves
D. Infrared radiation
Correct Answer: A
Rationale:
Inductive loop detectors detect vehicles through changes in inductance when a
metal vehicle passes over the loop, altering the electromagnetic field.
, Question 7
Which component switches power to signal lamps according to controller
commands?
A. Load switch
B. Conflict monitor
C. Detector card
D. Flasher
Correct Answer: A
Rationale:
Load switches receive logic signals from the controller and switch AC power to the
signal lamps.
Question 8
When a traffic signal cabinet goes into flash, which indication typically flashes for
the major street?
A. Flashing red
B. Flashing green
C. Flashing yellow
D. Steady yellow
Correct Answer: C
Rationale:
Standard flash operation uses flashing yellow for the major road and flashing red
for minor roads, warning drivers to proceed with caution.
Question 9
The purpose of a surge protector in a signal cabinet is to:
