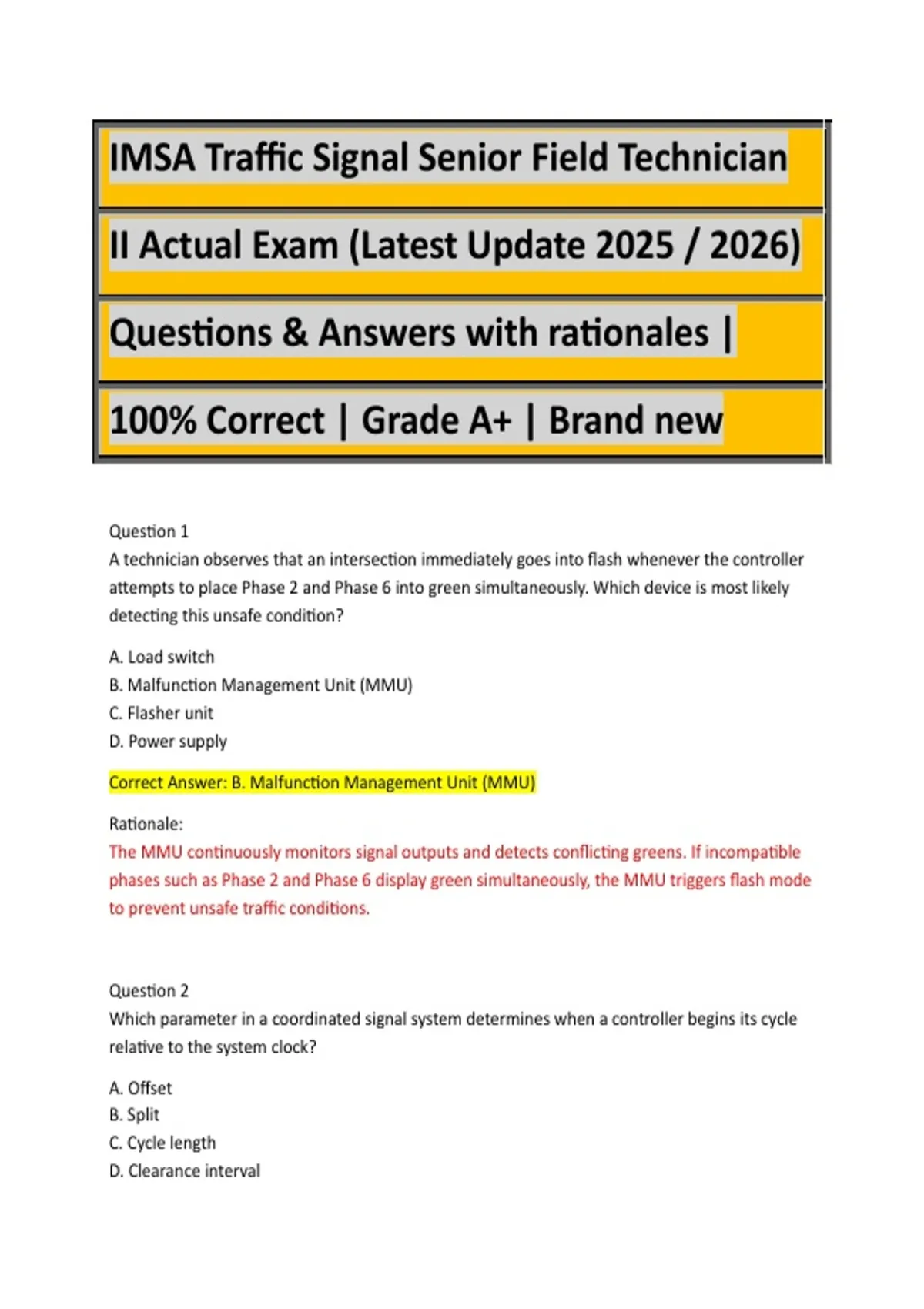

IMSA Traffic Signal Senior Field Technician
II Actual Exam (Latest Update )
Questions & Answers with rationales |
100% Correct | Grade A+ | Brand new
Question 1
A technician observes that an intersection immediately goes into flash whenever the controller
attempts to place Phase 2 and Phase 6 into green simultaneously. Which device is most likely
detecting this unsafe condition?
A. Load switch
B. Malfunction Management Unit (MMU)
C. Flasher unit
D. Power supply
Correct Answer: B. Malfunction Management Unit (MMU)
Rationale:
The MMU continuously monitors signal outputs and detects conflicting greens. If incompatible
phases such as Phase 2 and Phase 6 display green simultaneously, the MMU triggers flash mode
to prevent unsafe traffic conditions.
Question 2
Which parameter in a coordinated signal system determines when a controller begins its cycle
relative to the system clock?
A. Offset
B. Split
C. Cycle length
D. Clearance interval
,Correct Answer: A. Offset
Rationale:
Offset defines the time relationship between adjacent signals in a coordinated system. It
ensures signals turn green at appropriate times to allow platoons of vehicles to move smoothly
along a corridor.
Question 3
If a detector is stuck in constant call due to a shorted loop, what is the most likely effect on
signal operation?
A. Phase will never be served
B. Phase will gap out quickly
C. Phase will extend or remain active longer than expected
D. Controller will shut down
Correct Answer: C. Phase will extend or remain active longer than expected
Rationale:
A constant call causes the controller to believe vehicles are always present, preventing gap-out
and extending green time.
Question 4
In a NEMA controller cabinet, which rack typically contains the load switches?
A. Detector rack
B. Input file
C. Output file
D. Power distribution panel
Correct Answer: C. Output file
Rationale:
The output file houses load switches and flash transfer relays which control the signal head
outputs.
Question 5
Which interval occurs immediately after the green interval and before the red interval?
,A. Walk interval
B. Yellow change interval
C. Minimum green interval
D. Delay interval
Correct Answer: B. Yellow change interval
Rationale:
The yellow change interval warns drivers that the signal is about to change to red.
Question 6
What is the primary purpose of the red clearance interval?
A. Allow vehicles to accelerate
B. Clear vehicles from the intersection before conflicting green
C. Reduce pedestrian crossing time
D. Reset the controller
Correct Answer: B. Clear vehicles from the intersection before conflicting green
Rationale:
The red clearance interval ensures vehicles that entered during yellow have time to exit the
intersection safely.
Question 7
Which cabinet component is responsible for switching signal heads into flash during MMU
activation?
A. Flash transfer relay
B. Detector amplifier
C. Controller CPU
D. Power supply
Correct Answer: A. Flash transfer relay
Rationale:
The flash transfer relay changes signal head outputs from controller control to flasher operation
when flash mode is activated.
, Question 8
When measuring resistance of an inductive loop, a reading near zero ohms typically indicates:
A. Normal operation
B. Open circuit
C. Short circuit
D. High sensitivity
Correct Answer: C. Short circuit
Rationale:
Very low resistance indicates the loop wires are shorted together.
Question 9
Which field device is most commonly used for emergency vehicle preemption?
A. Microwave radar
B. Optical strobe detector
C. Passive infrared sensor
D. Ultrasonic detector
Correct Answer: B. Optical strobe detector
Rationale:
Emergency vehicles equipped with strobe emitters trigger optical detectors mounted at
intersections.
Question 10
What is the function of a detector amplifier?
A. Increase signal lamp brightness
B. Process signals from detection loops
C. Control load switch outputs
D. Regulate cabinet temperature
Correct Answer: B. Process signals from detection loops
Rationale:
Detector amplifiers interpret inductance changes in loop detectors and send vehicle call signals
to the controller.
