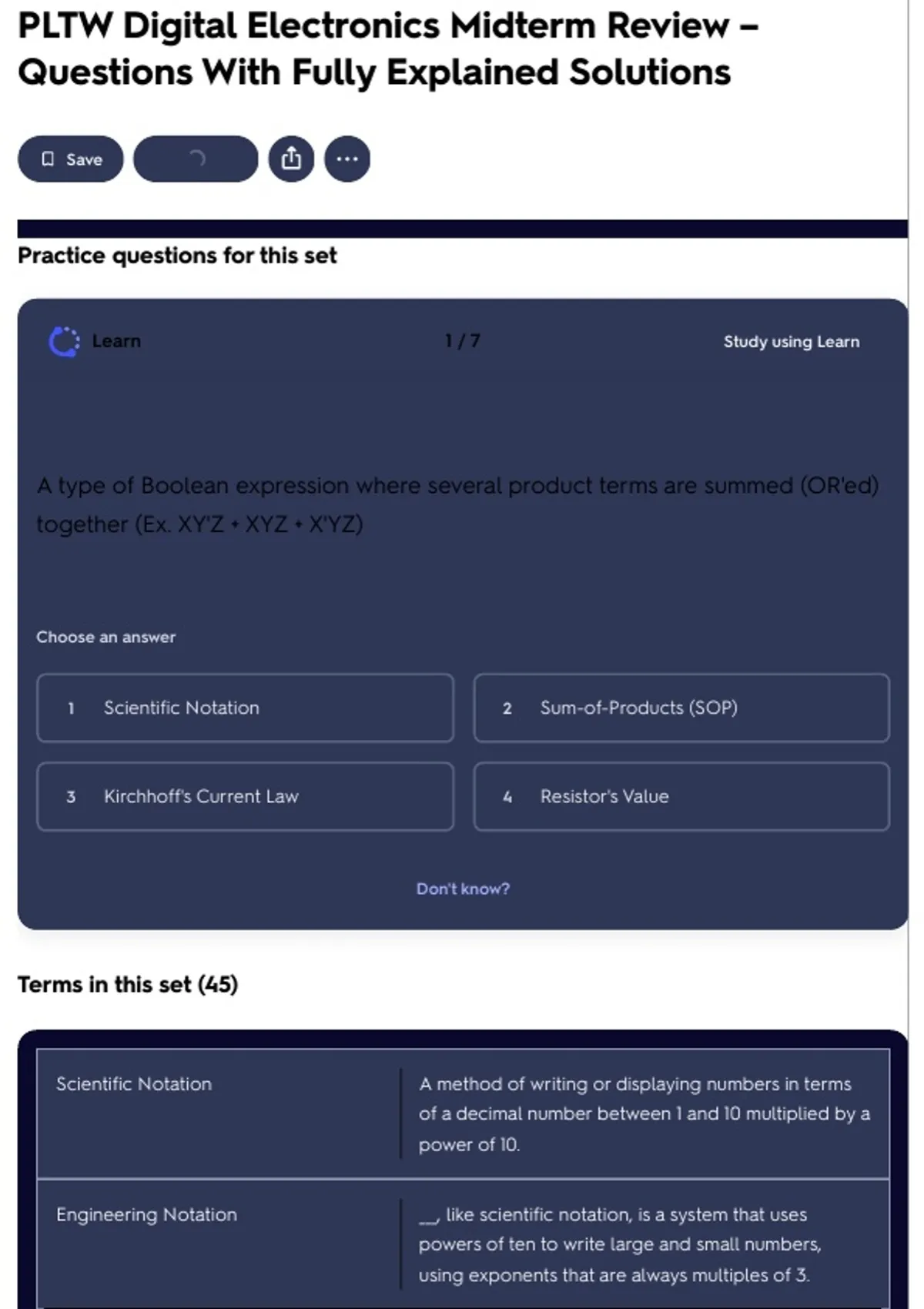

PLTW Digital Electronics Midterm Review –
Questions With Fully Explained Solutions
Save
Practice questions for this set
Learn 1 /7 Study using Learn
A type of Boolean expression where several product terms are summed (OR'ed)
together (Ex. XY'Z + XYZ + X'YZ)
Choose an answer
1 Scientific Notation 2 Sum-of-Products (SOP)
3 Kirchhoff's Current Law 4 Resistor's Value
Don't know?
Terms in this set (45)
Scientific Notation A method of writing or displaying numbers in terms
of a decimal number between 1 and 10 multiplied by a
power of 10.
Engineering Notation ___, like scientific notation, is a system that uses
powers of ten to write large and small numbers,
using exponents that are always multiples of 3.
, SI Prefixes kilo (1000), hecto- (100), deca- (10), Base unit (1),
deci(.1), centi(.01), milli (.001)
Resistor An electrical device that resists the flow of electrical
current measured in Ohms
Resistor's Value (4 Bands) 1st, 2nd, Multiplier, Tolerance
Capacitor An electrical device used to store electrical charge
measured in FARADS
Capacitor's Value 1st digit, 2nd digit, 3rd digit (# of zero's), 4th letter
(tolerance)
Current A flow of electric charge measured in AMPS
Voltage Electrical force that causes current to flow measured
in VOLTS
Resistance Measure of opposition to current flow measured in
OHMS
Ohm's Law V=IR
Kirchhoff's Voltage Law Current is equal in series circuit
Kirchhoff's Current Law Voltage is equal in parallel circuit, Resistance is 1/1/R,
and Current is adative
IC An electronic circuit having many components like
resistors, transistors, etc. in one package
Package Styles DIP, SOIC, QFP, and PLCC
