PLTW Digital Electronics – Questions With Verified Solutions

Institution
PLTW Digital Electronics
Course
PLTW Digital Electronics

Content preview

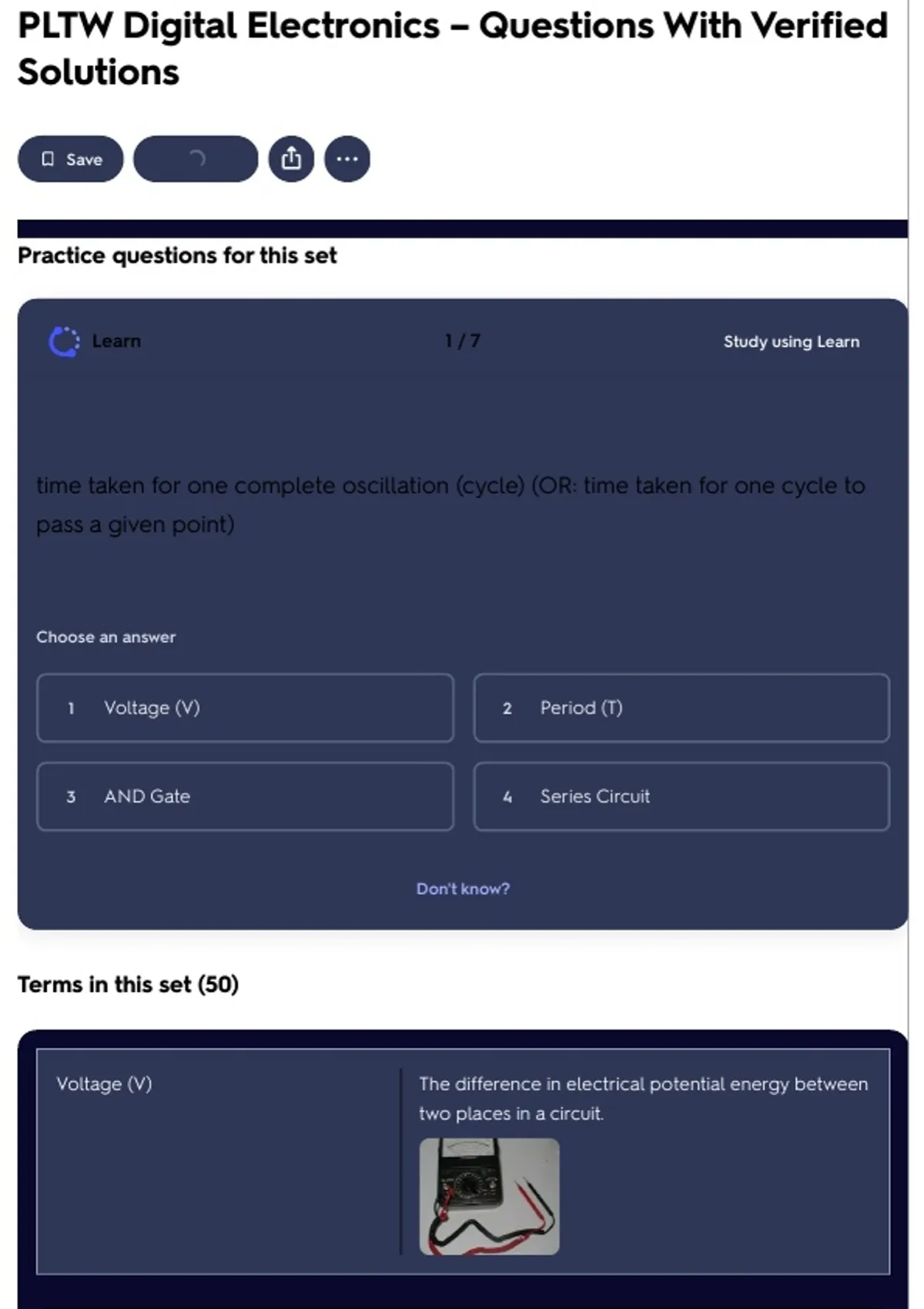

PLTW Digital Electronics – Questions With Verified
Solutions

Save




Practice questions for this set


Learn 1 /7 Study using Learn




time taken for one complete oscillation (cycle) (OR: time taken for one cycle to
pass a given point)



Choose an answer



1 Voltage (V) 2 Period (T)



3 AND Gate 4 Series Circuit



Don't know?




Terms in this set (50)



Voltage (V) The difference in electrical potential energy between
two places in a circuit.

, Current (I) A flow of electric charge.




Resistance (R) the opposition of current flow (measured in Ohms)




Ohm's Law The current in a circuit equals the voltage difference
divided by the resistance




Series Circuit A circuit in which all parts are connected end to end
to provide a single path of current.




Parallel Circuit A closed electrical circuit in which the current is
divided into two or more paths and then returns via a
common path to complete the circuit.
