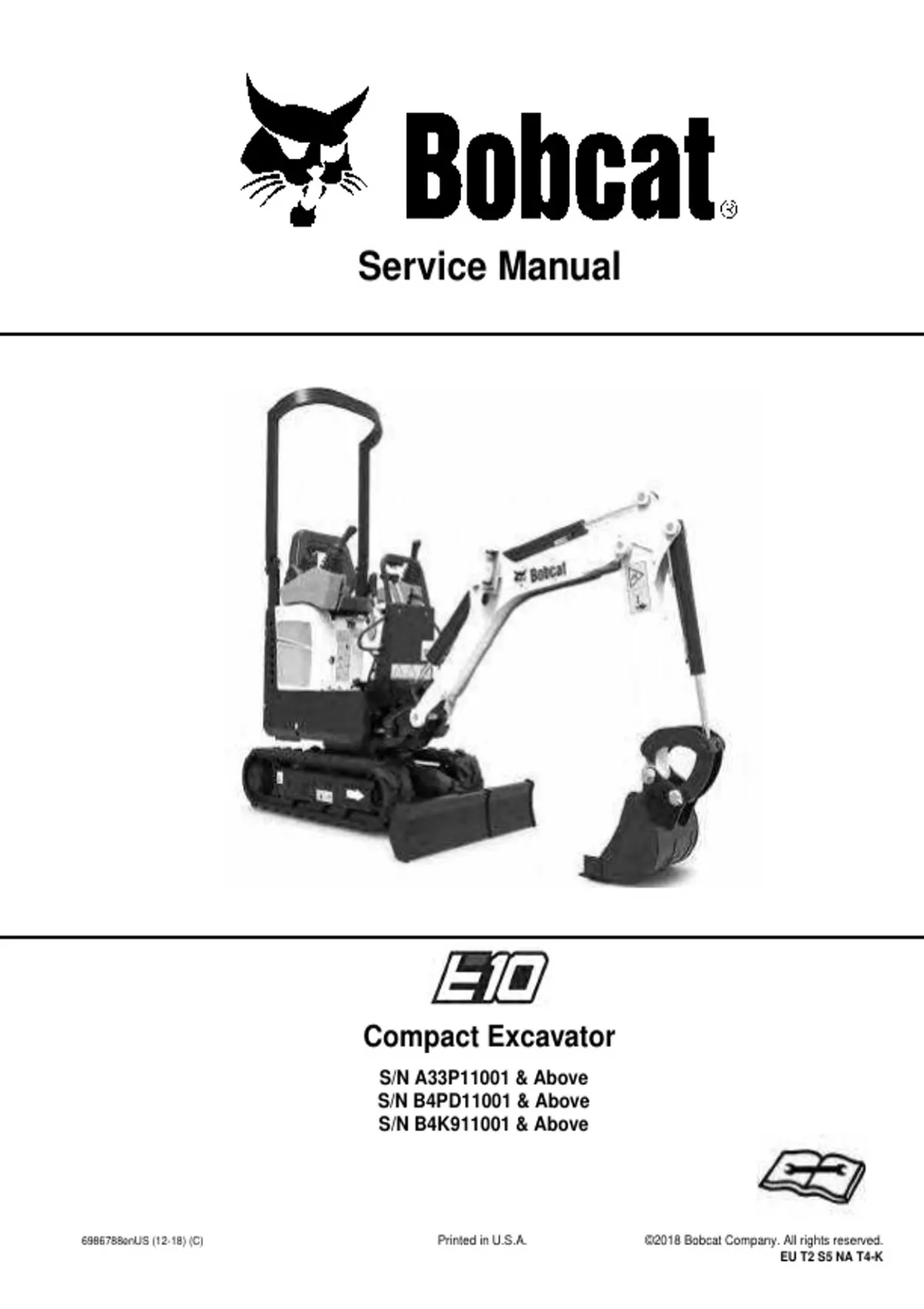

Service Manual
Compact Excavator
S/N A33P11001 & Above
S/N B4PD11001 & Above
S/N B4K911001 & Above
6986788enUS (12-18) (C) Printed in U.S.A. ©2018 Bobcat Company. All rights reserved.
EU T2 S5 NA T4-K
,
, MAINTENANCE SAFETY
Training is necessary before operating or servicing machine. Read and
understand the Operation & Maintenance Manual, Operator’s Handbook and
WARNING signs (stickers) on machine. Follow warnings and instructions in the manuals
when making repairs, adjustments or servicing. Check for correct function after
adjustments, repairs or service. Untrained operators and failure to follow
instructions can cause injury or death. W-2003-0807
Safety Alert Symbol: This symbol with a warning statement, means: “Warning, be alert! Your safety is
involved!” Carefully read the message that follows.
CORRECT CORRECT CORRECT
P-90216 RI075 RI072
Never service the Bobcat Compact Use the correct procedure to lift Cleaning and maintenance are
Excavator without instructions. and support the excavator. required daily.
WRONG WRONG WRONG
RI076 RI073 RI077
Have good ventilation when Vent exhaust to outside when Always lower the bucket and
welding or grinding painted parts. engine must be run for service. blade to the ground before doing
Wear dust mask when grinding Exhaust system must be tightly any maintenance.
painted parts. Toxic dust and gas sealed. Exhaust fumes can kill Never modify equipment or add
can be produced. without warning. attachments not approved by
Bobcat Company.
WRONG WRONG WRONG
RI074 RI071 B-19798
Stop, cool and clean engine of Keep body, jewellery and clothing Lead-acid batteries produce
flammable materials before away from moving parts, electrical flammable and explosive gases.
checking fluids. contact, hot parts and exhaust. Keep arcs, sparks, flames and
Never service or adjust machine Wear eye protection to guard from lighted tobacco away from
with the engine running unless battery acid, compressed springs, batteries.
instructed to do so in the fluids under pressure and flying Batteries contain acid which
manual. debris when engines are running burns eyes or skin on contact.
Avoid contact with leaking or tools are used. Use eye Wear protective clothing. If acid
hydraulic fluid or diesel fuel protections approved for type of contacts body, flush well with
under pressure. It can penetrate welding. water. For eye contact flush well
the skin or eyes. Keep tailgate closed except for and get immediate medical
Never fill fuel tank with engine service. Close and latch tailgate attention.
running, while smoking, or when before operating the excavator.
near open flame.
Maintenance procedures which are given in the Operation & Maintenance Manual can be performed by the owner/
operator without any specific technical training. Maintenance procedures which are not in the Operation &
Maintenance Manual must be performed ONLY BY QUALIFIED BOBCAT SERVICE PERSONNEL. Always use
genuine Bobcat replacement parts.
MSW33-0409
1-1 E10 Service Manual
