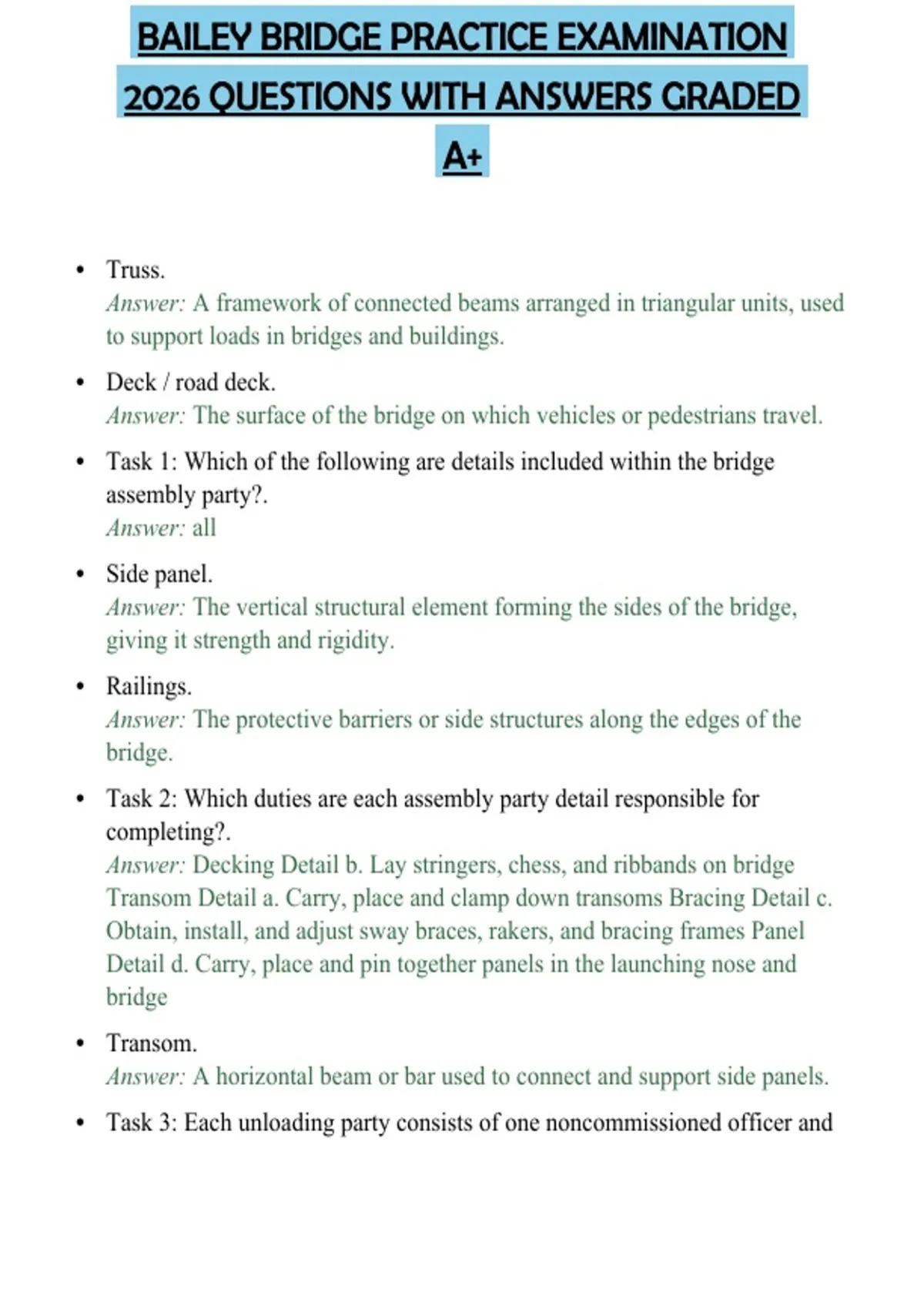

BAILEY BRIDGE PRACTICE EXAMINATION
2026 QUESTIONS WITH ANSWERS GRADED
A+
• Truss.
Answer: A framework of connected beams arranged in triangular units, used
to support loads in bridges and buildings.
• Deck / road deck.
Answer: The surface of the bridge on which vehicles or pedestrians travel.
• Task 1: Which of the following are details included within the bridge
assembly party?.
Answer: all
• Side panel.
Answer: The vertical structural element forming the sides of the bridge,
giving it strength and rigidity.
• Railings.
Answer: The protective barriers or side structures along the edges of the
bridge.
• Task 2: Which duties are each assembly party detail responsible for
completing?.
Answer: Decking Detail b. Lay stringers, chess, and ribbands on bridge
Transom Detail a. Carry, place and clamp down transoms Bracing Detail c.
Obtain, install, and adjust sway braces, rakers, and bracing frames Panel
Detail d. Carry, place and pin together panels in the launching nose and
bridge
• Transom.
Answer: A horizontal beam or bar used to connect and support side panels.
• Task 3: Each unloading party consists of one noncommissioned officer and
, ___ soldiers..
Answer: 8
• Sway brace.
Answer: A diagonal support used to stabilize a bridge against sideways
forces.
• Task 1: In what order should your unit assemble the launching nose of the
bridge?.
Answer: place panels connect second bay place sway braces rocking rollers
• When placing the panels on the ground behind the rocking rollers, should
the female or male ends be placed forward?.
Answer: female
• Once the panel pins have been inserted, where on the panels are the
transoms clamped?.
Answer: behind forward uprights
• Extender.
Answer: An additional piece added to increase the length or reach of a
bridge section.
• Unit (of the bridge).
Answer: A modular section of the bridge structure that can be connected to
others.
• What is used to secure the front end of the assembled bays onto the rocking
rollers?.
Answer: steel pickets
• Task 1: In what order should your unit construct the first bay of the bridge?.
Answer: connect panels of inner truss to launching nose add outer truss
panels insert 2nd and 3rd transoms add 2nd pay panels position stringers and
tighten sway brace position 3rd bay panels loosely fix sway braces, rakers,
and bracing frames tighten first bay bracing and deck first bay
• Task 2: The first step of constructing the first bay of the bridge is to connect
