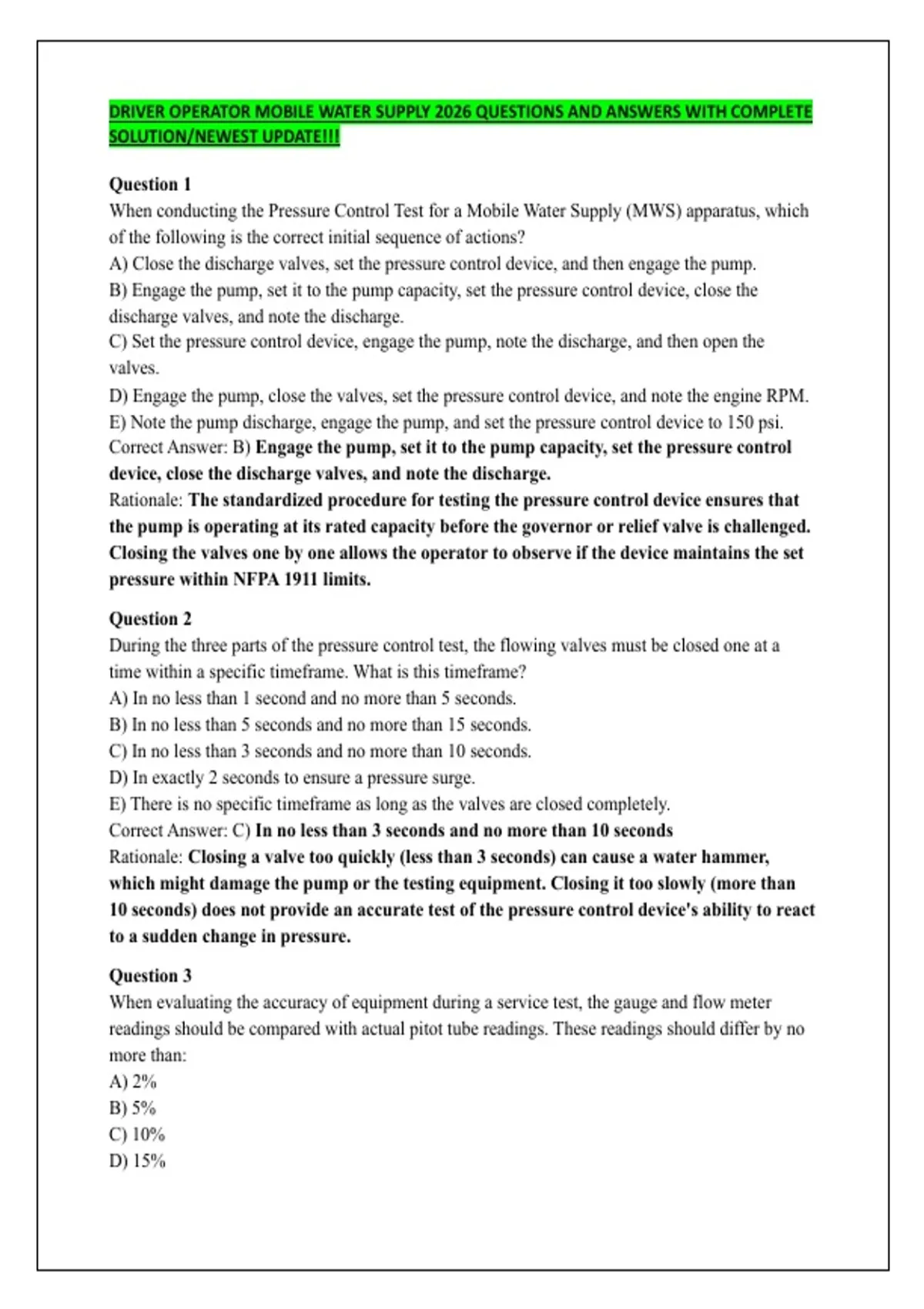

DRIVER OPERATOR MOBILE WATER SUPPLY 2026 QUESTIONS AND ANSWERS WITH COMPLETE
SOLUTION/NEWEST UPDATE!!!
Question 1
When conducting the Pressure Control Test for a Mobile Water Supply (MWS) apparatus, which
of the following is the correct initial sequence of actions?
A) Close the discharge valves, set the pressure control device, and then engage the pump.
B) Engage the pump, set it to the pump capacity, set the pressure control device, close the
discharge valves, and note the discharge.
C) Set the pressure control device, engage the pump, note the discharge, and then open the
valves.
D) Engage the pump, close the valves, set the pressure control device, and note the engine RPM.
E) Note the pump discharge, engage the pump, and set the pressure control device to 150 psi.
Correct Answer: B) Engage the pump, set it to the pump capacity, set the pressure control
device, close the discharge valves, and note the discharge.
Rationale: The standardized procedure for testing the pressure control device ensures that
the pump is operating at its rated capacity before the governor or relief valve is challenged.
Closing the valves one by one allows the operator to observe if the device maintains the set
pressure within NFPA 1911 limits.
Question 2
During the three parts of the pressure control test, the flowing valves must be closed one at a
time within a specific timeframe. What is this timeframe?
A) In no less than 1 second and no more than 5 seconds.
B) In no less than 5 seconds and no more than 15 seconds.
C) In no less than 3 seconds and no more than 10 seconds.
D) In exactly 2 seconds to ensure a pressure surge.
E) There is no specific timeframe as long as the valves are closed completely.
Correct Answer: C) In no less than 3 seconds and no more than 10 seconds
Rationale: Closing a valve too quickly (less than 3 seconds) can cause a water hammer,
which might damage the pump or the testing equipment. Closing it too slowly (more than
10 seconds) does not provide an accurate test of the pressure control device's ability to react
to a sudden change in pressure.
Question 3
When evaluating the accuracy of equipment during a service test, the gauge and flow meter
readings should be compared with actual pitot tube readings. These readings should differ by no
more than:
A) 2%
B) 5%
C) 10%
D) 15%
, 2
E) 20%
Correct Answer: C) 10%
Rationale: NFPA 1911 establishes a 10% tolerance for gauge accuracy during service
testing. If the difference between the flow meter or onboard gauges and the calibrated pitot
tube exceeds 10%, the gauges must be recalibrated or replaced to ensure safe fireground
operations.
Question 4
Which NFPA standard defines the minimum flow standards for the piping between an apparatus
water tank and the fire pump (the tank-to-pump flow rate test)?
A) NFPA 1001
B) NFPA 1500
C) NFPA 1901
D) NFPA 1911
E) NFPA 472
Correct Answer: C) NFPA 1901
Rationale: NFPA 1901, the Standard for Automotive Fire Apparatus, dictates the design
requirements for new apparatus, including the minimum flow rates that the internal piping
must be able to achieve from the tank to the pump.
Question 5
Which piece of equipment is specifically used to secure test nozzles during a service test to
prevent movement or injury?
A) Pitot tube
B) Tachometer
C) Compound gauge
D) Rope or test stand
E) Flow meter
Correct Answer: D) Rope or test stand
Rationale: Because of the high reaction forces generated by fire streams during capacity
testing, nozzles must be physically secured using a test stand or heavy-duty rope to ensure
the safety of the personnel conducting the test.
Question 6
What is the primary function of a Pitot tube during the service testing of an MWS apparatus?
A) To measure the vacuum in the intake hose.
B) To check the engine speed in RPM.
C) To measure the velocity pressure of a stream of water.
D) To read the flow of water directly in GPM.
E) To secure the discharge hose to the ground.
Correct Answer: C) Measures the velocity pressure of a stream of water
, 3
Rationale: A pitot tube is a handheld or fixed instrument that, when placed in a moving
stream of water from a smoothbore nozzle, measures the velocity pressure (in psi), which is
then used to calculate the actual flow in GPM.
Question 7
During a pump service test, a tachometer is utilized to:
A) Measure the pressure of the water.
B) Check the engine speed (RPM).
C) Determine the volume of water in the tank.
D) Calculate the friction loss in the hose.
E) Monitor the battery voltage.
Correct Answer: B) Checks engine speed
Rationale: Engine speed is a critical metric during pump testing. If the engine must run at a
higher RPM than originally rated to achieve the same pump discharge, it indicates
potential engine wear or pump inefficiency.
Question 8
Why are solid stream (smoothbore) nozzles preferred over fog nozzles for pump service testing?
A) They are easier to hold by hand.
B) They are required to match the volumes pumped for different tests and provide a laminar flow
for pitot readings.
C) They create more friction loss, making the test harder.
D) They allow the operator to change patterns during the test.
E) They are the only nozzles that work with LDH.
Correct Answer: B) Needed to match the volumes pumped for different tests
Rationale: Solid stream nozzles provide the most accurate flow readings when used with a
pitot tube because the water stream is more consolidated. Different tip sizes are used to
reach the specific GPM requirements of the 100%, 70%, and 50% capacity tests.
Question 9
Which gauge is used to check the pump intake pressure, specifically showing both positive
pressure and vacuum?
A) Flow Meter
B) Pitot Gauge
C) Discharge Gauge
D) Compound Gauge
E) Voltmeter
Correct Answer: D) Compound gauge
Rationale: A compound gauge is unique because it can measure both positive pressure (psi)
and vacuum (inches of mercury). This is essential for monitoring intake conditions,
especially during drafting operations.
, 4
Question 10
Identify the two most important reasons for maintaining comprehensive MWS apparatus records.
A) To track fuel prices and driver names.
B) To keep the team informed about equipment conditions and help determine if equipment
should be repaired or replaced.
C) To ensure the apparatus is clean and to track the number of times it was washed.
D) To record the music played in the cab and the route taken.
E) To provide a list of local gas stations and map coordinates.
Correct Answer: B) Keeps everyone on the team informed about equipment conditions and
helps determine whether equipment should be repaired/replaced.
Rationale: Documentation ensures a "paper trail" for safety and liability. It allows the
department to see trends in mechanical failure (indicating the need for replacement) and
ensures that the next shift is aware of any defects.
Question 11
An MWS apparatus steering system is considered deficient and potentially dangerous if the
steering wheel can be rotated more than how many degrees without moving the front tires?
A) 2 degrees
B) 5 degrees
C) 10 degrees
D) 20 degrees
E) 45 degrees
Correct Answer: C) 10 degrees
Rationale: Excessive "play" in the steering wheel (more than 10 degrees on a 20-inch wheel)
indicates worn steering components, which can lead to wandering on the road or a loss of
control, especially given the high center of gravity of a water tanker.
Question 12
When starting an MWS apparatus, why should all electrical switches be in the "OFF" position?
A) To prevent a fuse from blowing.
B) To ensure the radio is not too loud when the engine starts.
C) To start the engine without an unnecessary electrical load.
D) To prevent the battery from charging too fast.
E) To check if the switches are loose.
Correct Answer: C) Start engine without a load
Rationale: Starting a large diesel engine requires significant amperage from the batteries.
By turning off lights, sirens, and climate control, you ensure the maximum available power
is directed to the starter motor and prevents a "load sequencer" from being overwhelmed.
Question 13
To ensure consistency, NFPA 1911 states that during service testing, the atmospheric air
