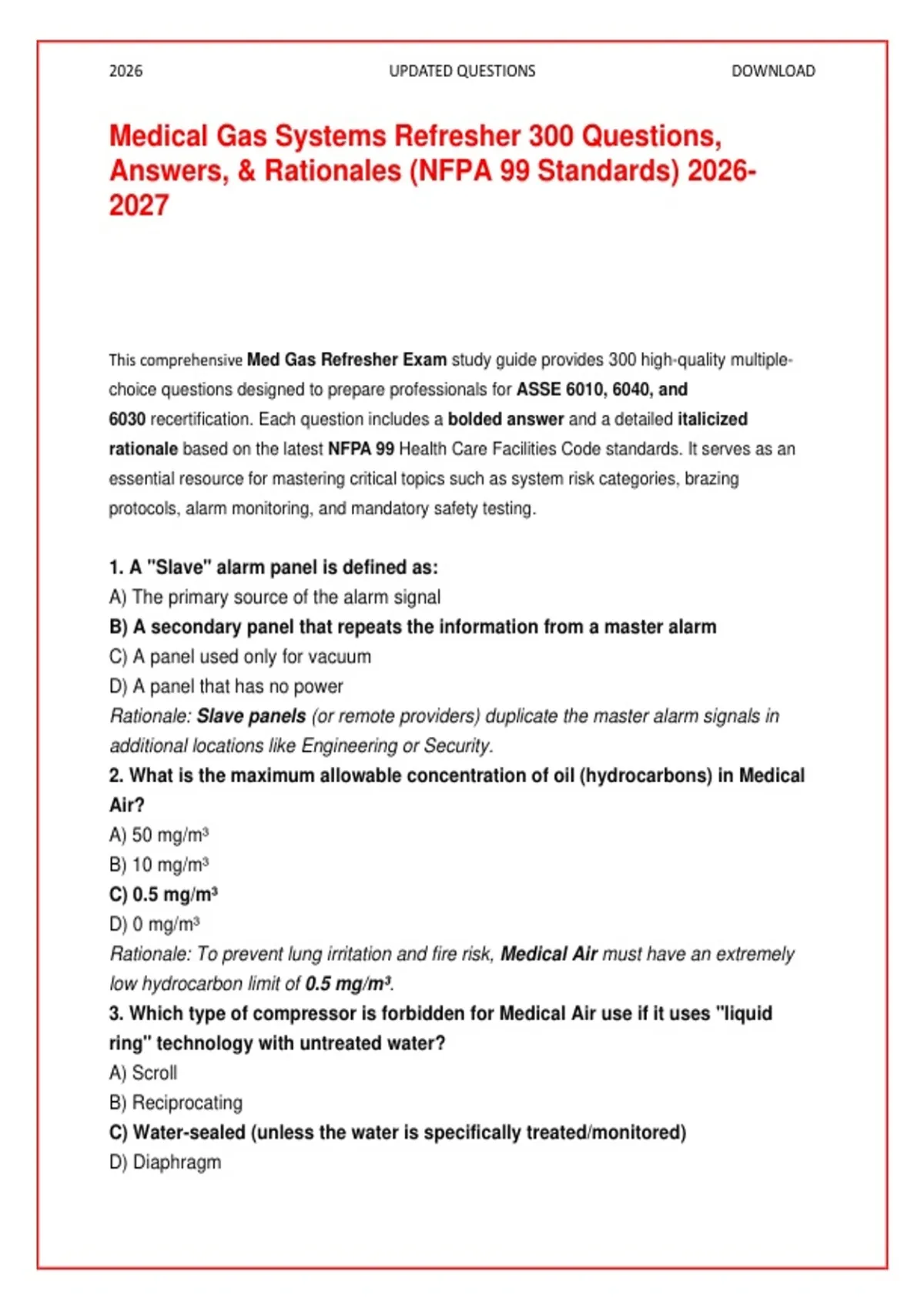

2026 UPDATED QUESTIONS DOWNLOAD
Medical Gas Systems Refresher 300 Questions,
Answers, & Rationales (NFPA 99 Standards) 2026-
2027
This comprehensive Med Gas Refresher Exam study guide provides 300 high-quality multiple-
choice questions designed to prepare professionals for ASSE 6010, 6040, and
6030 recertification. Each question includes a bolded answer and a detailed italicized
rationale based on the latest NFPA 99 Health Care Facilities Code standards. It serves as an
essential resource for mastering critical topics such as system risk categories, brazing
protocols, alarm monitoring, and mandatory safety testing.
1. A "Slave" alarm panel is defined as:
A) The primary source of the alarm signal
B) A secondary panel that repeats the information from a master alarm
C) A panel used only for vacuum
D) A panel that has no power
Rationale: Slave panels (or remote providers) duplicate the master alarm signals in
additional locations like Engineering or Security.
2. What is the maximum allowable concentration of oil (hydrocarbons) in Medical
Air?
A) 50 mg/m³
B) 10 mg/m³
C) 0.5 mg/m³
D) 0 mg/m³
Rationale: To prevent lung irritation and fire risk, Medical Air must have an extremely
low hydrocarbon limit of 0.5 mg/m³.
3. Which type of compressor is forbidden for Medical Air use if it uses "liquid
ring" technology with untreated water?
A) Scroll
B) Reciprocating
C) Water-sealed (unless the water is specifically treated/monitored)
D) Diaphragm
,2026 UPDATED QUESTIONS DOWNLOAD
Rationale: Water-sealed compressors can introduce bacteria or contaminants if the
water quality isn't strictly controlled.
4. All medical gas alarm systems must be powered by:
A) AA Batteries
B) Solar panels
C) The facility's life safety (emergency) electrical circuit
D) A dedicated wind turbine
Rationale: Alarm panels must remain functional during a power outage to monitor life-
support gases.
5. "Line Pressure" gauges must be accurate to within what percentage of the full
scale?
A) 1%
B) 3%
C) 10%
D) 20%
Rationale: NFPA 99 requires gauges to have a 3% accuracy rating to ensure clinicians
see the true pressure being delivered.
6. What is the required "Purge Flow Rate" during brazing to prevent internal
scale?
A) 100 CFM
B) A low-volume, non-turbulent flow (approx. 5-10 CFH)
C) High-pressure blast
D) 0 CFH
Rationale: A low-volume purge ensures all oxygen is displaced without blowing the
filler metal out of the joint.
7. When installing a "Main Valve," it must be located:
A) In a box or area that is accessible to authorized personnel only
B) Under the floorboards
C) In the patient's bathroom
D) On the roof without a ladder
Rationale: The Main Valve is critical infrastructure and must be protected from
tampering.
8. For Nitrogen (Instrument Air) systems, the high-pressure alarm triggers at:
A) 60 psi
B) 100 psi
C) 20% above the normal 160-185 psi operating pressure
,2026 UPDATED QUESTIONS DOWNLOAD
D) 500 psi
Rationale: Like 50 psi systems, high-pressure systems use the 20% variance rule for
alarm set-points.
9. "Surgical Vacuum" and "Lab Vacuum" systems must be:
A) Connected to the same pipe
B) Completely separate and independent systems
C) Painted the same color
D) Connected to the kitchen vent
Rationale: Separation prevents lab chemicals or biological hazards from contaminating
the clinical suction system.
10. What is the color-coding for a "Nitrogen" label in the US?
A) Blue
B) Yellow
C) Black
D) Green
Rationale: Black is the standard identifying color for Nitrogen gas.
11. A "High Dew Point" alarm in a Medical Air system often indicates a failure in
the:
A) Pump motor
B) Desiccant or refrigerated dryer
C) Check valve
D) Pressure gauge
Rationale: The dryer is responsible for removing moisture; a high dew point means the
dryer is not performing.
12. When testing for "Particulates," a 0.45-micron filter must show no more than
how much debris after 10 cubic feet of gas?
A) 1 mg
B) 10 mg
C) 100 mg
D) 1 gram
Rationale: The 1 mg limit ensures the pipes are "oxygen clean" and free of construction
dust.
13. A "Category 1" vacuum pump must be able to reach its peak calculated
demand with:
A) All pumps running
B) The largest single pump out of service (N+1 redundancy)
, 2026 UPDATED QUESTIONS DOWNLOAD
C) Only one pump running
D) The power turned off
Rationale: Redundancy ensures the hospital never loses suction even during
mechanical failure of one unit.
14. Medical gas piping installed in "Corrosive Environments" (like near a pool)
must be:
A) Painted red
B) Protected by a protective wrap or coating
C) Made of wood
D) Replaced every month
Rationale: Corrosion protection prevents the copper from thinning and eventually
leaking.
15. "WAGD" inlets are often located in which hospital area?
A) Operating Rooms and Post-Op Recovery
B) The Lobby
C) The Cafeteria
D) The Parking Garage
Rationale: WAGD removes waste anesthetic gases directly from the source in surgical
suites.
16. The "Station Outlet" is the point where:
A) The gas is made
B) The patient equipment connects to the gas system
C) The pipe enters the building
D) The alarm is located
Rationale: The Station Outlet is the final "wall plug" for oxygen, air, or vacuum.
17. "Automatic Switchover" manifolds are used to:
A) Change from an empty bank of cylinders to a full one without interrupting flow
B) Turn off the lights
C) Lower the bill
D) Heat the gas
Rationale: Switchover manifolds ensure a continuous supply of gas 24/7.
18. What is the standard pressure for "Carbon Dioxide" delivery in a hospital?
A) 50-55 psi
B) 10 psi
C) 200 psi
D) 1000 psi
