Siemens Level 1 sample exam| Actual exam questions and 100% correct answers| Complete| Latest update

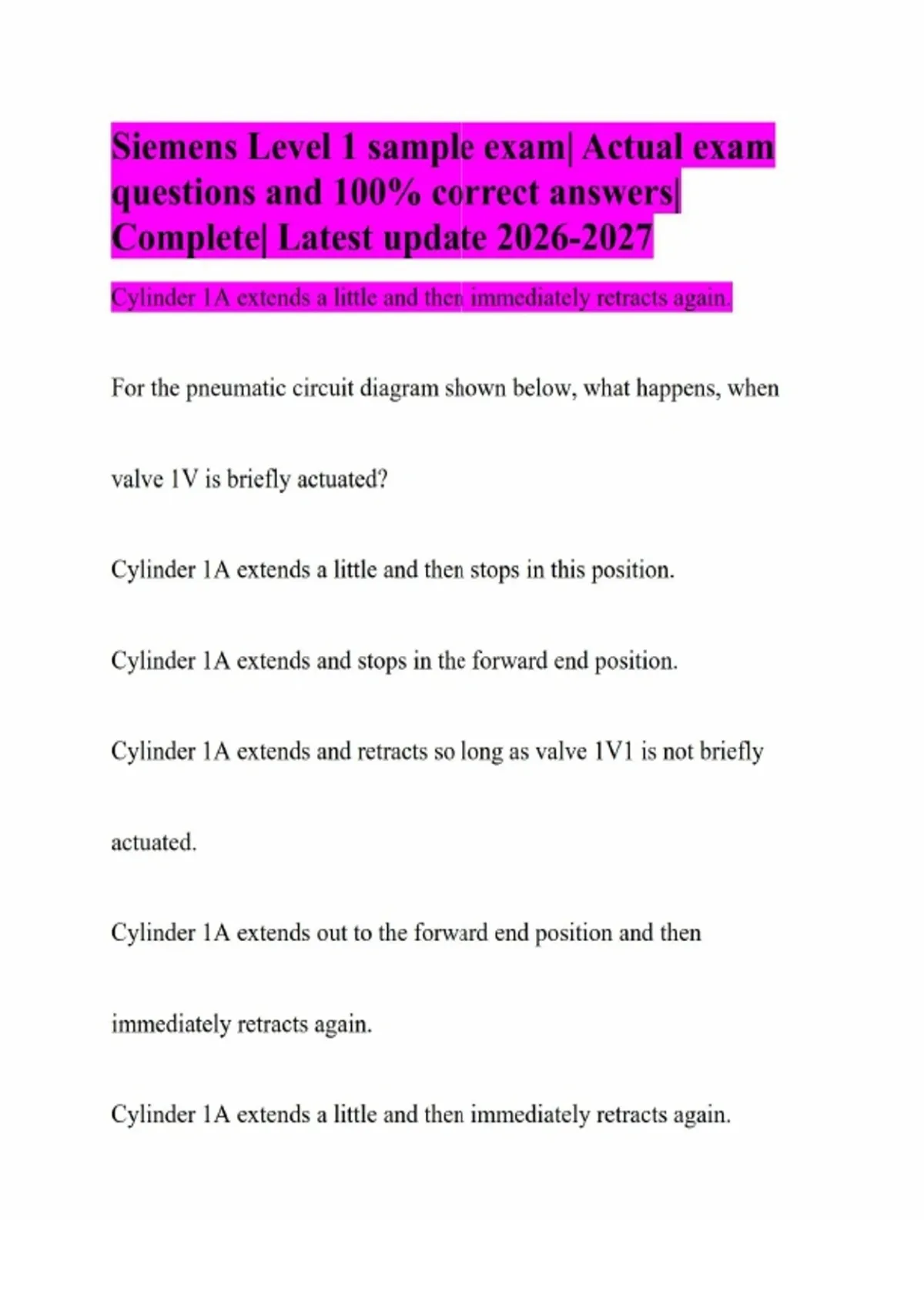

Siemens Level 1 sample exam| Actual exam questions and 100% correct answers| Complete| Latest update Cylinder 1A extends a little and then immediately retracts again. For the pneumatic circuit diagram shown below, what happens, when valve 1V is briefly actuated? Cylinder 1A extends a little and then stops in this position. Cylinder 1A extends and stops in the forward end position. Cylinder 1A extends and retracts so long as valve 1V1 is not briefly actuated. Cylinder 1A extends out to the forward end position and then immediately retracts again. Cylinder 1A extends a little and then immediately retracts again. Vacuum Generator Which component is represented symbolically? 2/2- way valve 3/2- way valve Shuttle Valve Vacuum Generator Quick exhaust valve Adjustable one-way flow control valve 1V2. In the pneumatic controlled system shown below, the cylinder does not retract. Given the following measurements, what could be the possible cause of the malfunction? Cylinder 1A. Valve 1V1. Solenoid coil 1Y2. Adjustable one-way flow control valve 1V2. Adjustable one-way flow control valve 1V3. pe = 5.5 bar As shown below, the force required to advance the cylinder should be 600 N. During the cylinder extension, the back pressure of the adjustable one-way flow control valve is 1.5 bar. What is the applied air pressure pe in bar? pe = 3.0 bar pe = 5.5 bar pe = 6.0 bar pe = 6.5 bar pe = 12.0 bar -As long as no pushbutton is pressed, the directional control valve remains in the retracted end position. -The piston rod of the cylinder is to be advanced if either of the two pushbuttons S1 or S2 is pressed. The electrical circuit diagram and the pneumatic circuit diagram of a control system are shown below. Which statements about the mode of action are correct? two answers are correct -As long as no pushbutton is pressed, the directional control valve remains in the retracted end position. -If one of the two pushbuttons is pressed, the directional control valve remains in the retracted end position.
