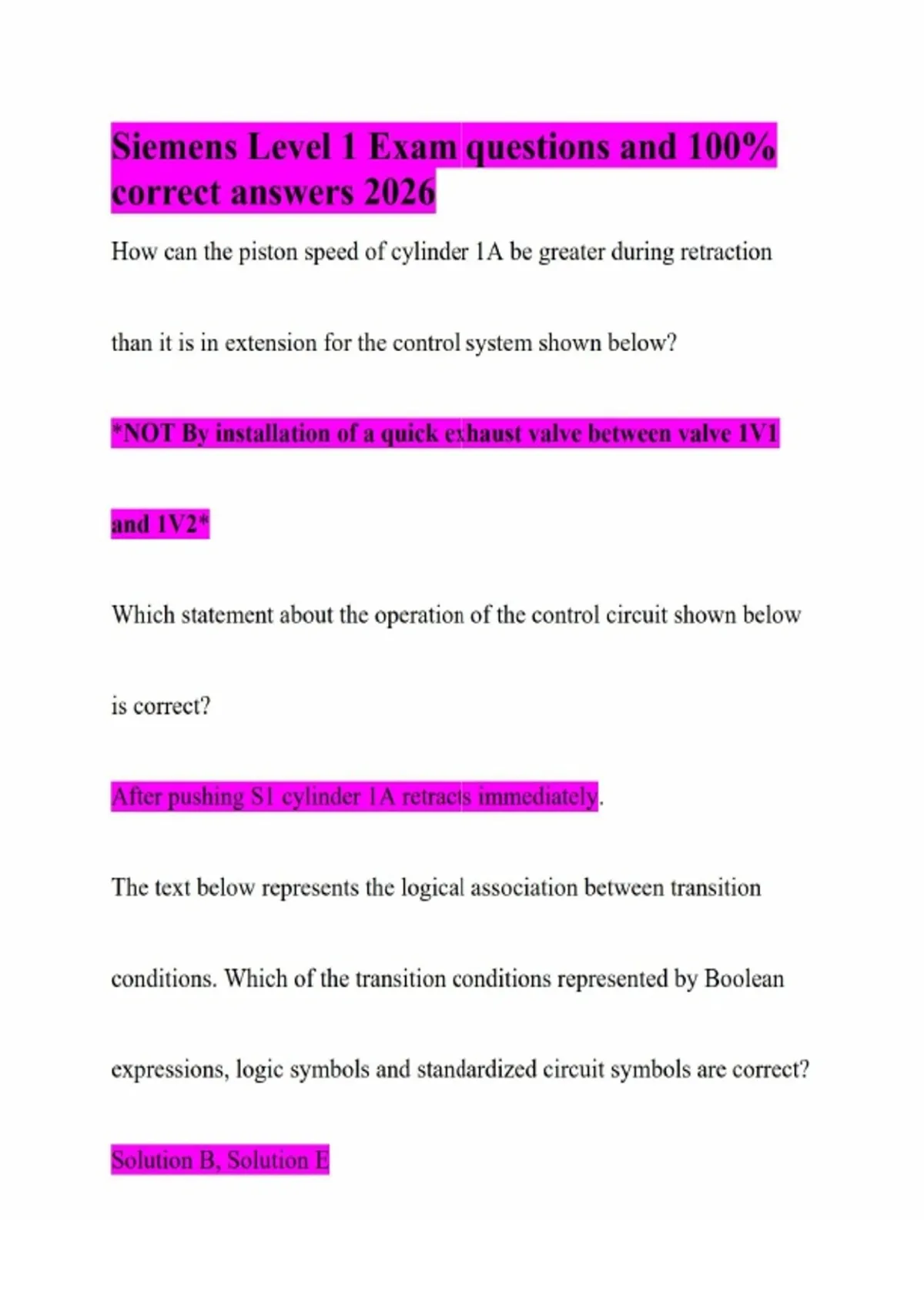

Siemens Level 1 Exam questions and 100% correct answers 2026

Siemens Level 1 Exam questions and 100% correct answers 2026 How can the piston speed of cylinder 1A be greater during retraction than it is in extension for the control system shown below? *NOT By installation of a quick exhaust valve between valve 1V1 and 1V2* Which statement about the operation of the control circuit shown below is correct? After pushing S1 cylinder 1A retracts immediately. The text below represents the logical association between transition conditions. Which of the transition conditions represented by Boolean expressions, logic symbols and standardized circuit symbols are correct? Solution B, Solution EWhich of the following displacement step diagrams show the operations of the cylinder 1A and the valve 1V1 correctly in the pneumatic circuit diagram below? Diagram A For the pneumatic circuit diagram shown below, which task does valve 1V2 do? It serves to set the forward speed of cylinder 1A. Which of the following output voltages based on the float position of an automotive fuel level sensor, as shown below, is correct? 10V 5V 0V An electrical power supply is shown below. Which statements about the functionality ofthe circuit are correct?*NOT The diode rectifier changes the AC voltage to a pulsating fullwave DC voltagethat is smoothed by the capacitor C1. AND If the fuse is blown, the AC voltage between point 2 and 3 will be 230 V.* In a testing application inspection cylinder 2A has to distinguish between lower and upper half cubes, as shown below. Which statements about the mode of operation are correct?
