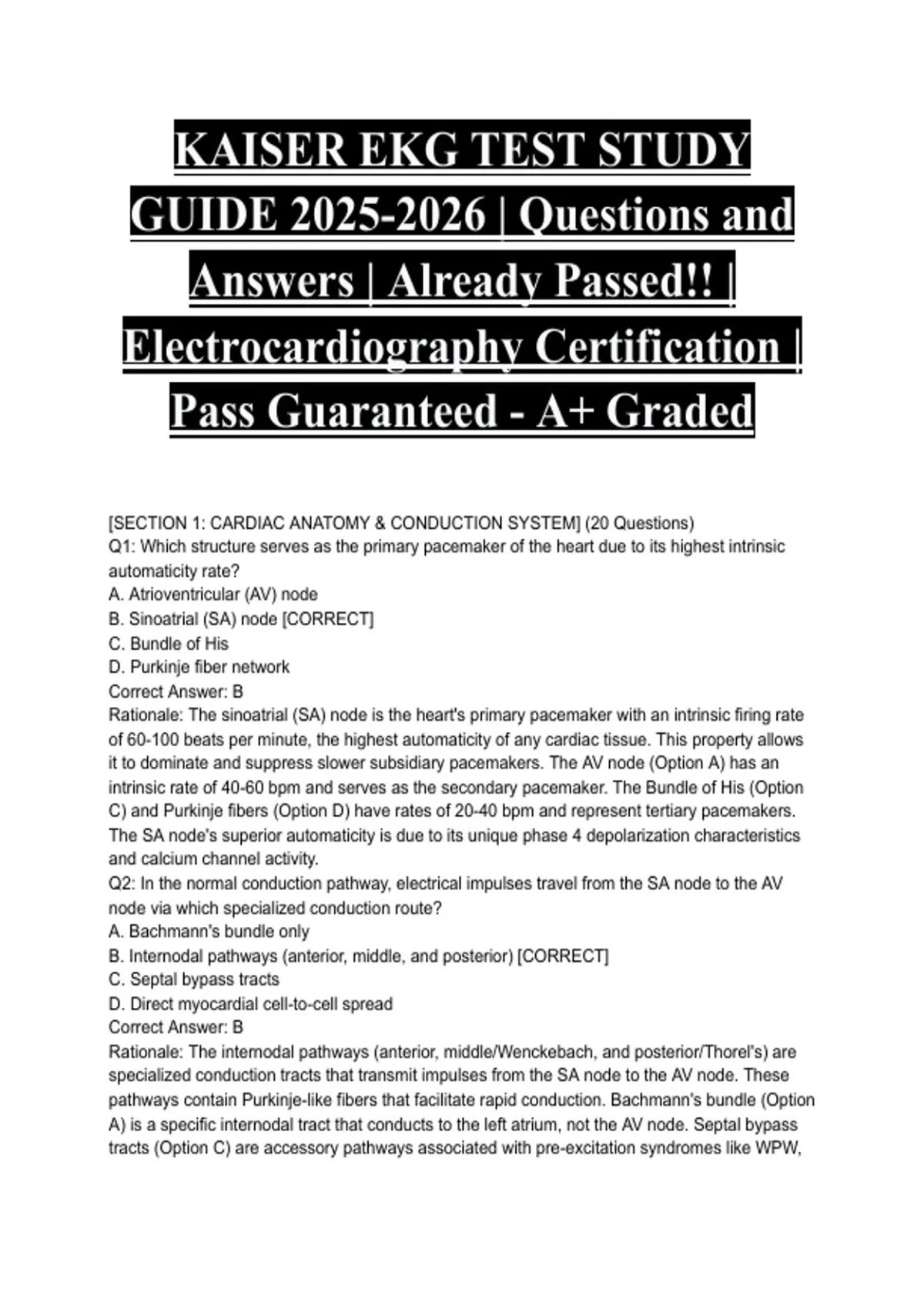

AISER EKG TEST STUDY
K
GUIDE 2025-2026 | Questions and
Answers | Already Passed!! |
Electrocardiography Certification |
Pass Guaranteed - A+ Graded
[SECTION 1: CARDIAC ANATOMY & CONDUCTION SYSTEM] (20 Questions)
Q1: Which structure serves as the primary pacemaker of the heart due to its highest intrinsic
automaticity rate?
A. Atrioventricular (AV) node
B. Sinoatrial (SA) node [CORRECT]
C. Bundle of His
D. Purkinje fiber network
Correct Answer: B
Rationale: The sinoatrial (SA) node is the heart's primary pacemaker with an intrinsic firing rate
of 60-100 beats per minute, the highest automaticity of any cardiac tissue. This property allows
it to dominate and suppress slower subsidiary pacemakers. The AV node (Option A) has an
intrinsic rate of 40-60 bpm and serves as the secondary pacemaker. The Bundle of His (Option
C) and Purkinje fibers (Option D) have rates of 20-40 bpm and represent tertiary pacemakers.
The SA node's superior automaticity is due to its unique phase 4 depolarization characteristics
and calcium channel activity.
Q2: In the normal conduction pathway, electrical impulses travel from the SA node to the AV
node via which specialized conduction route?
A. Bachmann's bundle only
B. Internodal pathways (anterior, middle, and posterior) [CORRECT]
C. Septal bypass tracts
D. Direct myocardial cell-to-cell spread
Correct Answer: B
Rationale: The internodal pathways (anterior, middle/Wenckebach, and posterior/Thorel's) are
specialized conduction tracts that transmit impulses from the SA node to the AV node. These
pathways contain Purkinje-like fibers that facilitate rapid conduction. Bachmann's bundle (Option
A) is a specific internodal tract that conducts to the left atrium, not the AV node. Septal bypass
tracts (Option C) are accessory pathways associated with pre-excitation syndromes like WPW,
, ot normal conduction. While some cell-to-cell spread occurs (Option D), the organized
n
internodal pathways ensure efficient, directional conduction.
Q3: The delay in conduction at the AV node serves what critical physiological purpose?
A. Accelerates ventricular depolarization
B. Allows complete atrial contraction and ventricular filling before ventricular systole
[CORRECT]
C. Prevents retrograde conduction to the atria
D. Increases heart rate variability
Correct Answer: B
Rationale: The AV nodal delay (approximately 0.10 seconds) is essential for proper cardiac
hemodynamics, allowing the atria to complete contraction and fully empty blood into the
ventricles before ventricular systole begins. This "atrial kick" contributes 15-30% of ventricular
filling, particularly important at higher heart rates. The delay does not accelerate depolarization
(Option A) or prevent retrograde conduction (Option C)—retrograde conduction can and does
occur in junctional rhythms. While heart rate variability exists (Option D), it is not the primary
purpose of AV nodal delay.
Q4: Which component of the conduction system bifurcates into right and left bundle branches?
A. Sinoatrial node
B. Atrioventricular node
C. Bundle of His [CORRECT]
D. Purkinje fibers
Correct Answer: C
Rationale: The Bundle of His emerges from the distal AV node, penetrates the fibrous skeleton
of the heart, and divides into the right bundle branch (supplying the right ventricle) and left
bundle branch (further dividing into left anterior and left posterior fascicles). The SA node
(Option A) and AV node (Option B) are proximal structures that do not bifurcate. The Purkinje
fibers (Option D) are the terminal branching network distal to the bundle branches, not the
bifurcation point itself.
Q5: The left bundle branch divides into which two main fascicles?
A. Anterior and medial fascicles
B. Anterior and posterior fascicles [CORRECT]
C. Superior and inferior fascicles
D. Septal and lateral fascicles
Correct Answer: B
Rationale: The left bundle branch divides into the left anterior fascicle (superior division) and left
posterior fascicle (inferior division), supplying the anterosuperior and posteroinferior left ventricle
respectively. The left anterior fascicle is longer, thinner, and supplied by a single artery (LAD
septal perforators), making it more susceptible to ischemic block. A third "septal" or median
fascicle is described anatomically but not electrocardiographically distinct. The terms
"superior/inferior" (Option C) and "septal/lateral" (Option D) describe anatomical regions but not
the standard fascicular nomenclature.
Q6: Which statement accurately describes the blood supply to the AV node?
A. Exclusively from the left anterior descending artery
, . Typically from the right coronary artery in 90% of patients (right-dominant circulation)
B
[CORRECT]
C. Exclusively from the left circumflex artery
D. Dual supply from both left and right coronary arteries equally
Correct Answer: B
Rationale: In approximately 90% of the population (right-dominant circulation), the AV nodal
artery arises from the right coronary artery (RCA) as it curves around the tricuspid annulus. In
the remaining 10% (left-dominant or codominant circulation), supply comes from the left
circumflex artery. The LAD (Option A) primarily supplies the anterior fascicle. While some
collateral circulation exists, the supply is not equally dual (Option D). RCA occlusion commonly
causes inferior MI with associated AV nodal ischemia and heart blocks.
Q7: Automaticity refers to which electrophysiological property?
A. The ability to conduct impulses rapidly
B. The spontaneous generation of electrical impulses without external stimulation [CORRECT]
C. The refractory period following depolarization
D. The all-or-none response to threshold stimulation
Correct Answer: B
Rationale: Automaticity is the intrinsic property of cardiac pacemaker cells to spontaneously
depolarize during phase 4 of the action potential, generating rhythmic impulses without neural or
hormonal stimulation. This results from the "funny current" (If) carried by sodium and calcium
ions through HCN channels. Rapid conduction (Option A) describes conductivity, not
automaticity. The refractory period (Option C) prevents re-excitation during repolarization. The
all-or-none principle (Option D) describes the response to stimulation in contractile myocardium,
not spontaneous impulse generation.
Q8: Which structure has the slowest intrinsic automaticity rate and therefore functions as the
heart's "last resort" pacemaker?
A. SA node (60-100 bpm)
B. AV node (40-60 bpm)
C. Bundle of His (30-40 bpm)
D. Purkinje fibers (20-40 bpm) [CORRECT]
Correct Answer: D
Rationale: The Purkinje fiber network has the slowest intrinsic rate (20-40 bpm), making it the
tertiary or "escape" pacemaker. When higher pacemakers fail, Purkinje fibers can initiate
ventricular escape rhythms to maintain cardiac output. The SA node (Option A) is primary, the
AV node (Option B) is secondary, and the Bundle of His (Option C) has intermediate
automaticity between AV node and Purkinje fibers. These hierarchical rates ensure that faster
pacemakers normally suppress slower ones (overdrive suppression).
Q9: The fibrous skeleton of the heart serves what important electrical function?
A. Conducts impulses between atria and ventricles
B. Electrically insulates the atria from the ventricles except at the AV node [CORRECT]
C. Generates electrical impulses in emergency situations
D. Stores calcium for myocardial contraction
Correct Answer: B
