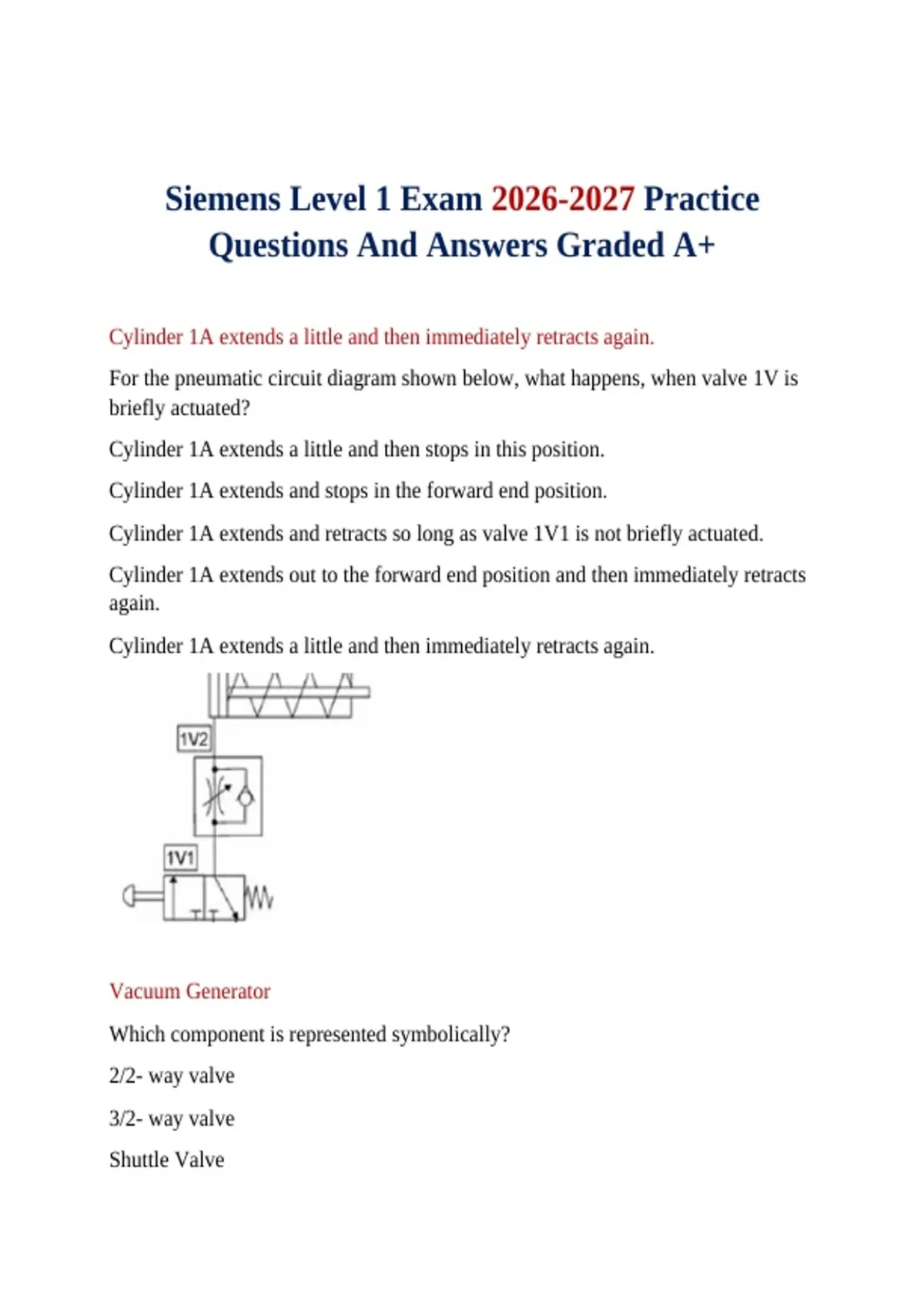

Siemens Level 1 Exam 2026-2027 Practice
Questions And Answers Graded A+
Cylinder 1A extends a little and then immediately retracts again.
For the pneumatic circuit diagram shown below, what happens, when valve 1V is
briefly actuated?
Cylinder 1A extends a little and then stops in this position.
Cylinder 1A extends and stops in the forward end position.
Cylinder 1A extends and retracts so long as valve 1V1 is not briefly actuated.
Cylinder 1A extends out to the forward end position and then immediately retracts
again.
Cylinder 1A extends a little and then immediately retracts again.
Vacuum Generator
Which component is represented symbolically?
2/2- way valve
3/2- way valve
Shuttle Valve
,Vacuum Generator
Quick exhaust valve
Adjustable one-way flow control valve 1V2.
In the pneumatic controlled system shown below, the cylinder does not retract.
Given the following measurements, what could be the possible cause of the
malfunction?
Cylinder 1A.
Valve 1V1.
Solenoid coil 1Y2.
Adjustable one-way flow control valve 1V2.
Adjustable one-way flow control valve 1V3.
pe = 5.5 bar
,As shown below, the force required to advance the cylinder should be 600 N.
During the cylinder extension, the back pressure of the adjustable one-way flow
control valve is 1.5 bar. What is the applied air pressure pe in bar?
pe = 3.0 bar
pe = 5.5 bar
pe = 6.0 bar
pe = 6.5 bar
pe = 12.0 bar
-As long as no pushbutton is pressed, the directional control valve remains in the
retracted end position.
-The piston rod of the cylinder is to be advanced if either of the two pushbuttons
S1 or S2 is pressed.
The electrical circuit diagram and the pneumatic circuit diagram of a control
system are shown below. Which statements about the mode of action are correct?
two answers are correct
-As long as no pushbutton is pressed, the directional control valve remains in the
retracted end position.
-If one of the two pushbuttons is pressed, the directional control valve remains in
the retracted end position.
-The piston rod of the cylinder is to be advanced only if both pushbuttons S1 and
S2 are pressed.
, -The piston rod is advanced. When one of the two pushbuttons is released, the
directional control valve switches to the normal position. The piston rod is
retracted.
-The piston rod of the cylinder is to be advanced if either of the two pushbuttons
S1 or S2 is pressed.
While cylinder 2A advances, cylinder 1A remains in the actuated position.
A simplified displacement step diagram is shown below. Which of the following
statements about the operation of the control system is correct?
While cylinder 2A advances, cylinder 1A remains in the actuated position.
Cylinder 2A advances after cylinder 1A has reached its retracted end position.
Cylinder 2A extends. When the forward end position is reached, the piston rod
returns automatically.
The solenoid coil of 1V1 is energized as long as cylinder 1A advances and retracts.
Cylinder 1A retracts as soon as valve 2V1 is actuated.
