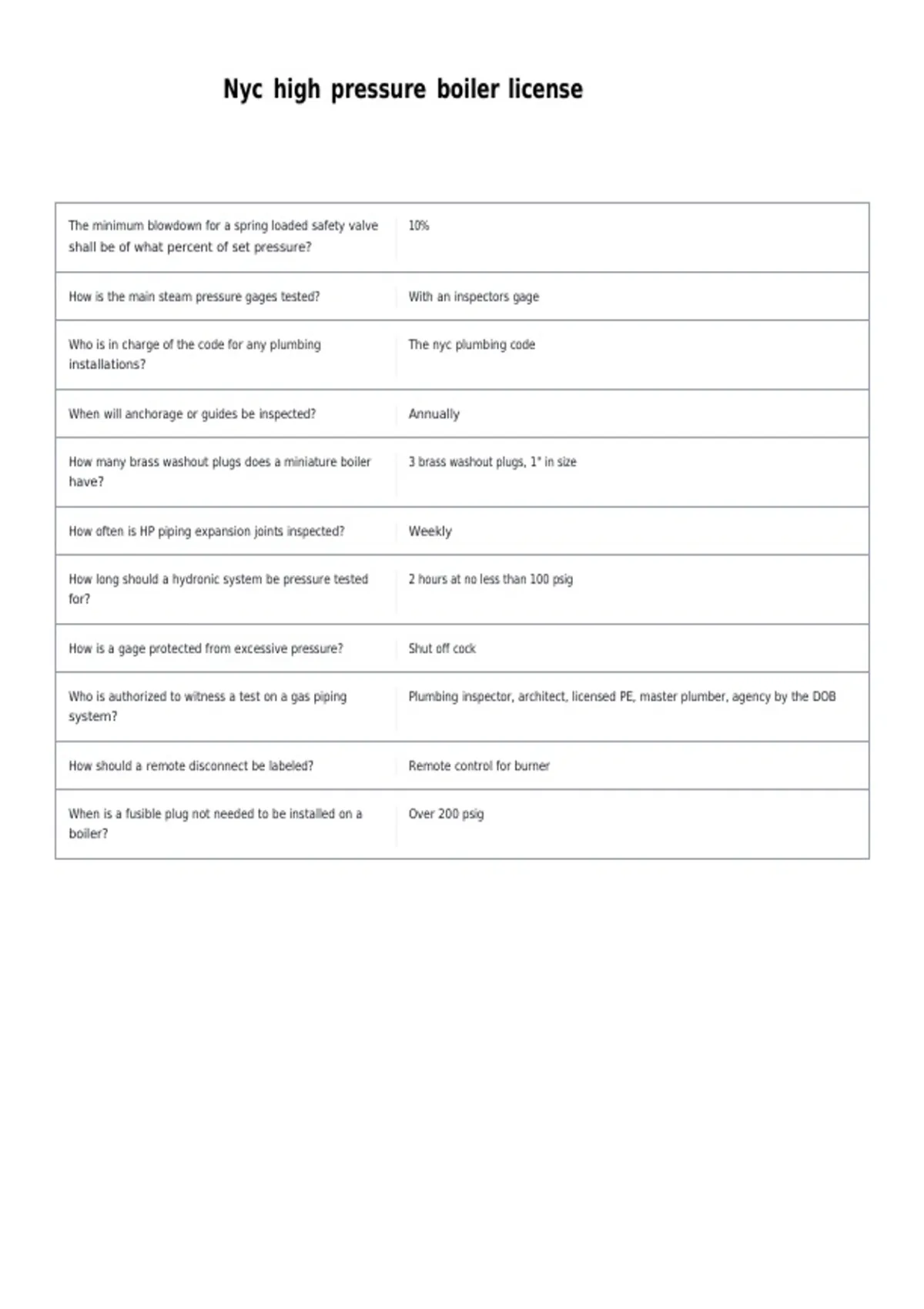

Nyc high pressure boiler license
The minimum blowdown for a spring loaded safety valve 10%
shall be of what percent of set pressure?
How is the main steam pressure gages tested? With an inspectors gage
Who is in charge of the code for any plumbing The nyc plumbing code
installations?
When will anchorage or guides be inspected? Annually
How many brass washout plugs does a miniature boiler 3 brass washout plugs, 1" in size
have?
How often is HP piping expansion joints inspected? Weekly
How long should a hydronic system be pressure tested 2 hours at no less than 100 psig
for?
How is a gage protected from excessive pressure? Shut off cock
Who is authorized to witness a test on a gas piping Plumbing inspector, architect, licensed PE, master plumber, agency by the DOB
system?
How should a remote disconnect be labeled? Remote control for burner
When is a fusible plug not needed to be installed on a Over 200 psig
boiler?
, When shall a power boiler with a MAWP over 400 be Pressure tested annually
tested?
What shall a design plan of a boiler and application Size, location, operating pressure + temperature of the pressure vessel and type +
contain but not limited to? specs of PRV
Who is responsible for maintaining the copies of the The welding agency and shall be available to the DOB
certified welder qualifications report?
Who needs to furnish a control diagram and boiler The installer
operation instructions?
Who will certify and calibrate all gages utilized for A testing operator
testing?
What shall be placed in between different joints and An approved adapter fitting
piping material?
What items are exempt from the reporting requirements? The seal welds of the tubes and the installation of back rings to man holes and
hand holes to boilers
Who will be under control for any welding done to a An engineer supervising a welding inspection agency acceptable to the DOB
high pressure tank?
At what pressure is it requires to have extra heavy valves 100 psig
installed?
The_____files an application for a boiler alteration? Inspector
How many safety valves does a boiler have with over 2
500 square feet of heating surface?
Gas fired boilers not exceeding 100 square feet of Single or double cone type of hood diverter in the stack
heating surface shall be provided with a?
A heater for either liquid fuels or other liquids harmful to Directly in the steam or water space within the boiler
the boiler shall not be installed?
Who is responsible for any spatial relationship between The installer of the last installation to correct a violation
tanks and gas services?
Who is responsible for the setting of operating and The Installing Company
safety controls?
With what safety fitting shall you protect high pressure Dual low water cut outs
steam and water boilers with?
Spring loaded safety valves have a total combined 100% of the max designed capacity of the boiler
relieve capacity of?
The minimum blowdown for a spring loaded safety valve 10%
shall be of what percent of set pressure?
How is the main steam pressure gages tested? With an inspectors gage
Who is in charge of the code for any plumbing The nyc plumbing code
installations?
When will anchorage or guides be inspected? Annually
How many brass washout plugs does a miniature boiler 3 brass washout plugs, 1" in size
have?
How often is HP piping expansion joints inspected? Weekly
How long should a hydronic system be pressure tested 2 hours at no less than 100 psig
for?
How is a gage protected from excessive pressure? Shut off cock
Who is authorized to witness a test on a gas piping Plumbing inspector, architect, licensed PE, master plumber, agency by the DOB
system?
How should a remote disconnect be labeled? Remote control for burner
When is a fusible plug not needed to be installed on a Over 200 psig
boiler?
, When shall a power boiler with a MAWP over 400 be Pressure tested annually
tested?
What shall a design plan of a boiler and application Size, location, operating pressure + temperature of the pressure vessel and type +
contain but not limited to? specs of PRV
Who is responsible for maintaining the copies of the The welding agency and shall be available to the DOB
certified welder qualifications report?
Who needs to furnish a control diagram and boiler The installer
operation instructions?
Who will certify and calibrate all gages utilized for A testing operator
testing?
What shall be placed in between different joints and An approved adapter fitting
piping material?
What items are exempt from the reporting requirements? The seal welds of the tubes and the installation of back rings to man holes and
hand holes to boilers
Who will be under control for any welding done to a An engineer supervising a welding inspection agency acceptable to the DOB
high pressure tank?
At what pressure is it requires to have extra heavy valves 100 psig
installed?
The_____files an application for a boiler alteration? Inspector
How many safety valves does a boiler have with over 2
500 square feet of heating surface?
Gas fired boilers not exceeding 100 square feet of Single or double cone type of hood diverter in the stack
heating surface shall be provided with a?
A heater for either liquid fuels or other liquids harmful to Directly in the steam or water space within the boiler
the boiler shall not be installed?
Who is responsible for any spatial relationship between The installer of the last installation to correct a violation
tanks and gas services?
Who is responsible for the setting of operating and The Installing Company
safety controls?
With what safety fitting shall you protect high pressure Dual low water cut outs
steam and water boilers with?
Spring loaded safety valves have a total combined 100% of the max designed capacity of the boiler
relieve capacity of?
