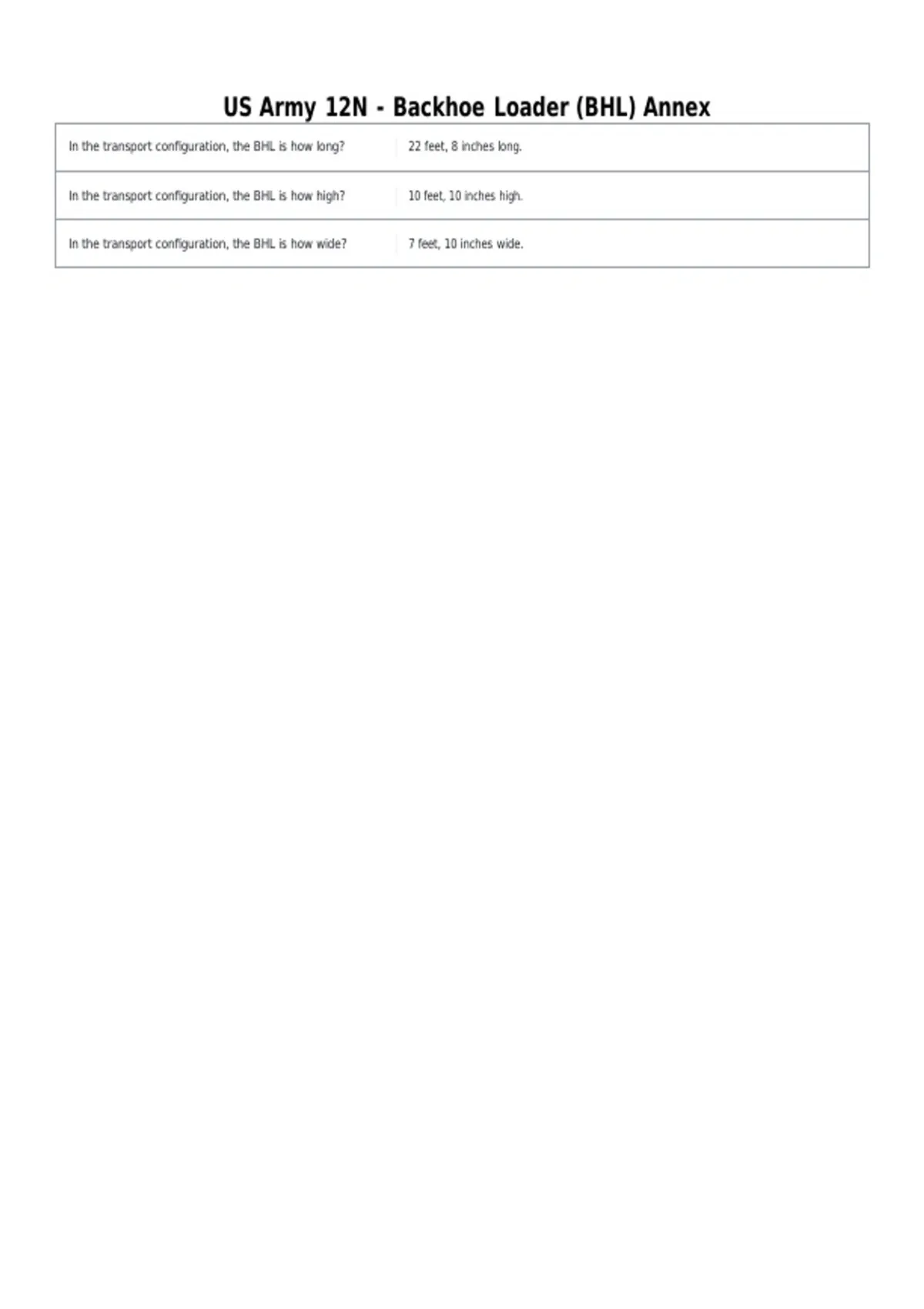

US Army 12N - Backhoe Loader (BHL) Annex
In the transport configuration, the BHL is how long? 22 feet, 8 inches long.
In the transport configuration, the BHL is how high? 10 feet, 10 inches high.
In the transport configuration, the BHL is how wide? 7 feet, 10 inches wide.
, What is the BHL's wet weight? (wet weight is including 18,500 pounds.
fuel)
What must you do when transporting the BHL to prevent You must tape the exhaust stack or loosen the exhaust stack and turn
it 180 the turbocharger from spinning? degrees.
The service brakes are referred to as WHISP. What does Wet disk, hydraulically actuated, inboard mounted, self adjusting, and the park
W.H.I.S.P. stand for? brake is manual.
On firm ground, the BHL has a 15% limitation on which 3 Uphill, downhill, & side
slopes. slopes?
What is the max towing speed? 5 mph.
You can tow a BHL no more than what distance? 1 mile.
You must keep all parts of the BHL a minimum of how 15
feet. many feet from all power sources?
Give 3 examples of power sources you must keep the BHL Overhead power lines, underground power lines, & buried
cables. away from.
To avoid over speeding the engine, what RPM must you 2,500 rpm.
not allow the engine to exceed?
Whilst operating on a slope, you do not move the BHL The backhoe bucket.
forward using what?
What is the maximum fording depth including wave 20 inches (51 cm)
height?
You mustn't enter water with a current velocity of more 7 feet / 2 meters per
second. than how many feet/meters per second?
You mustn't enter water with a current velocity of more 5 mph (8 km/h)
than how many miles/kilometers per hour?
What is the ground clearance at the backhoe frame? 13.7 inches.
What is the maximum travel speed in the manual mode on25.5 mph.
improvised roads?
What is the maximum travel speed in the automatic mode 25.9 mph.
on improvised roads?
What is the maximum travel speed when maneuvering 7
mph. across uneven terrain?
What is the maximum speed when traveling in 2nd gear? 8.1 mph.
