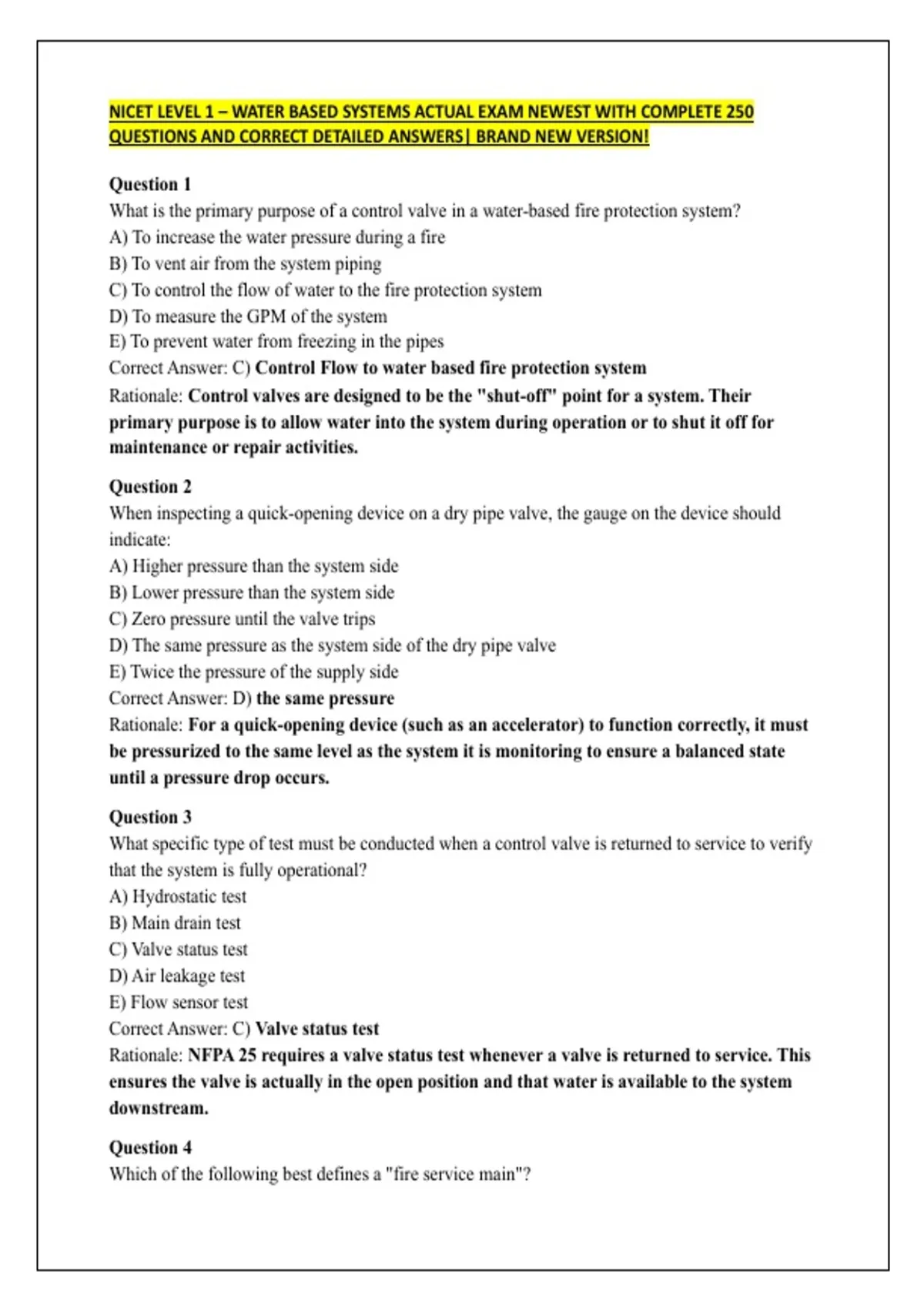

NICET LEVEL 1 – WATER BASED SYSTEMS ACTUAL EXAM NEWEST WITH COMPLETE 250
QUESTIONS AND CORRECT DETAILED ANSWERS| BRAND NEW VERSION!
Question 1
What is the primary purpose of a control valve in a water-based fire protection system?
A) To increase the water pressure during a fire
B) To vent air from the system piping
C) To control the flow of water to the fire protection system
D) To measure the GPM of the system
E) To prevent water from freezing in the pipes
Correct Answer: C) Control Flow to water based fire protection system
Rationale: Control valves are designed to be the "shut-off" point for a system. Their
primary purpose is to allow water into the system during operation or to shut it off for
maintenance or repair activities.
Question 2
When inspecting a quick-opening device on a dry pipe valve, the gauge on the device should
indicate:
A) Higher pressure than the system side
B) Lower pressure than the system side
C) Zero pressure until the valve trips
D) The same pressure as the system side of the dry pipe valve
E) Twice the pressure of the supply side
Correct Answer: D) the same pressure
Rationale: For a quick-opening device (such as an accelerator) to function correctly, it must
be pressurized to the same level as the system it is monitoring to ensure a balanced state
until a pressure drop occurs.
Question 3
What specific type of test must be conducted when a control valve is returned to service to verify
that the system is fully operational?
A) Hydrostatic test
B) Main drain test
C) Valve status test
D) Air leakage test
E) Flow sensor test
Correct Answer: C) Valve status test
Rationale: NFPA 25 requires a valve status test whenever a valve is returned to service. This
ensures the valve is actually in the open position and that water is available to the system
downstream.
Question 4
Which of the following best defines a "fire service main"?
, 2
A) The small pipe leading directly to a single sprinkler head
B) The pipe between a source of water and the base of the system riser
C) Any pipe installed within a concealed ceiling space
D) The main drain line for the building
E) The pipe that connects a fire department connection to the roof
Correct Answer: B) A pipe and its appurtenances on private property/ Pipe between a
source of water and the base of the system riser
Rationale: The fire service main is the underground or aboveground piping on private
property that delivers the water supply from the public main or tank to the fire protection
system's internal riser.
Question 5
In foam-water systems, what is the name of the system that utilizes a plate with a specific hole
size to pass a specific amount of foam concentrate at a set pressure?
A) Balanced Pressure Proportioning
B) In-line Inductor Proportioning
C) Orifice Plate Proportioning
D) Pressure Tank Proportioning
E) Vacuum Induction Proportioning
Correct Answer: C) Orifice Plate Proportioning
Rationale: Orifice plate proportioning uses a calibrated orifice (the plate) to create a specific
pressure drop and flow rate of foam concentrate into the water stream based on the
system's hydraulic design.
Question 6
During a visual inspection, which condition would require a sprinkler head to be replaced
immediately?
A) The head is older than 5 years
B) The head is dusty but not greasy
C) Evidence of corrosion on the head or its components
D) The head is a pendent type in a finished ceiling
E) The head has a brand name the inspector does not recognize
Correct Answer: C) Corrosion
Rationale: NFPA 25 states that any sprinkler showing signs of corrosion, loading, or
physical damage that could impede its operation must be replaced. Corrosion can prevent
the heat-sensitive element from releasing or the cap from popping off.
Question 7
What are the periodic inspection requirements for hangers and seismic braces installed in
concealed spaces?
A) They must be inspected every 5 years
, 3
B) They must be inspected annually using a flashlight
C) They must be inspected quarterly
D) Periodic inspection is not required
E) They only require inspection if the building is in a high-seismic zone
Correct Answer: D) Periodic inspection is not required
Rationale: NFPA 25 does not require the inspection of hangers or braces located in
concealed spaces (such as above a permanent drywall ceiling) because they are not
accessible without damaging the building's finish.
Question 8
According to NFPA 25, how often must system pressure gauges be replaced or tested against a
calibrated gauge?
A) Every 1 year
B) Every 3 years
C) Every 5 years
D) Every 10 years
E) Every 20 years
Correct Answer: C) 5 years/ 5 years
Rationale: Gauges are mechanical devices that can lose calibration over time. NFPA 25
requires them to be either replaced or verified for accuracy every 5 years.
Question 9
Where air pressure supervision is connected to a constantly attended location, how often must
the gauges be inspected?
A) Daily
B) Weekly
C) Monthly
D) Quarterly
E) Annually
Correct Answer: C) Monthly
Rationale: When air pressure is electronically supervised and monitored at a 24-hour
location, the physical inspection frequency of the gauges is reduced to a monthly
requirement.
Question 10
Sprinklers installed in areas that are inaccessible for safety considerations, such as those near
high-voltage process operations, must be inspected:
A) Once every 5 years
B) During each scheduled shutdown
C) Only if they have been activated
D) Never, they are exempt from inspection
