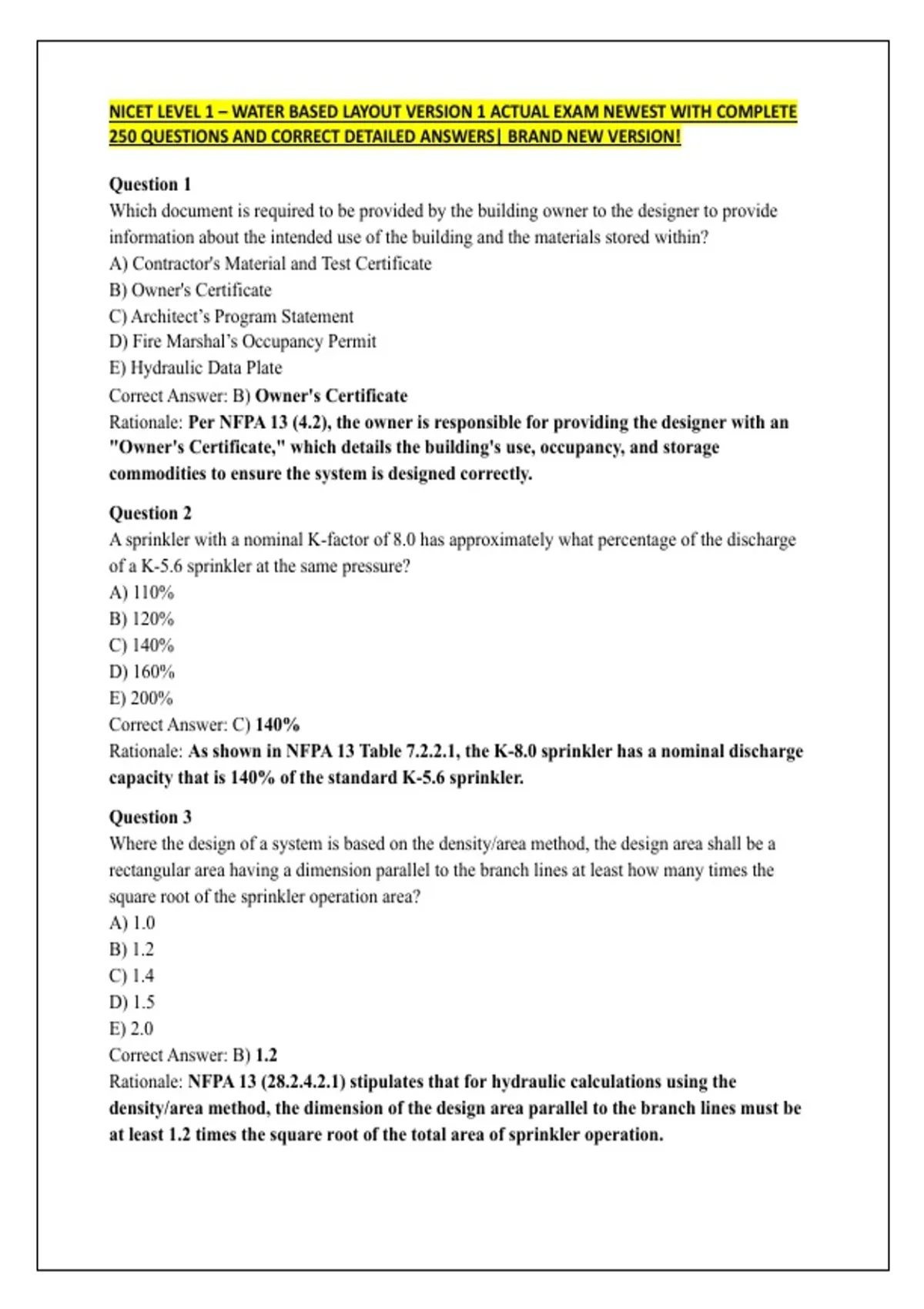

NICET LEVEL 1 – WATER BASED LAYOUT VERSION 1 ACTUAL EXAM NEWEST WITH COMPLETE 250 QUESTIONS AND CORRECT DETAILED ANSWERS| BRAND NEW VERSION!

NICET LEVEL 1 – WATER BASED LAYOUT VERSION 1 ACTUAL EXAM NEWEST WITH COMPLETE
250 QUESTIONS AND CORRECT DETAILED ANSWERS| BRAND NEW VERSION!

Question 1
Which document is required to be provided by the building owner to the designer to provide
information about the intended use of the building and the materials stored within?
A) Contractor's Material and Test Certificate
B) Owner's Certificate
C) Architect’s Program Statement
D) Fire Marshal’s Occupancy Permit
E) Hydraulic Data Plate
Correct Answer: B) Owner's Certificate
Rationale: Per NFPA 13 (4.2), the owner is responsible for providing the designer with an
"Owner's Certificate," which details the building's use, occupancy, and storage
commodities to ensure the system is designed correctly.

Question 2
A sprinkler with a nominal K-factor of 8.0 has approximately what percentage of the discharge
of a K-5.6 sprinkler at the same pressure?
A) 110%
B) 120%
C) 140%
D) 160%
E) 200%
Correct Answer: C) 140%
Rationale: As shown in NFPA 13 Table 7.2.2.1, the K-8.0 sprinkler has a nominal discharge
capacity that is 140% of the standard K-5.6 sprinkler.

Question 3
Where the design of a system is based on the density/area method, the design area shall be a
rectangular area having a dimension parallel to the branch lines at least how many times the
square root of the sprinkler operation area?
A) 1.0
B) 1.2
C) 1.4
D) 1.5
E) 2.0
Correct Answer: B) 1.2
Rationale: NFPA 13 (28.2.4.2.1) stipulates that for hydraulic calculations using the
density/area method, the dimension of the design area parallel to the branch lines must be
at least 1.2 times the square root of the total area of sprinkler operation.

, 2



Question 4
In the International Building Code (IBC), an intermediate level between the floor and ceiling of
any story is defined as a:
A) Crawl space
B) Penthouse
C) Mezzanine
D) Attic
E) Balcony
Correct Answer: C) Mezzanine
Rationale: According to IBC Section 202, a mezzanine is an intermediate level or levels
between the floor and ceiling of any story.
Question 5
When providing water supply capacity information for a fire protection design, which of the
following must be included?
A) Pipe manufacturer and date of installation
B) Flow location and residual pressure
C) Color of the hydrant and location of the nearest valve
D) Name of the water treatment plant operator
E) The depth of the water main below grade
Correct Answer: B) Flow location and residual pressure
Rationale: NFPA 13 (4.5.1) requires water supply information to include the static pressure,
residual pressure, and the flow location to accurately calculate the available water for the
system.

Question 6
Which NFPA standard is the "Standard for the Installation of Standpipe and Hose Systems"?
A) NFPA 13
B) NFPA 13R
C) NFPA 14
D) NFPA 20
E) NFPA 25
Correct Answer: C) NFPA 14
Rationale: NFPA 14 is the industry standard governing the design and installation of
standpipe and hose systems.

Question 7
For a fire protection facility containing 400 sprinklers, what is the minimum number of spare
sprinklers required to be maintained in the stock?
A) 6
B) 12

, 3



C) 24
D) 36
E) 48
Correct Answer: B) 12
Rationale: NFPA 13 (16.2.7.5) requires systems with 300 to 1,000 sprinklers to maintain a
minimum of 12 spare sprinklers of each type and temperature rating used.

Question 8
In hydraulic calculations, which of the following pipe materials typically has the lowest C-factor
(least amount of friction loss)?
A) Black steel (Dry)
B) Black steel (Wet)
) Cast iron
D) Plastic (CPVC)
E) Ductile iron
Correct Answer: D) Plastic
Rationale: Per NFPA 13 Table 28.2.4.8.1, CPVC/Plastic pipe has a C-value of 150, which
represents the smoothest internal surface and therefore the least friction loss compared to
metallic pipes.

Question 9
What class of standpipe system is primarily intended for use by trained personnel and fire
departments, providing 2-1/2 inch hose connections?
A) Class I
B) Class II
C) Class III
D) Class IV
E) Automatic Wet
Correct Answer: A) Class I
Rationale: Per NFPA 14 (3.3.22.1), a Class I system provides 2-1/2 in. hose stations for use
by fire departments and those trained in handling heavy fire streams.

Question 10
In commodity classification, all of the following materials are classified as Group C plastics
EXCEPT:
A) Melamine
B) Fluoroplastics
C) Phenolic
D) Polystyrene
E) Urea formaldehyde
Correct Answer: D) Polystyrene

, 4



Rationale: Polystyrene is a Group A plastic because of its high heat release rate. Group C
plastics (NFPA 13-20.4.7) include less combustible plastics like Phenolic and Fluoroplastics.

Question 11
An occupancy with very high quantity and combustibility of contents, where rapidly developing
fires with high rates of heat release are expected, but with little or no combustible liquids, is
classified as:
A) Ordinary Hazard (Group 1)
B) Ordinary Hazard (Group 2)
C) Extra Hazard (Group 1)
D) Extra Hazard (Group 2)
E) Special Occupancy
Correct Answer: C) Extra Hazard (Group 1)
Rationale: NFPA 13 (3.3.141.1) defines Extra Hazard Group 1 as occupancies with very high
combustibility and high heat release but little or no flammable/combustible liquids.

Question 12
All threaded pipe and fittings used in water-based fire protection systems must have threads cut
to which specific standard?
A) ASTM A53
B) ASME B1.20.1
C) NFPA 70
D) AWWA C110
E) ANSI B16.1
Correct Answer: B) ASME B1.20.1
Rationale: NFPA 13 (7.4.1) requires that all threaded pipe and fittings have threads cut to
the ASME B1.20.1 Pipe Threads, General Purpose standard.

Question 13
During a water flow test, what coefficient (C) is used to calculate the discharge of a hydrant
outlet that is smooth and well-rounded?
A) 0.70
B) 0.80
C) 0.90
D) 0.95
E) 1.0
Correct Answer: C) 0.90
Rationale: According to NFPA 291 (Figure 4.9.1), an outlet that is smooth and well-rounded
is assigned a coefficient of 0.90 for flow calculations.
