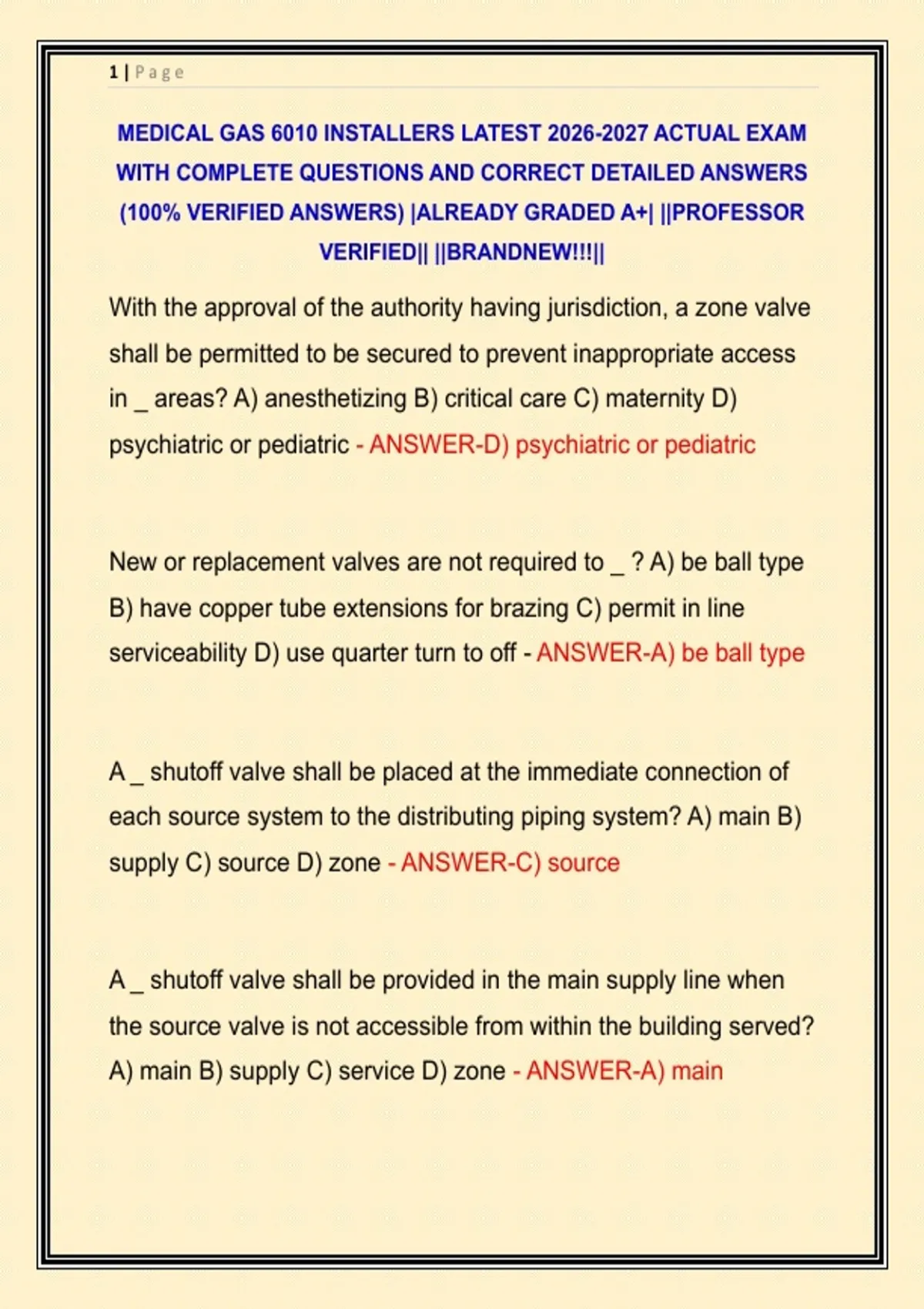

1|Page
MEDICAL GAS 6010 INSTALLERS LATEST 2026-2027 ACTUAL EXAM
WITH COMPLETE QUESTIONS AND CORRECT DETAILED ANSWERS
(100% VERIFIED ANSWERS) |ALREADY GRADED A+| ||PROFESSOR
VERIFIED|| ||BRANDNEW!!!||
With the approval of the authority having jurisdiction, a zone valve
shall be permitted to be secured to prevent inappropriate access
in _ areas? A) anesthetizing B) critical care C) maternity D)
psychiatric or pediatric - ANSWER-D) psychiatric or pediatric
New or replacement valves are not required to _ ? A) be ball type
B) have copper tube extensions for brazing C) permit in line
serviceability D) use quarter turn to off - ANSWER-A) be ball type
A _ shutoff valve shall be placed at the immediate connection of
each source system to the distributing piping system? A) main B)
supply C) source D) zone - ANSWER-C) source
A _ shutoff valve shall be provided in the main supply line when
the source valve is not accessible from within the building served?
A) main B) supply C) service D) zone - ANSWER-A) main
,2|Page
_ valves shall be installed to allow modification of lateral branch
piping from a main or riser without shutting down the entire main,
riser, or facility? A) main B) riser C) service D) zone - ANSWER-
C) service
Regardless of how many zone valve boxes are installed on a
lateral branch off a riser, only one _ valve shall be required for
each branch? A) main B) riser C) service D) zone - ANSWER-C)
service
_ valves shall not be located in a room with station outlets or
inlets that it controls? A) main B) service C) source D) zone -
ANSWER-D) zone
_ valves shall be readily operable from a standing position in the
corridor on the same floor they serve? A) in-line B) relief C)
service D) zone - ANSWER-D) zone
Immediately outside of each vital life-support, critical care, and
anesthetizing location, there shall be a _ valve for each medical
,3|Page
gas, vacuum, and WAGD system? A) fire extinguisher B) local
alarm C) relief valve D) zone - ANSWER-D) zone
Operational _ shutoff valves shall be permitted to be installed to
isolate or shut off piping for servicing of individual rooms or
areas? A) in-line B) main line C) riser D) zone - ANSWER-A) in-
line
In-line check valves are not required to have _ ? A) brazed
extensions B) in-line serviceability C) threaded end connections
D) threaded purge ports - ANSWER-C) threaded end connections
Each station outlet/inlet for medical gasses and vacuums shall be
_ ? A) gas-specific B) interchangeable C) quick-coupler D)
threaded - ANSWER-A) gas specific
The factory installed tuning on station outlets and inlets shall
extend no further than _ in. from the body of the terminal? A) 6 B)
8 C) 10 D) 12 - ANSWER-B) 8
, 4|Page
Factory installed inlet tubing on station outlets shall not be less
than _ NPS? A) 1/4 B) 3/8 C) 1/2 D) 5/8 - ANSWER-A) 1/4
Factory installed outlet tubing on station inlets shall not be less
than _ NPS? A) 1/8 B) 3/16 C) 1/4 D) 3/8 - ANSWER-D 3/8
Station outlets that operate at a pressure in excess of _ PSI shall
be either D.I.S.S. or be designed to relieve pressure prior to
removal of adapter? A) 50 B) 60 C) 70 D) 80 - ANSWER-D) 80
The manufacturer is allowed a decay of less than _ % in 24 hours
during the standing pressure test? A) 3 B) 2 C) 1.5 D) 1.0 -
ANSWER-D) 1.0
The _ shall provide documentation certifying the performance and
successful completion of all pressure testing for a manufactured
assembly? A) engineer B) installer C) manufacturer D) owner -
ANSWER-C) manufacturer
MEDICAL GAS 6010 INSTALLERS LATEST 2026-2027 ACTUAL EXAM
WITH COMPLETE QUESTIONS AND CORRECT DETAILED ANSWERS
(100% VERIFIED ANSWERS) |ALREADY GRADED A+| ||PROFESSOR
VERIFIED|| ||BRANDNEW!!!||
With the approval of the authority having jurisdiction, a zone valve
shall be permitted to be secured to prevent inappropriate access
in _ areas? A) anesthetizing B) critical care C) maternity D)
psychiatric or pediatric - ANSWER-D) psychiatric or pediatric
New or replacement valves are not required to _ ? A) be ball type
B) have copper tube extensions for brazing C) permit in line
serviceability D) use quarter turn to off - ANSWER-A) be ball type
A _ shutoff valve shall be placed at the immediate connection of
each source system to the distributing piping system? A) main B)
supply C) source D) zone - ANSWER-C) source
A _ shutoff valve shall be provided in the main supply line when
the source valve is not accessible from within the building served?
A) main B) supply C) service D) zone - ANSWER-A) main
,2|Page
_ valves shall be installed to allow modification of lateral branch
piping from a main or riser without shutting down the entire main,
riser, or facility? A) main B) riser C) service D) zone - ANSWER-
C) service
Regardless of how many zone valve boxes are installed on a
lateral branch off a riser, only one _ valve shall be required for
each branch? A) main B) riser C) service D) zone - ANSWER-C)
service
_ valves shall not be located in a room with station outlets or
inlets that it controls? A) main B) service C) source D) zone -
ANSWER-D) zone
_ valves shall be readily operable from a standing position in the
corridor on the same floor they serve? A) in-line B) relief C)
service D) zone - ANSWER-D) zone
Immediately outside of each vital life-support, critical care, and
anesthetizing location, there shall be a _ valve for each medical
,3|Page
gas, vacuum, and WAGD system? A) fire extinguisher B) local
alarm C) relief valve D) zone - ANSWER-D) zone
Operational _ shutoff valves shall be permitted to be installed to
isolate or shut off piping for servicing of individual rooms or
areas? A) in-line B) main line C) riser D) zone - ANSWER-A) in-
line
In-line check valves are not required to have _ ? A) brazed
extensions B) in-line serviceability C) threaded end connections
D) threaded purge ports - ANSWER-C) threaded end connections
Each station outlet/inlet for medical gasses and vacuums shall be
_ ? A) gas-specific B) interchangeable C) quick-coupler D)
threaded - ANSWER-A) gas specific
The factory installed tuning on station outlets and inlets shall
extend no further than _ in. from the body of the terminal? A) 6 B)
8 C) 10 D) 12 - ANSWER-B) 8
, 4|Page
Factory installed inlet tubing on station outlets shall not be less
than _ NPS? A) 1/4 B) 3/8 C) 1/2 D) 5/8 - ANSWER-A) 1/4
Factory installed outlet tubing on station inlets shall not be less
than _ NPS? A) 1/8 B) 3/16 C) 1/4 D) 3/8 - ANSWER-D 3/8
Station outlets that operate at a pressure in excess of _ PSI shall
be either D.I.S.S. or be designed to relieve pressure prior to
removal of adapter? A) 50 B) 60 C) 70 D) 80 - ANSWER-D) 80
The manufacturer is allowed a decay of less than _ % in 24 hours
during the standing pressure test? A) 3 B) 2 C) 1.5 D) 1.0 -
ANSWER-D) 1.0
The _ shall provide documentation certifying the performance and
successful completion of all pressure testing for a manufactured
assembly? A) engineer B) installer C) manufacturer D) owner -
ANSWER-C) manufacturer
