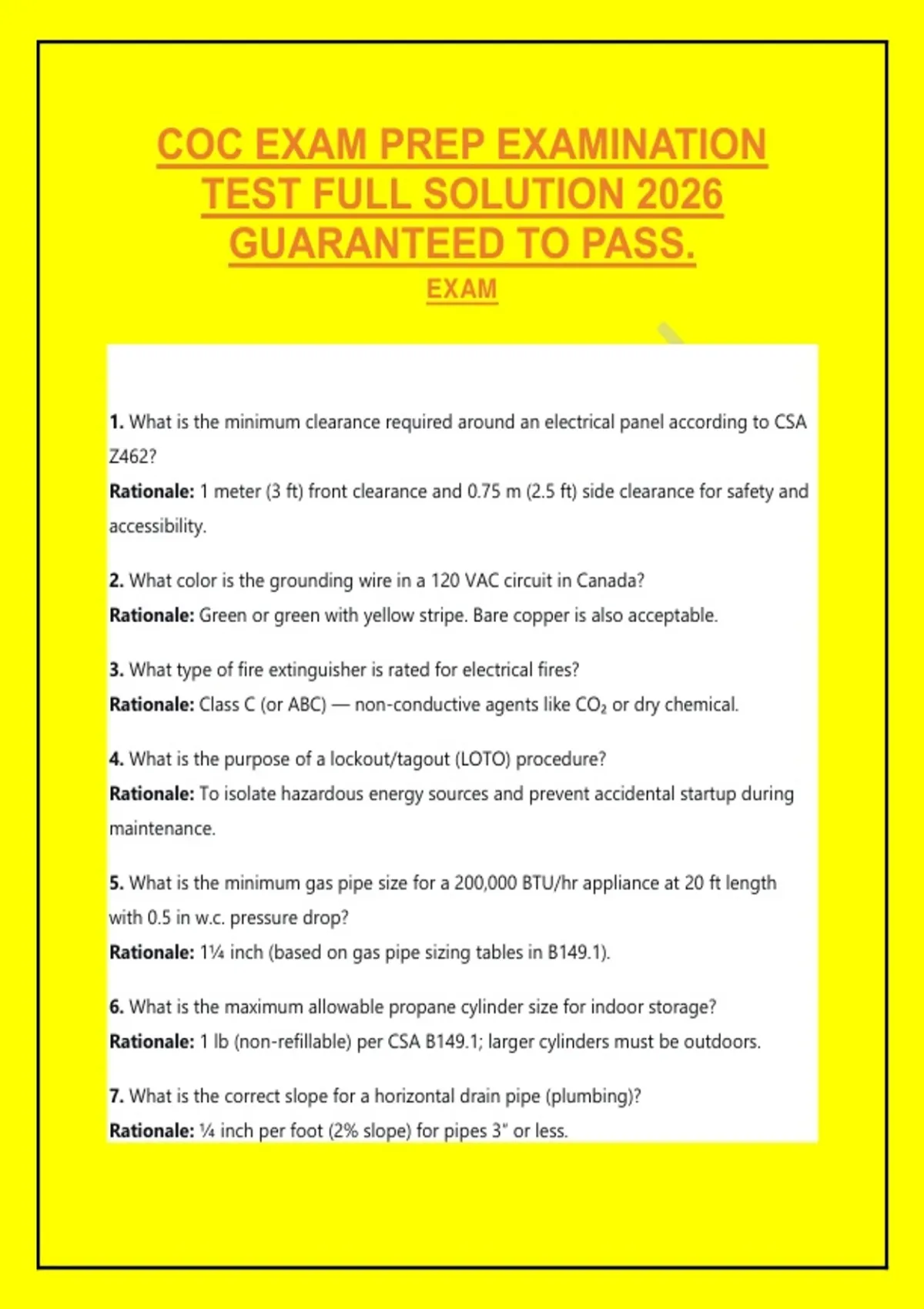

COC EXAM PREP EXAMINATION
TEST FULL SOLUTION 2026
GUARANTEED TO PASS.
EXAM
1. What is the minimum clearance required around an electrical panel according to CSA
Z462?
Rationale: 1 meter (3 ft) front clearance and 0.75 m (2.5 ft) side clearance for safety and
accessibility.
2. What color is the grounding wire in a 120 VAC circuit in Canada?
Rationale: Green or green with yellow stripe. Bare copper is also acceptable.
3. What type of fire extinguisher is rated for electrical fires?
Rationale: Class C (or ABC) — non-conductive agents like CO₂ or dry chemical.
4. What is the purpose of a lockout/tagout (LOTO) procedure?
Rationale: To isolate hazardous energy sources and prevent accidental startup during
maintenance.
5. What is the minimum gas pipe size for a 200,000 BTU/hr appliance at 20 ft length
with 0.5 in w.c. pressure drop?
Rationale: 1¼ inch (based on gas pipe sizing tables in B149.1).
6. What is the maximum allowable propane cylinder size for indoor storage?
Rationale: 1 lb (non-refillable) per CSA B149.1; larger cylinders must be outdoors.
7. What is the correct slope for a horizontal drain pipe (plumbing)?
Rationale: ¼ inch per foot (2% slope) for pipes 3″ or less.
, 8. What is the maximum distance a gas appliance can be from its vent terminal?
Rationale: Depends on appliance type; for Category I appliances, vent connector length
is limited to 75% of the total vent height.
9. What is the minimum combustible clearance for a single-wall vent connector?
Rationale: 6 inches (150 mm) for single-wall; 1 inch for Type B vent.
10. What is the purpose of a sediment trap (drip leg) in a gas line?
Rationale: To catch debris and moisture before they enter the appliance gas valve.
11. What is the maximum allowable pressure for a natural gas system in a residential
building?
Rationale: ½ psi (14 inches w.c.) unless reduced by a regulator.
12. What is the minimum combustion air opening size for a confined space with two
openings?
Rationale: 1 square inch per 1,000 BTU/hr total input, with minimum 100 sq in per
opening.
13. What type of solder is required for potable water systems?
Rationale: Lead-free solder (≤0.2% lead).
14. What is the purpose of a backflow preventer?
Rationale: To prevent contaminated water from flowing back into the potable water
supply.
15. What is the minimum burial depth for a gas line under a driveway?
Rationale: 18 inches (450 mm) for polyethylene; 12 inches for steel.
16. What is the maximum allowable carbon monoxide (CO) level in a flue?
Rationale: 100 ppm air-free for natural gas appliances (typical standard).
17. What is the purpose of a barometric damper on an oil-fired appliance?
Rationale: To maintain constant draft in the chimney.
TEST FULL SOLUTION 2026
GUARANTEED TO PASS.
EXAM
1. What is the minimum clearance required around an electrical panel according to CSA
Z462?
Rationale: 1 meter (3 ft) front clearance and 0.75 m (2.5 ft) side clearance for safety and
accessibility.
2. What color is the grounding wire in a 120 VAC circuit in Canada?
Rationale: Green or green with yellow stripe. Bare copper is also acceptable.
3. What type of fire extinguisher is rated for electrical fires?
Rationale: Class C (or ABC) — non-conductive agents like CO₂ or dry chemical.
4. What is the purpose of a lockout/tagout (LOTO) procedure?
Rationale: To isolate hazardous energy sources and prevent accidental startup during
maintenance.
5. What is the minimum gas pipe size for a 200,000 BTU/hr appliance at 20 ft length
with 0.5 in w.c. pressure drop?
Rationale: 1¼ inch (based on gas pipe sizing tables in B149.1).
6. What is the maximum allowable propane cylinder size for indoor storage?
Rationale: 1 lb (non-refillable) per CSA B149.1; larger cylinders must be outdoors.
7. What is the correct slope for a horizontal drain pipe (plumbing)?
Rationale: ¼ inch per foot (2% slope) for pipes 3″ or less.
, 8. What is the maximum distance a gas appliance can be from its vent terminal?
Rationale: Depends on appliance type; for Category I appliances, vent connector length
is limited to 75% of the total vent height.
9. What is the minimum combustible clearance for a single-wall vent connector?
Rationale: 6 inches (150 mm) for single-wall; 1 inch for Type B vent.
10. What is the purpose of a sediment trap (drip leg) in a gas line?
Rationale: To catch debris and moisture before they enter the appliance gas valve.
11. What is the maximum allowable pressure for a natural gas system in a residential
building?
Rationale: ½ psi (14 inches w.c.) unless reduced by a regulator.
12. What is the minimum combustion air opening size for a confined space with two
openings?
Rationale: 1 square inch per 1,000 BTU/hr total input, with minimum 100 sq in per
opening.
13. What type of solder is required for potable water systems?
Rationale: Lead-free solder (≤0.2% lead).
14. What is the purpose of a backflow preventer?
Rationale: To prevent contaminated water from flowing back into the potable water
supply.
15. What is the minimum burial depth for a gas line under a driveway?
Rationale: 18 inches (450 mm) for polyethylene; 12 inches for steel.
16. What is the maximum allowable carbon monoxide (CO) level in a flue?
Rationale: 100 ppm air-free for natural gas appliances (typical standard).
17. What is the purpose of a barometric damper on an oil-fired appliance?
Rationale: To maintain constant draft in the chimney.
